Description

Price

1

CARBURETOR ASSY 1

4X4-14101-00-00

$267.99

2

GASKET, FLOAT CHAMBER

3L5-14184-00-00

$30.99

3

JET, MAIN (# 65)

620-14231-13-00

$10.99

3

JET, MAIN (# 70)

620-14231-14-00

$9.99

3

JET, MAIN (# 75)

620-14231-15-00

$10.99

4

NOZZLE, MAIN (E-2)

3L7-14141-12-00

$34.99

5

JET, PILOT (# 40)

3L5-14142-40-00

$9.99

6

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

7

GASKET, MIXING CHAMBER

3L5-14198-00-00

$8.99

8

CABLE ADJUST SCREW SET

17L-14106-00-00

$8.99

9

CAP

1R0-14169-00-00

$9.99

10

FLOAT

3L6-14185-01-00

$67.99

11

NEEDLE VALVE ASSY

3L5-14190-01-00

$36.99

12

PIN, FLOAT

603-14186-00-00

$7.99

13

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

$82.99

14

NEEDLE SET

36R-1490J-00-00

Unavailable

15

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

16

THROTTLE SCREW SET

36R-14103-00-00

Unavailable

17

PLUNGER, STARTER

58E-14171-00-00

Unavailable

18

SPRING, PLUNGER

509-14135-00-00

Unavailable

19

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

AIR SCREW SET

36R-14104-00-00

Unavailable

22

NUT, HEXAGON (663)

95380-05600-00

Unavailable

23

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

24

HOSE (L200)

90445-05N13-00

Unavailable

25

AIR SCREW SET

36R-14104-00-00

Unavailable

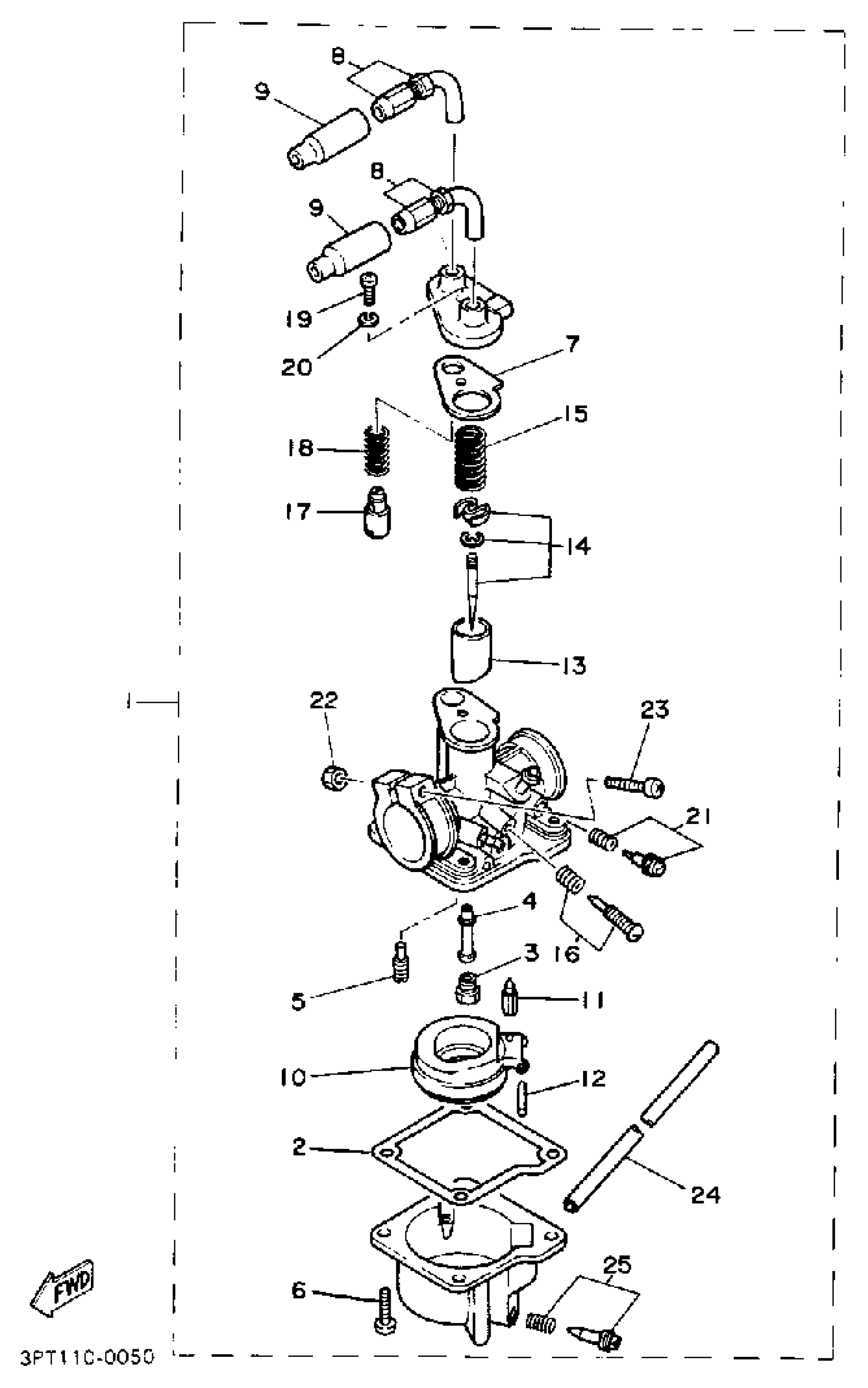

Yamaha PW50B (Y-ZINGER) 1991 CARBURETOR Diagram

CARBURETOR ASSY 1

GASKET, FLOAT CHAMBER

JET, MAIN (# 65)

JET, MAIN (# 70)

JET, MAIN (# 75)

NOZZLE, MAIN (E-2)

JET, PILOT (# 40)

SCREW, PAN HEAD(GA5)

GASKET, MIXING CHAMBER

CABLE ADJUST SCREW SET

CAP

FLOAT

NEEDLE VALVE ASSY

PIN, FLOAT

VALVE, THROTTLE (CA4.0)

NEEDLE SET

SPRING, THROTTLE VALVE

THROTTLE SCREW SET

PLUNGER, STARTER

SPRING, PLUNGER

SCREW,PAN HEAD (646)

YBS67-5 WASHER, SPRING

AIR SCREW SET

NUT, HEXAGON (663)

SCREW, PAN HEAD(6E0)

HOSE (L200)

AIR SCREW SET
