Description

Price

1

FUEL TANK COMP.

3PT-24110-00-00

Unavailable

2

CAP ASSY

2FG-24610-10-00

$64.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

FUEL COCK ASSY 1

4X4-24500-11-00

$29.99

5

GROMMET (4V1)

90480-18290-00

$8.49

6

WASHER, PLATE

90201-06747-00

$8.49

7

COLLAR (10V)

90387-077F4-00

$9.49

8

BOLT

97007-06085-00

Unavailable

9

NUT (J17)

95380-06800-00

$8.49

10

DAMPER, LOCATING 1

3R0-24181-00-00

$8.99

11

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

12

PIPE, FUEL 1

5PG-24311-10-00

$6.99

13

CLIP (4X4)

90467-12052-00

$9.49

14

HOSE (L420)

90445-092K1-00

$12.49

15

CLIP 101235600

90467-08003-00

$10.49

16

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

17

GRAPHIC, FUEL TNK 1

3PT-24244-00-00

Unavailable

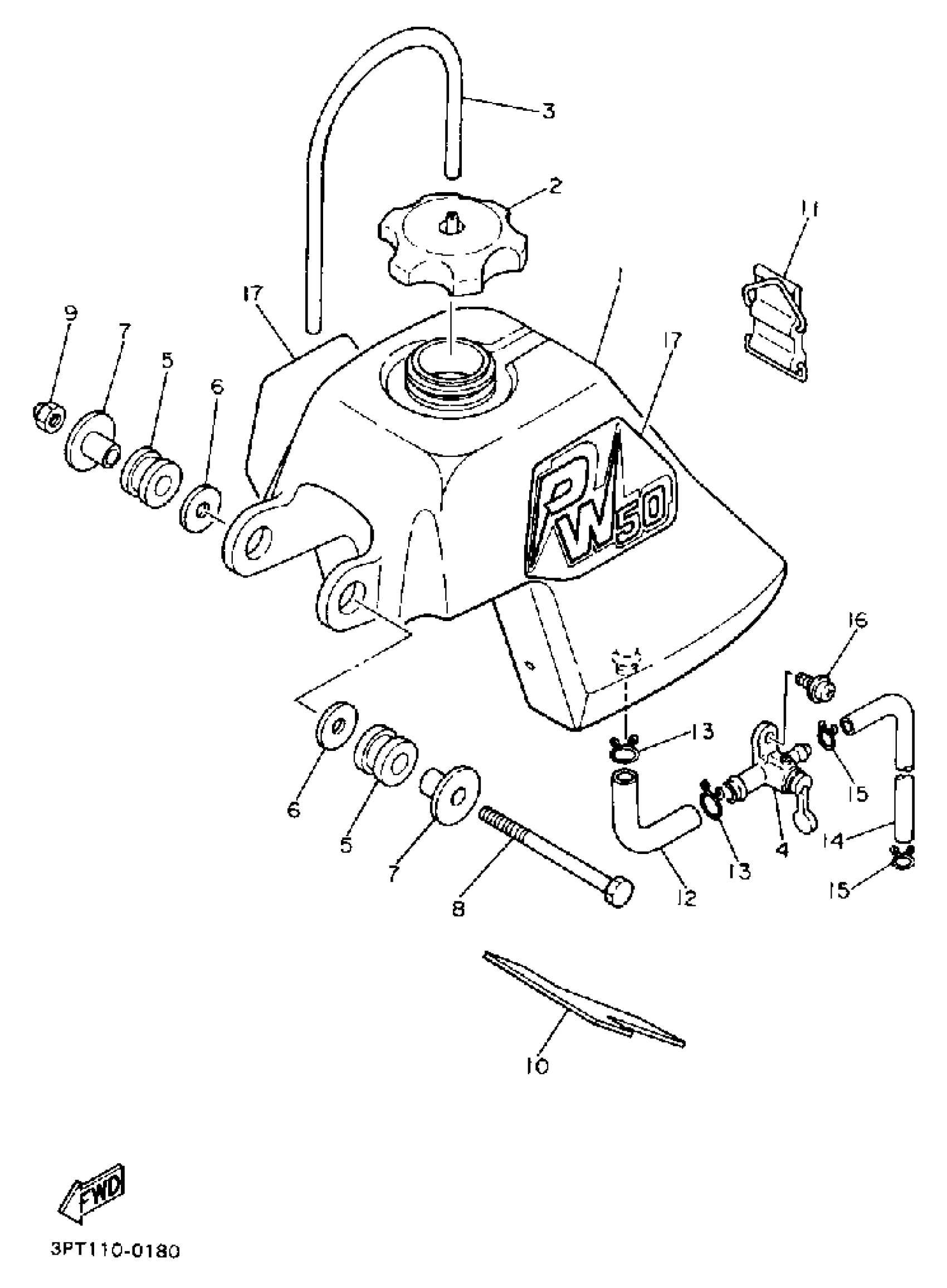

Yamaha PW50A (Y-ZINGER) 1990 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L420)

FUEL COCK ASSY 1

GROMMET (4V1)

WASHER, PLATE

COLLAR (10V)

BOLT

NUT (J17)

DAMPER, LOCATING 1

BAND, TANK FITTING 1

PIPE, FUEL 1

CLIP (4X4)

HOSE (L420)

CLIP 101235600

SCREW, WITH WASHER (517).

GRAPHIC, FUEL TNK 1
