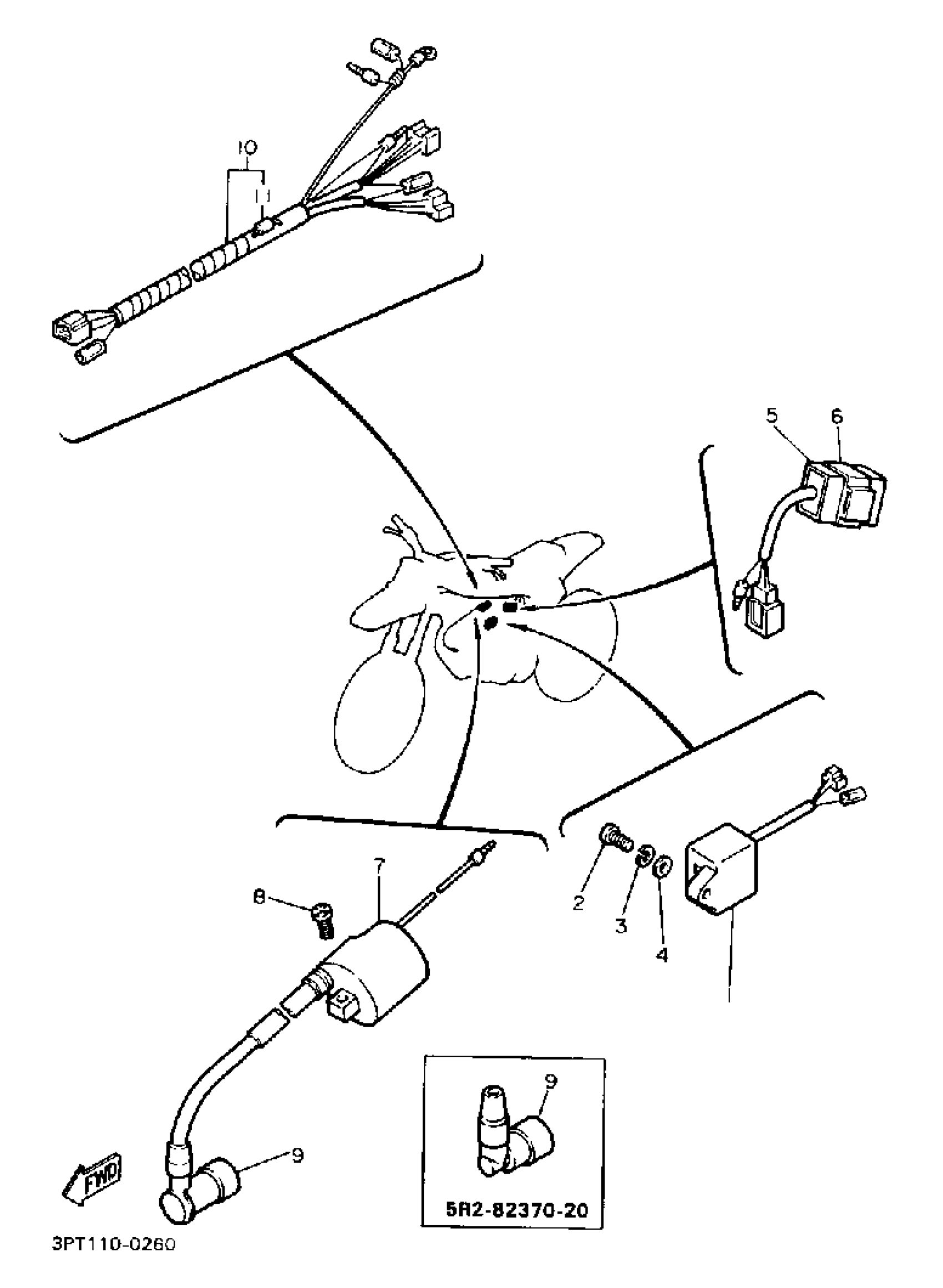

Yamaha PW50A (Y-ZINGER) 1990 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSY

3L4-85540-M1-00

Unavailable

2

SCREW, PAN

98507-06014-00

$5.76

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

CONTROL UNIT ASSEMBLY

4X4-85590-M0-00

Unavailable

6

BAND

4J2-85546-00-00

$9.79

7

IGNITION COIL ASSY

4RP-82310-26-00

Unavailable

8

SCREW, PAN

98507-06014-00

$5.76

9

PLUG CAP ASSY

56J-82370-00-00

$40.46

9

PLUG CAP ASSY

166-82370-20-00

$30.77

10

WIRE HARNESS ASSEMBLY

4X4-82590-20-00

Unavailable

11

RECTIFIER 2

3K7-81980-00-00

Unavailable
