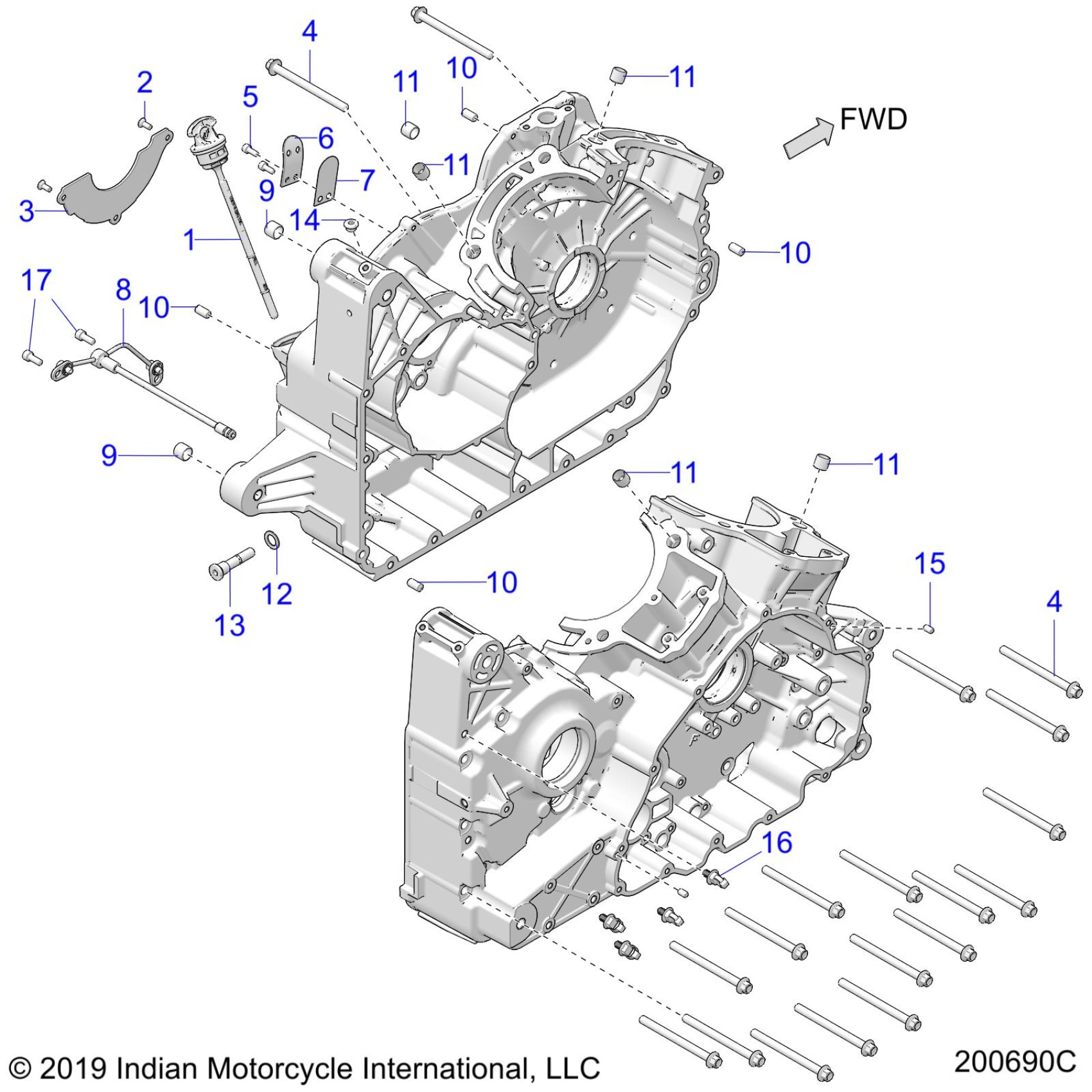

Polaris PURSUIT DARK HORSE / DARK HORSE PREMIUM (R01) - N22LDDRRA8/B/C/H/B8/B/C/H/C8/B/C/H/E8/B/C/H/FRRA4/8/B/C/H/P/B4/8/B/C/H/P/C4/8/B/C/H/P/E4/8/B/C/H/P ENGINE, CRANKCASE - N22LDDRR/LDFRR ALL OPTIONS (200690C) Diagram

ASM., CRANKCASE,COMPLETE (INCL. 9-11,14,15) (SEE "ENGINE, CRANKCASE BEARINGS")

1205971-650

Unavailable

DIPSTICK-OIL FILL,M30 [INCL O-RING]

5458347

Unavailable

O-RING-1.11X1.38X.138

5413205

Unavailable

SCREW-FLHD-M5X0.8X12 10.9 P&O

7517255

$7.19

SHIELD-BALANCE SHAFT

5139995

Unavailable

SCREW-HXFL-M8X1.25X100 10.9 ZPC

7520915

$3.99

SCREW-HXFL-M8X1.25X100 10.9 ZPC

7520915

$3.99

SCREW-SH-M5X0.8X12 10.9 ZPC D204

7517276

$7.19

PLATE,REED BACKER [No Longer Available]

5131791

Unavailable

PLATE-REED VALVE

5140436

Unavailable

RAIL-TRANSMISSION FEED,1.5MM

1206106

Unavailable

DOWEL-HOLLOW, M12

7662129

$10.39

DOWEL-HOLLOW, M12

7662129

$10.39

PIN-DOWELL,M8X16

7661127

$12.94

PIN-DOWELL,M8X16

7661127

$12.94

PIN-DOWELL,M8X16

7661127

$12.94

PIN-DOWELL,M8X16

7661127

$12.94

DWL-HOLLOW,M14X12MM

7662265

Unavailable

DWL-HOLLOW,M14X12MM

7662265

Unavailable

DWL-HOLLOW,M14X12MM

7662265

Unavailable

DWL-HOLLOW,M14X12MM

7662265

Unavailable

DWL-HOLLOW,M14X12MM

7662265

Unavailable

WASHER-19X12X1.3,COPPER

5812232

$1.59

PLUG, OIL DRAIN [PLUG INCLUDES O-RING]

2521920

Unavailable

O-RING,DRAINPLUG, 6.07MMX1.78MM

5417503

Unavailable

PLUG-HEX SCKT,W/O-RING,M10X1

7052640

$7.19

PIN-DOWEL,M6X10

5132835

$2.39

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.19
