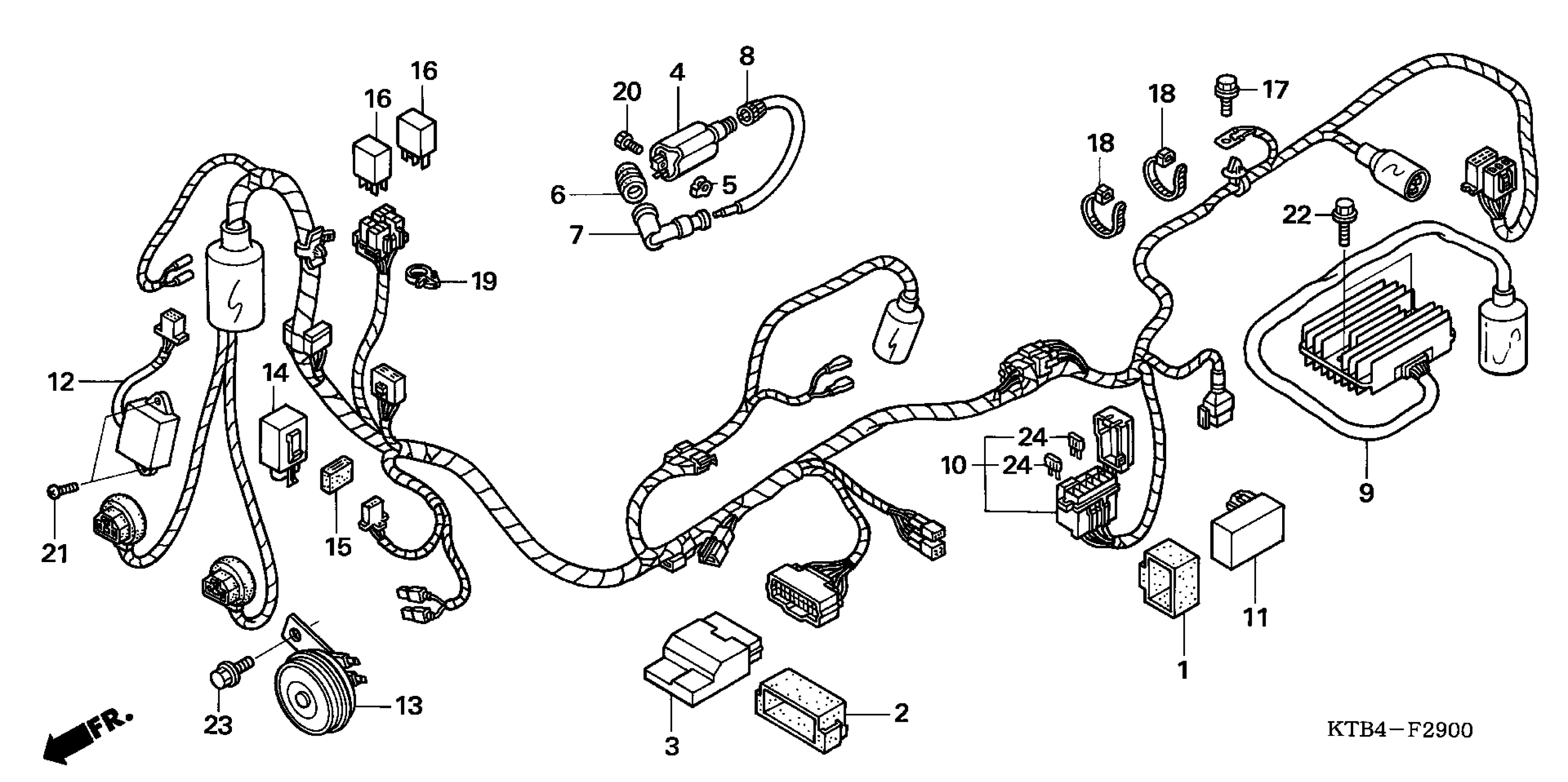

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KF0-000.

30401-KF0-010

$6.31

2

CUSHION, SPARK UNIT

30405-MBT-610

Unavailable

3

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-KFG-J00.

30410-KFG-J01

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-KFG-J01

Unavailable

4

COIL, IGNITION

30500-ML7-013

$88.14

5

SPACER, IGNITION COIL

30520-ML7-000

$3.77

6

SEAL, IGNITION TERMINAL

30605-KM1-000

$9.48

7

CAP ASSY., NOISE SUPPRESSOR

30700-KG8-901

Unavailable

8

WIRE ASSY., IGNITION

30731-KFG-000

Unavailable

9

RECTIFIER ASSY., REGULATOR

31600-KTB-771

Unavailable

10

WIRE HARNESS

32100-KTB-771

Unavailable

11

TIMER UNIT, FUEL PUMP

36110-KPB-J11

Unavailable

12

DRIVE UNIT, LED

37565-KTB-003

Unavailable

13

HORN (HIGH)

38110-MEF-003

Unavailable

14

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

15

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

16

RELAY, POWER (MICRO ISO 4P) This part replaces 38501-MCS-G00.

38501-MCS-G01

$10.76

16

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

17

BOLT, GROUND (6X16)

90149-SE0-003

$7.20

18

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

19

CLIP, HARNESS (NIFCO)

90659-734-K51

$2.13

20

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

21

SCREW, PAN (4X14)

93500-04014-0A

$1.49

22

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

23

BOLT, FLANGE (8X12)

95701-08012-08

$1.80

24

FUSE, MINI (10A)

98200-41000

$1.49
