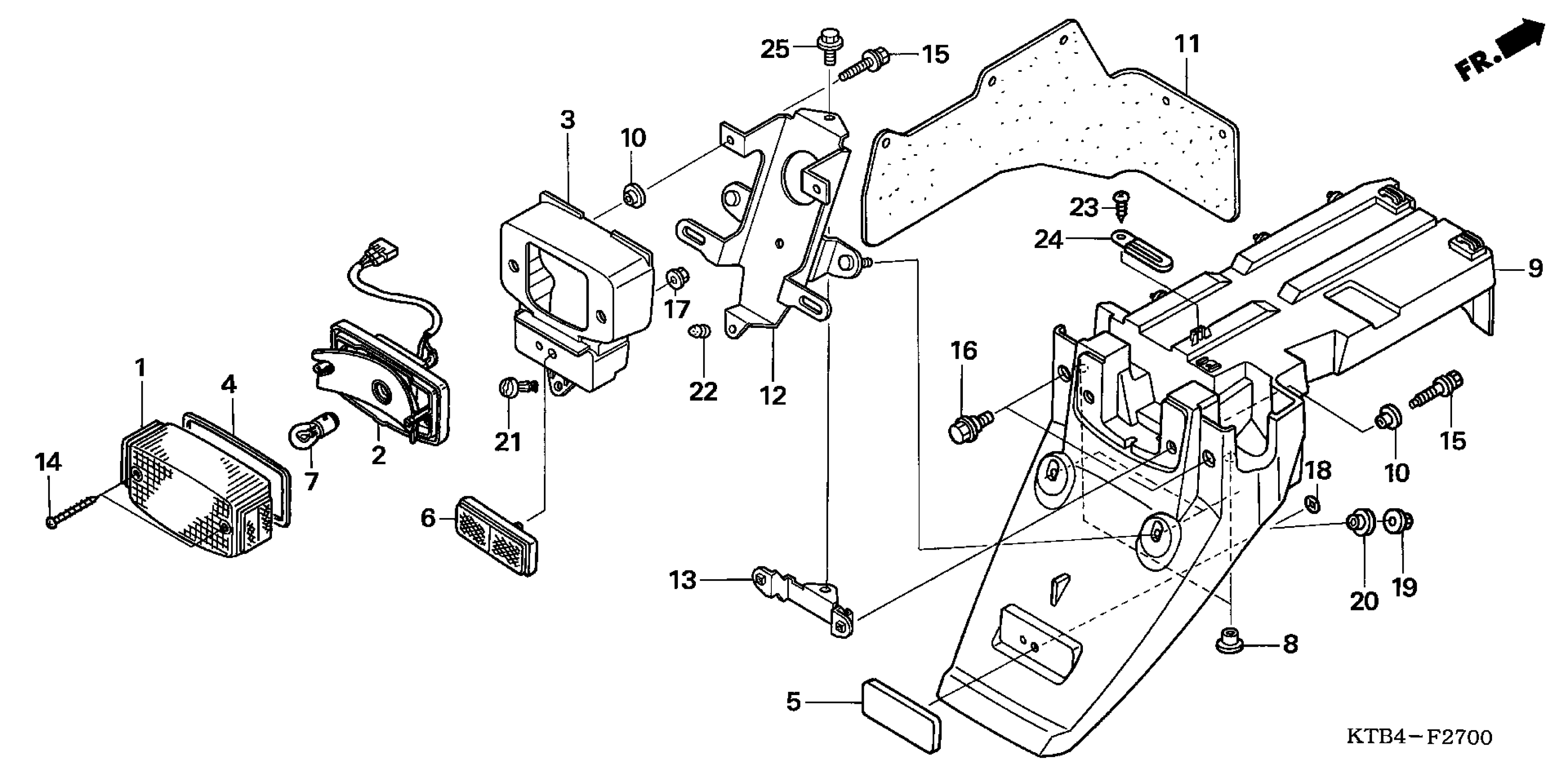

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 TAILLIGHT + REAR FENDER Diagram

#

Description
Price

1

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$28.19

2

SOCKET, TAILLIGHT

33703-KTB-771

$62.51

3

COVER, TAILLIGHT

33705-KTB-770

$4.12

4

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.02

5

DUMMY, REFLEX REFLECTOR

33740-KTB-770

Unavailable

6

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

7

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.20

8

COLLAR, FR. WHEEL COVER

44125-MN5-000

$4.88

9

FENDER, RR.

80100-KTB-000

Unavailable

10

COLLAR, SEPARATOR MOUNTING

80121-GJ5-000

$3.16

11

SPLASH GUARD

83520-KTB-000

Unavailable

12

BRACKET, TAILLIGHT

84701-KTB-770

$28.88

13

STAY, TAILLIGHT BRACKET

84711-KTB-770

$4.69

14

SCREW, TAPPING (4X40)

90105-GAM-000

$4.69

15

BOLT-WASHER (5X20)

90139-SM4-003

$4.47

16

BOLT, FLANGE (8X18)

90186-GBC-000

$1.03

17

NUT, FLANGE (5MM)

90301-MG8-000

$4.31

18

NUT, PUSH

90301-Z0A-300

$2.07

19

NUT, U (6MM)

90301-473-003

$3.89

20

WASHER, CHAIN CASE SETTING

90522-028-000

$2.66

21

CLIP, TRIM

90683-GAZ-003

$3.63

22

PLUG, CONE TYPE

90899-422-610

$1.84

23

SCREW, TAPPING (4X12)

93903-34380

$2.12

24

CLIP (4X70)

94591-47000

$2.80

25

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
