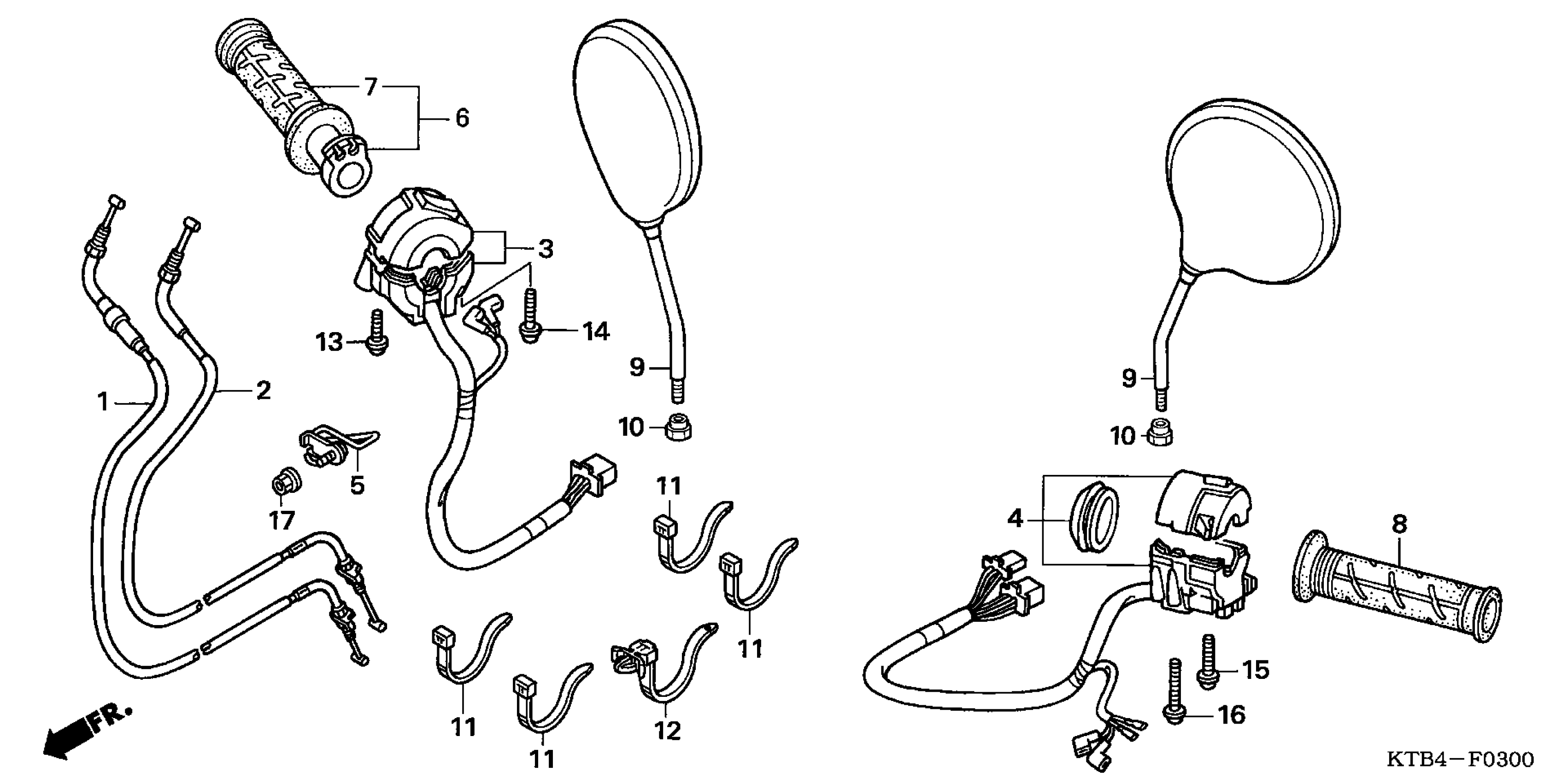

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 SWITCH + CABLE + MIRROR Diagram

CABLE A, THROTTLE

17910-KTB-010

Unavailable

CABLE B, THROTTLE

17920-KTB-770

Unavailable

SWITCH, STARTER STOP This part replaces 35130-KTB-771.

35130-KTB-773

Unavailable

SWITCH ASSY., TURN SIGNAL

35200-KTB-771

Unavailable

GUIDE, CABLE & HOSE

50290-KTB-000

$16.52

GRIP, THROTTLE

53140-KPB-000

$34.38

GRIP, R. HANDLE

53165-MY9-890

Unavailable

GRIP, L. HANDLE

53166-MY9-890

$18.20

MIRROR, BACK

88210-MZ1-831

$66.61

NUT, LOCK

90314-MB6-000

$4.93

BAND, WIRE

90650-KW3-000

$4.48

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X25)

93892-05025-07

$1.49

SCREW-WASHER (5X35)

93892-05035-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
