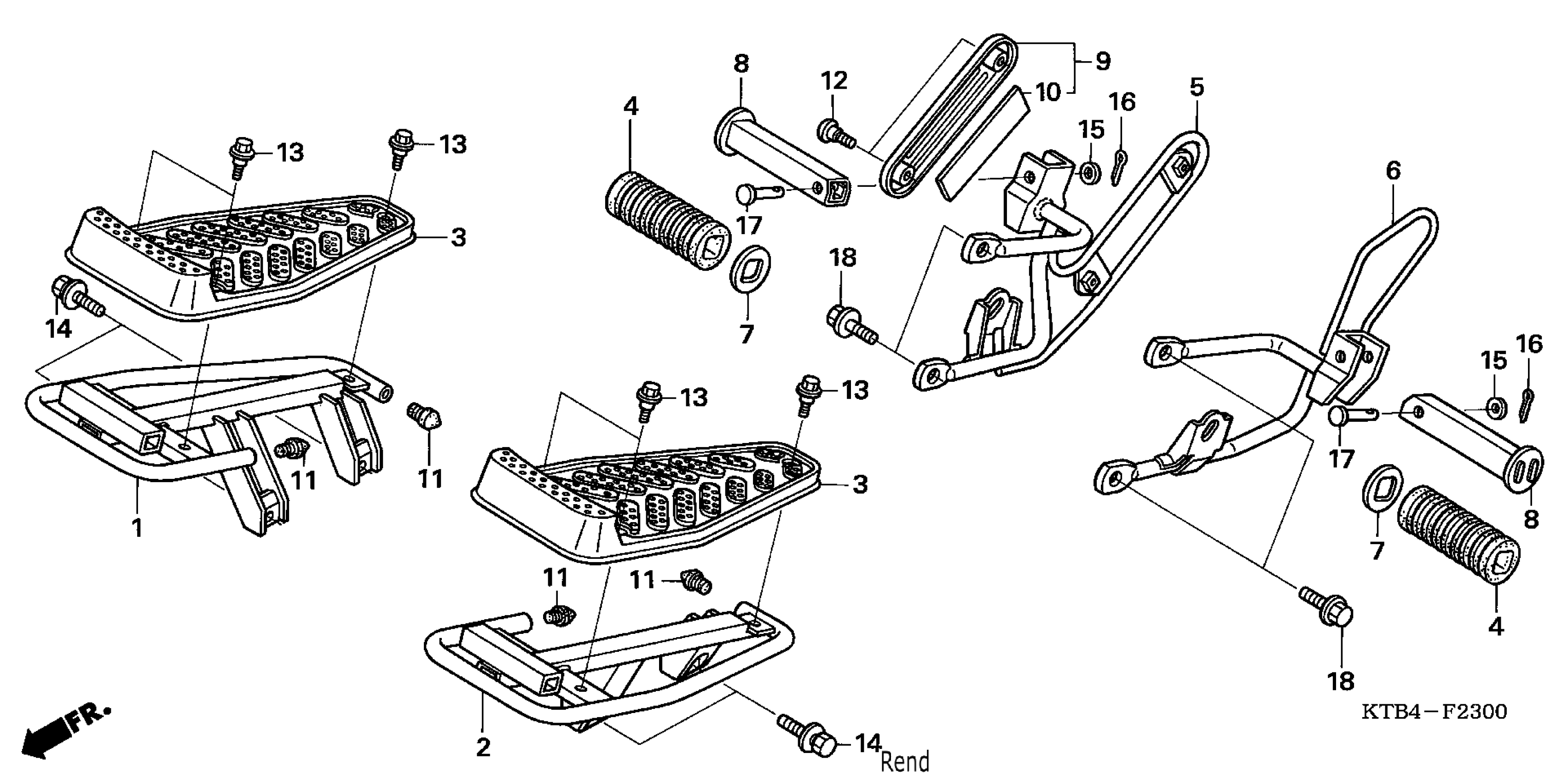

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 STEP Diagram

#

Description
Price

1

BRACKET, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50611-KTB-000ZF

Unavailable

2

BRACKET, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50612-KTB-000ZF

Unavailable

3

COVER, MAIN STEP

50661-KTB-000

Unavailable

4

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

4

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

5

BRACKET, R. PILLION STEP

50711-KTB-770

Unavailable

6

BRACKET, L. PILLION STEP

50712-KTB-010

$85.92

7

WASHER, PILLION STEP

50712-413-000

$3.47

8

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

9

PROTECTOR, PILLION STEP

50725-KTB-770

$11.98

10

GUARD, PROTECTOR HEAT

50726-KTB-770

$1.87

11

CAP, RR. BUMPER

84103-443-611

$4.23

12

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.87

13

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

14

BOLT-WASHER (10X20)

93401-10020-00

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

PIN, SPLIT (1.6X12)

94201-16120

$1.49

17

PIN A, PILLION STEP

95015-81000

$2.21

18

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
