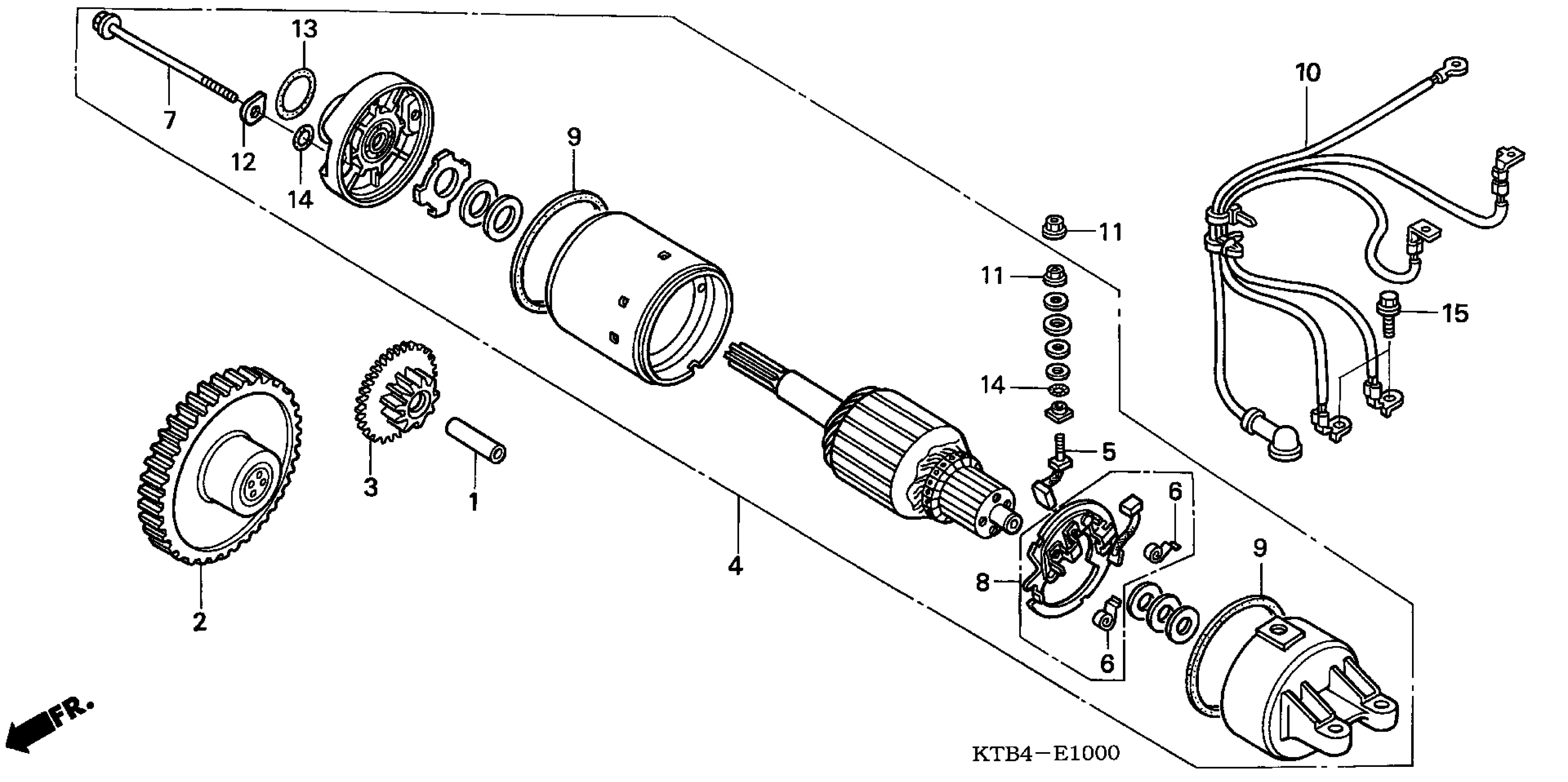

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 STARTING MOTOR Diagram

SHAFT, STARTOR REDUCTION GEAR

28102-KFG-000

Unavailable

GEAR, STARTING DRIVEN (53T)

28110-KFG-000

$96.57

GEAR, STARTER REDUCTION (11T/54T)

28130-KFG-000

Unavailable

MOTOR ASSY., STARTER

31200-KTB-003

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-KL8-711

$4.19

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

RING

31207-KS5-901

$2.90

CABLE, BATTERY GROUND

32610-KTB-000

$39.36

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.20

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
