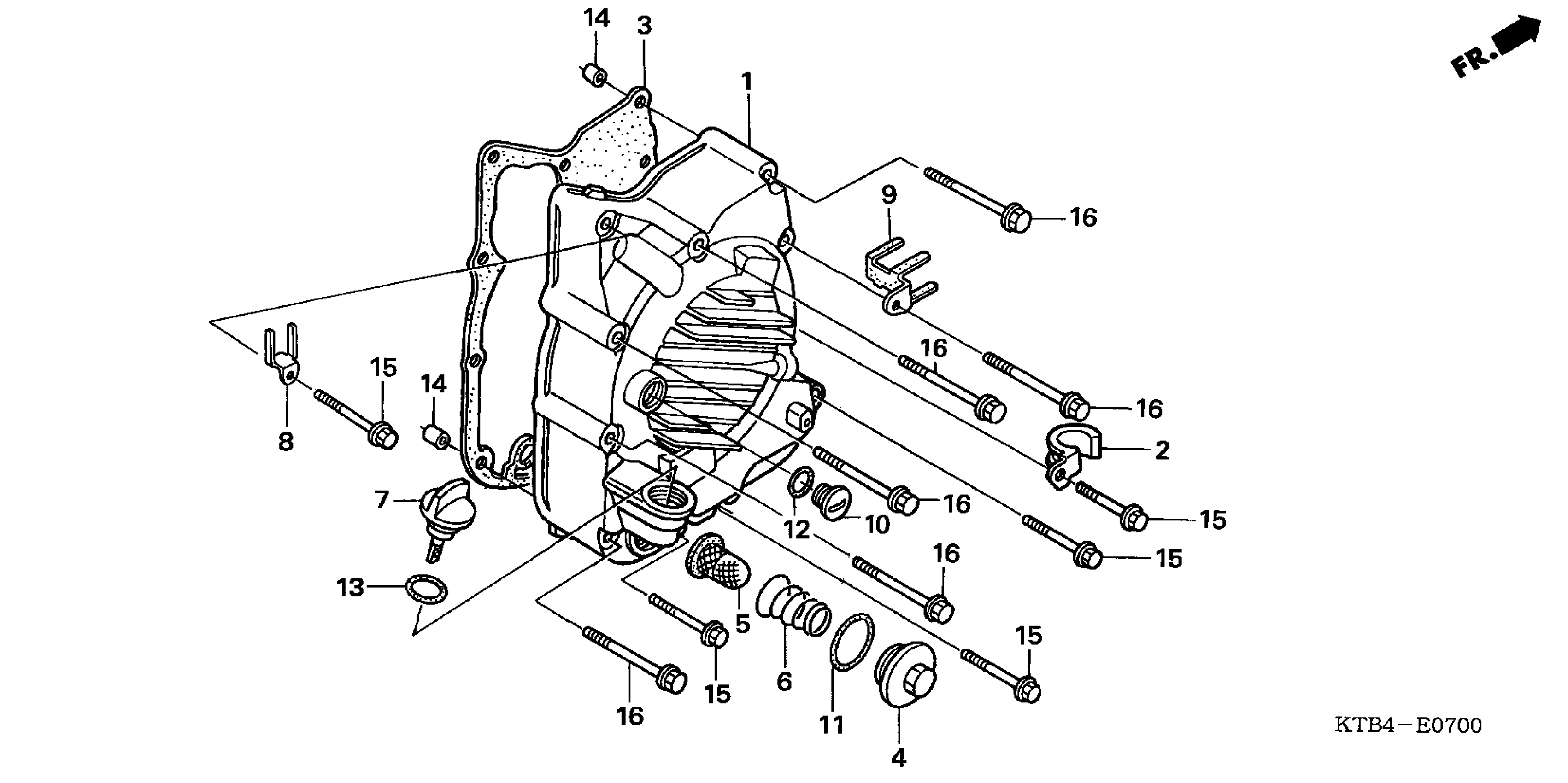

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 RIGHT CRANKCASE COVER Diagram

COVER, R.

11330-KTB-770

Unavailable

CLAMP, WATER HOSE

11336-KAB-020

$5.20

GASKET, R. COVER This part replaces 11394-KAB-010.

11394-KAB-030

$10.40

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-GE1-920

$5.62

DIPSTICK, OIL

15651-KN7-673

$12.84

CLAMP, WIRE

32964-GK8-000

$3.96

CLAMP, WIRE

32965-KAB-000

Unavailable

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

O-RING (30.8MM)

91302-001-020

$3.75

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X70)

95701-06070-00

$2.19
