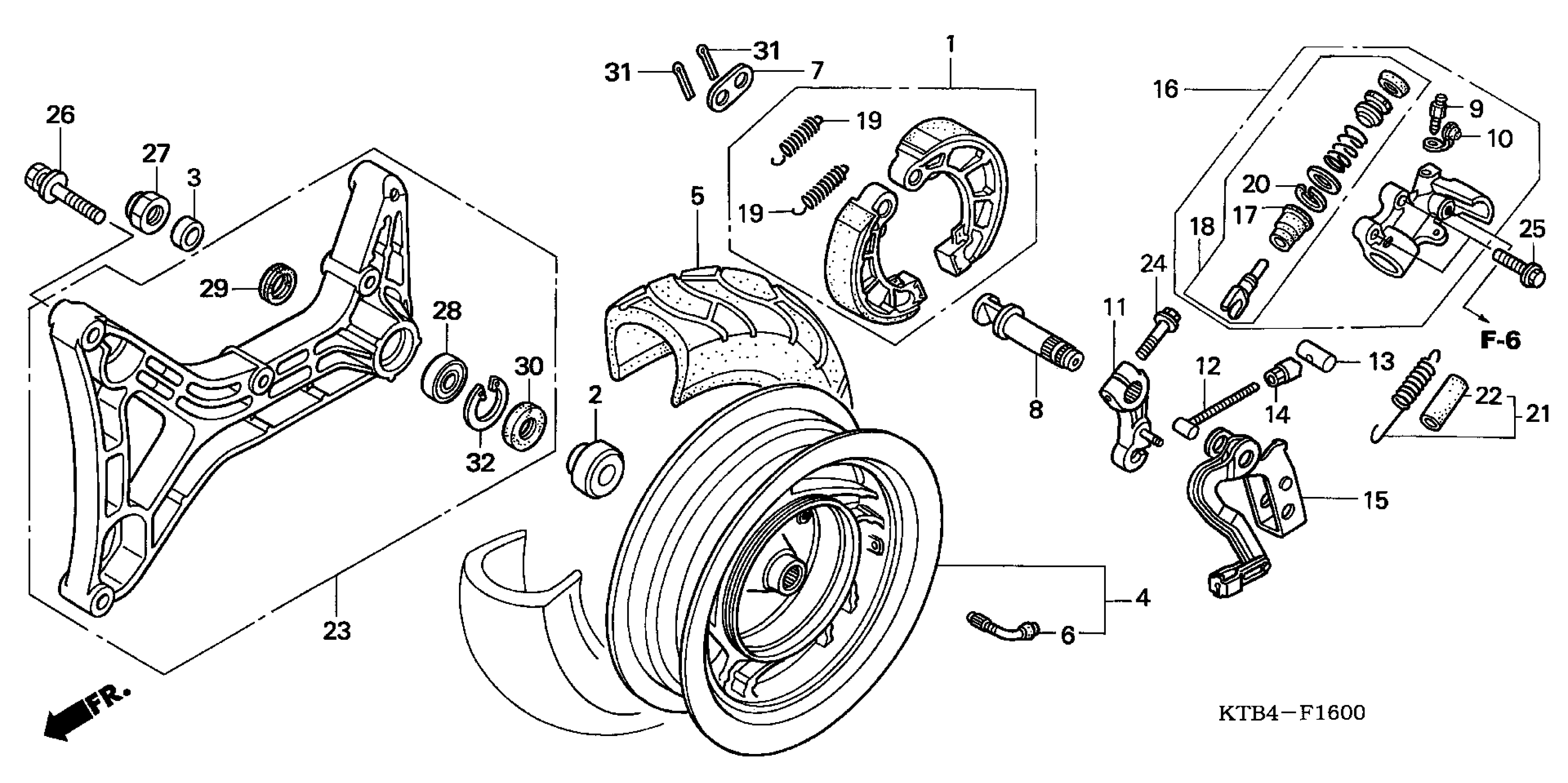

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 REAR WHEEL + SWINGARM Diagram

SHOE SET, BRAKE

06430-KFG-000

$55.66

COLLAR, RR. AXLE

42311-KFG-J00

Unavailable

COLLAR B, RR. AXLE

42312-KM1-000

$6.61

WHEEL SUB-ASSY., RR.

42650-KTB-000

Unavailable

TIRE, RR. (130/70-12 56L) (IRC) This part replaces 42711-KTB-005.

42711-KTB-015

Unavailable

TIRE, RR. (130/70-12 56L) (IRC)

42711-KTB-015

Unavailable

VALVE, RIM (BS)

42753-KJ9-003

$17.49

VALVE, RIM (IRC)

42753-KJ9-005

$16.50

WASHER, ANCHOR PIN

43102-319-000

$6.21

CAM, RR. BRAKE This part replaces 43141-KFG-000.

43141-KFG-003

$16.34

CAM, RR. BRAKE

43141-KFG-003

$16.34

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

ARM, RR. BRAKE

43410-KFG-000

$29.33

ROD, RR. BRAKE PUSH

43415-KFG-000

Unavailable

JOINT B, BRAKE ARM

43418-KFG-000

$2.30

NUT, ADJUSTER

43419-KFG-000

Unavailable

SUB-ARM

43420-KFG-000

$32.51

CYLINDER, THRUST This part replaces 43550-KTB-006.

43550-KTB-016

Unavailable

BOOT

43559-KFG-006

$6.25

PISTON SET This part replaces 43560-KFG-006.

43560-KFG-016

Unavailable

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

CIRCLIP

46182-500-013

$4.90

SPRING, RR. BRAKE ARM

46513-KFG-000

$4.95

TUBE, BRAKE PEDAL SPRING

46515-KY7-000

$4.92

SWINGARM ASSY.

52000-KTB-010

Unavailable

BOLT, FLANGE (8X28)

90102-KV3-700

$3.92

BOLT, FLANGE (8X32)

90107-MT3-003

$4.49

BOLT-WASHER (10X55)

90132-KPB-000

Unavailable

NUT, U (16MM)

90305-KBN-901

$20.13

BEARING, RADIAL BALL (6303)

91051-KS4-003

$38.31

DUST SEAL (37X25X6)

91258-HB3-003

$7.25

SEAL (25X47X5)

91259-KM1-003

$8.66

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

CIRCLIP (INNER) (47MM)

94520-47000

$2.34
