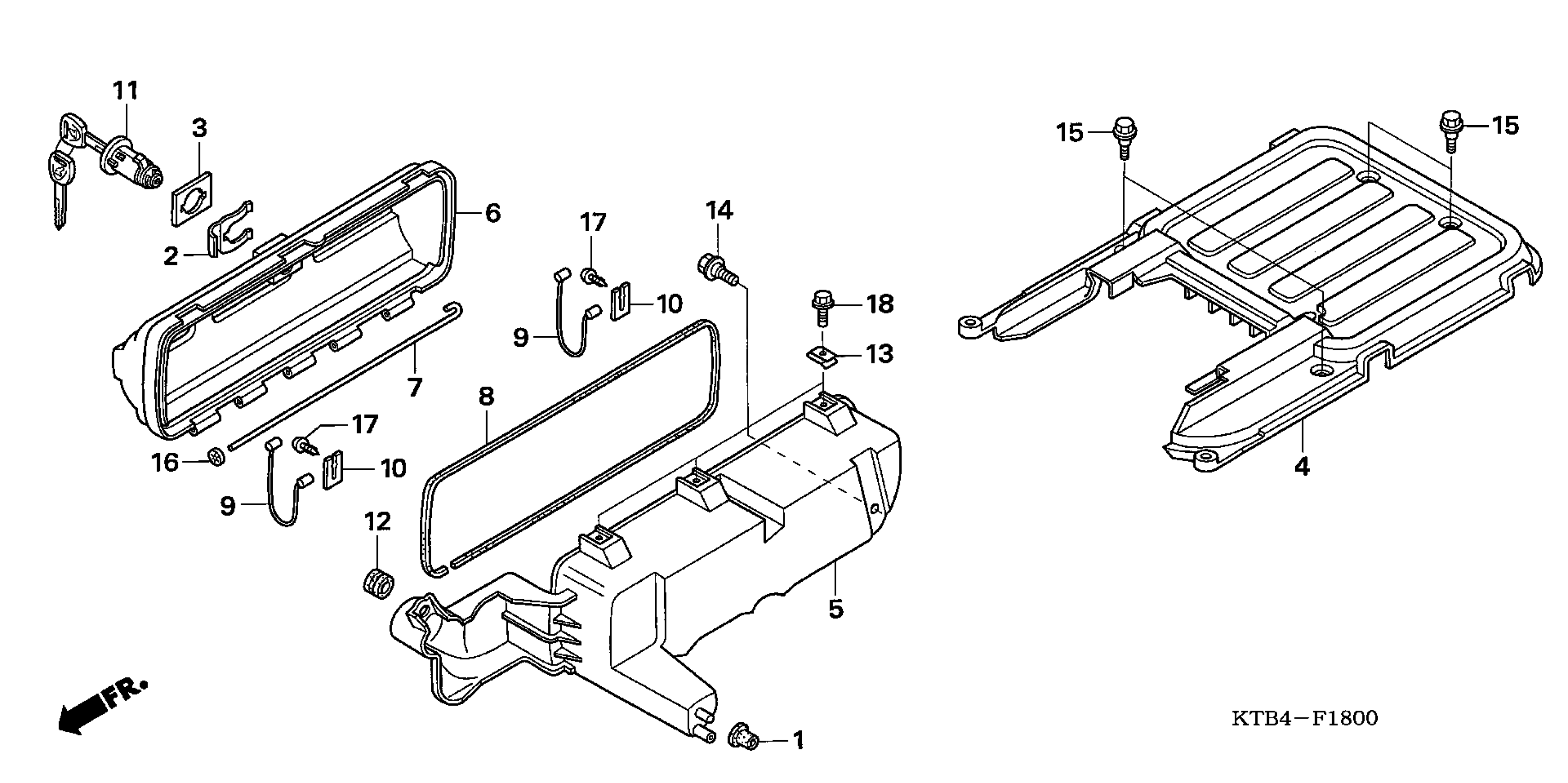

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 REAR DECK + UTILITY BOX Diagram

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

WASHER, SEAT LOCK

77236-GZ5-000

$2.92

PANEL, RR. DECK

81100-KTB-000

Unavailable

BOX, UTILITY

81651-KTB-000

$35.62

COVER, UTILITY BOX

81652-KTB-000

$21.56

PIN, UTILITY BOX HINGE

81653-KTB-000

$4.03

SEAL, UTILITY BOX

81654-KTB-000

Unavailable

WIRE, STOPPER

81655-KTB-000

$5.82

PLATE, WIRE STOPPER

81656-KTB-000

$1.49

LOCK ASSY., UTILITY BOX

81658-KTB-003

Unavailable

GROMMET, SIDE COVER

83501-MG7-000

$2.61

NUT, FENDER SETTING

84601-HA7-670

$5.54

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

NUT, PUSH (2.6)

90310-ZB7-701

$2.18

SCREW, TAPPING (4X10)

93903-24280

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
