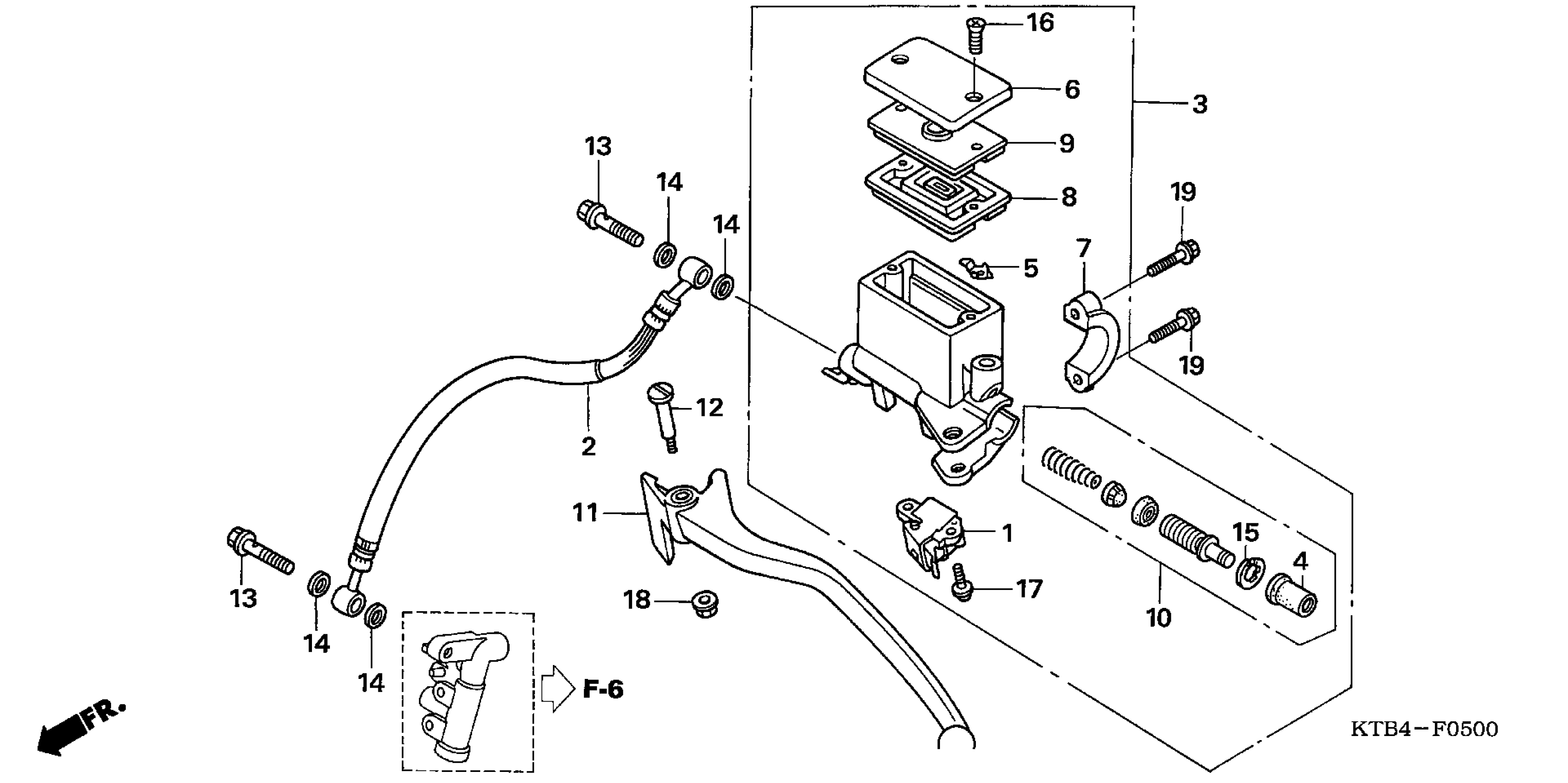

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 REAR BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP (RR.) This part replaces 35340-KFG-000.

35340-KFG-003

$27.78

HOSE A, RR. BRAKE

43311-KTB-004

Unavailable

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-KTB-771

Unavailable

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER, L. HANDLEBAR (COO) This part replaces 53178-MCT-006.

53178-MGF-305

$20.03

BOLT, HANDLE LEVER

90114-KT7-006

$8.92

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
