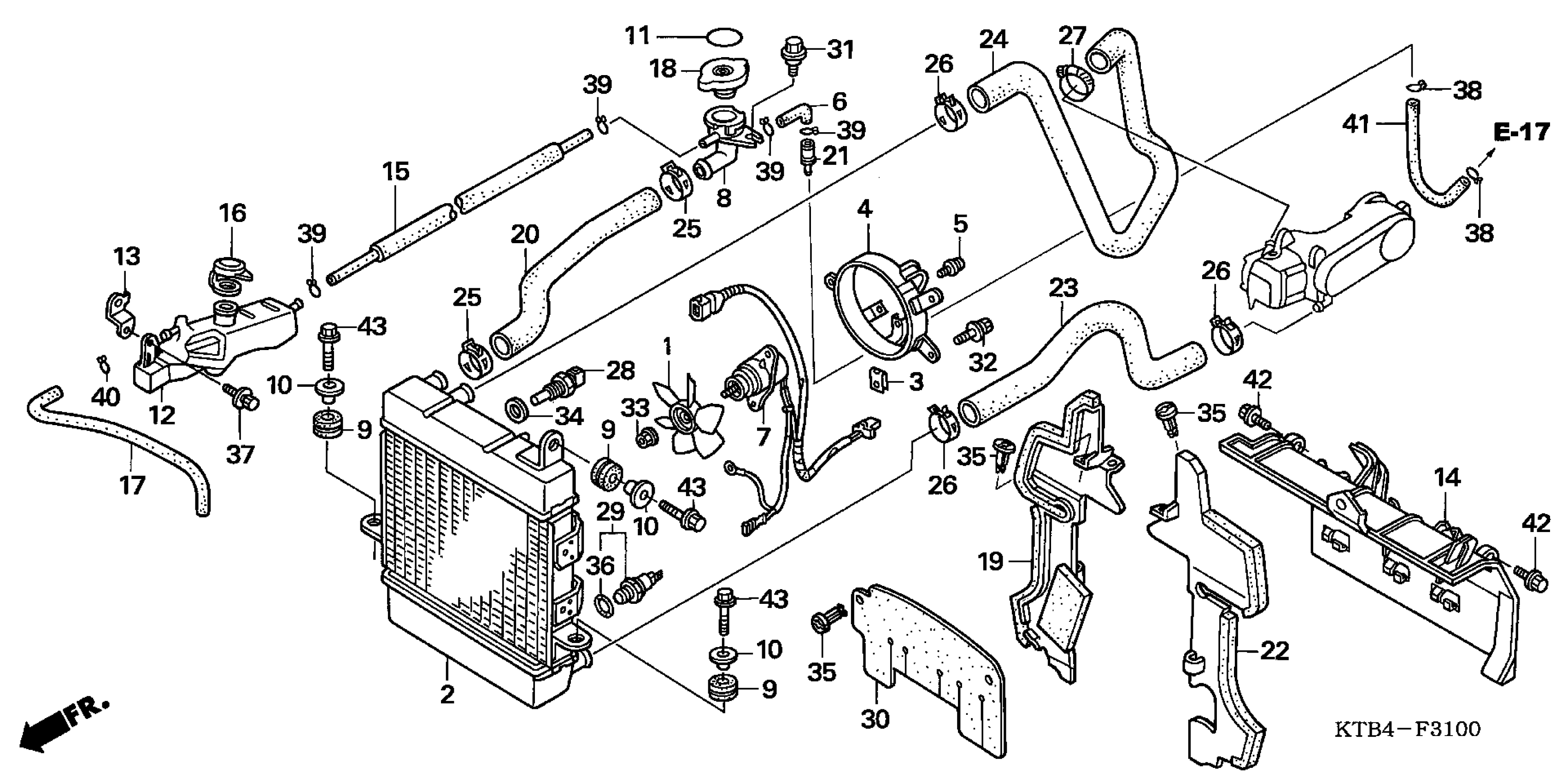

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 RADIATOR Diagram

#

Description
Price

1

FAN, COOLING

19009-KT7-000

$58.30

2

RADIATOR

19010-KTB-003

Unavailable

3

NUT, SETTING

19014-KEA-003

$3.10

4

SHROUD

19015-KFG-J01

$47.79

5

SCREW, PAN (4X8.5)

19016-KEA-003

$1.62

6

TUBE, CARBURETOR FILLER This part replaces 19017-KFG-000.

19017-KFG-D10

$2.85

7

MOTOR, COOLING FAN

19030-KFG-J01

Unavailable

8

NECK, FILLER

19039-KM1-004

$29.31

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

11

SEAL, RADIATOR CAP

19055-MZ3-300

Unavailable

12

TANK, RESERVE

19101-KFG-000

$37.10

13

STAY, RESERVE TANK

19102-KFG-000

Unavailable

14

DUCT B, AIR

19103-KFG-000

$40.16

15

TUBE, FILLER-RESERVE TANK

19104-KTB-000

Unavailable

16

CAP, RESERVE TANK

19104-MB0-700

$12.16

17

TUBE, RESERVE TANK

19105-KTB-010

Unavailable

18

CAP, RADIATOR FILLER

19111-KE1-013

$34.86

19

DUCT A, R. AIR

19120-KTB-770

Unavailable

20

HOSE, FILLER

19126-KFG-000

Unavailable

21

JOINT, TUBE

19126-KM1-010

$3.90

22

DUCT A, L. AIR

19130-KTB-770

$30.70

23

HOSE A, WATER

19501-KFG-J00

Unavailable

24

HOSE B, WATER

19503-KFG-J00

Unavailable

25

CLAMP, HOSE (22-29MM) This part replaces 19513-MF5-000.

19517-ML7-691

$11.62

25

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

25

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

26

CLIP B, HOSE

19514-ME9-003

$5.64

27

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

28

SENSOR, WATER TEMPERATURE

36151-KFG-003

Unavailable

29

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

30

GUIDE, CENTER AIR

64311-KTB-770

Unavailable

31

BOLT, FLANGE (6MM)

90111-162-000

$2.89

32

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

33

NUT, TOOTHED (3MM)

90308-KM3-003

$2.33

34

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

35

CLIP, TRIM

90683-GAZ-003

$3.80

36

O-RING (13.5X1.4)

91307-PH7-660

$2.83

36

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

37

BOLT-WASHER (6X12)

93404-06012-00

$1.55

38

CLIP, TUBE (B7)

95002-02070

$1.80

39

CLIP, TUBE (B12)

95002-02120

$2.00

40

CLIP, TUBE (C11)

95002-70000

$1.56

41

BULK HOSE, VACUUM (3.5X1000) (3.5X150)

95005-35001-20M

$9.67

42

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

43

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
