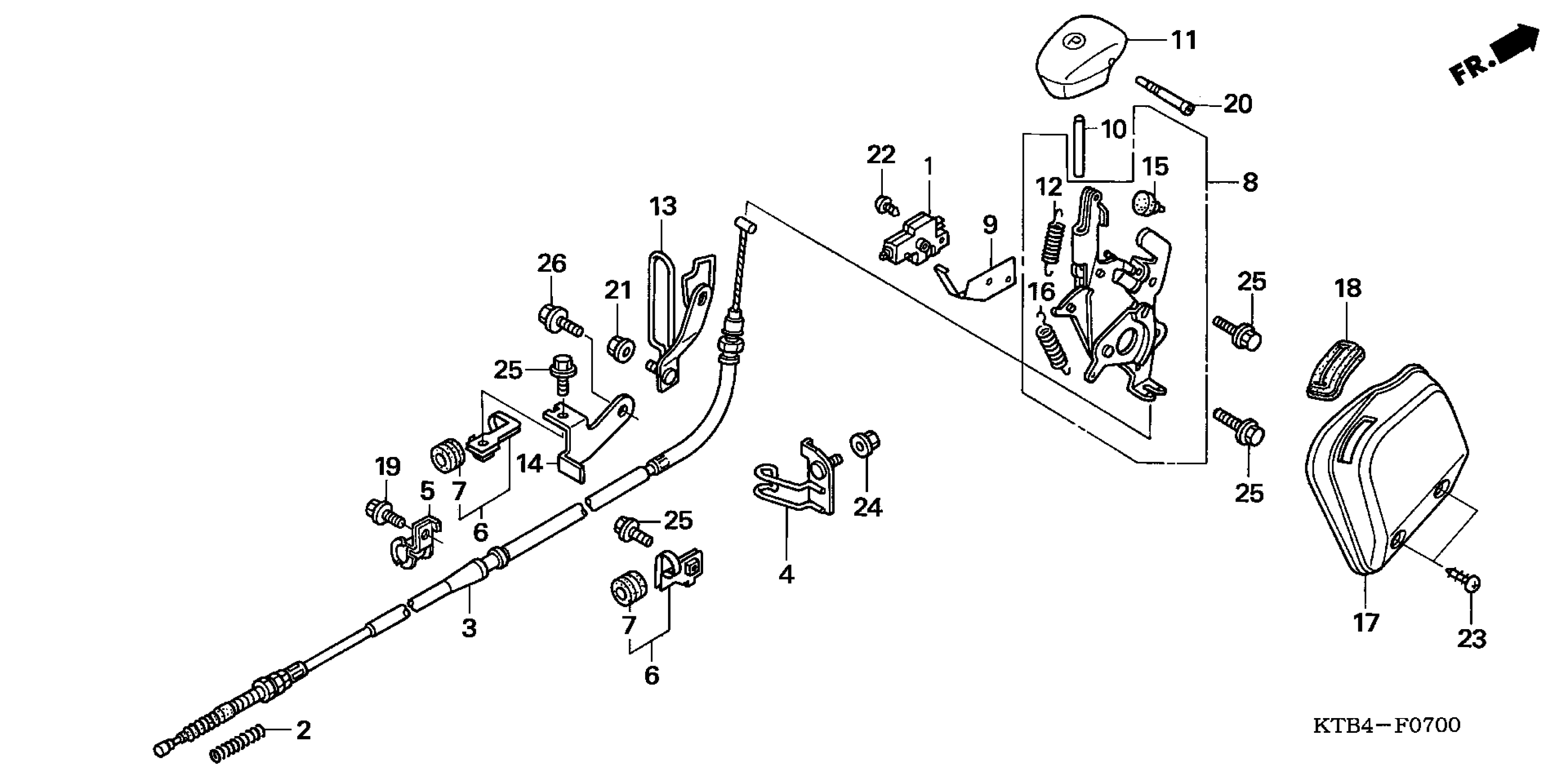

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 PARKING BRAKE Diagram

#

Description
Price

1

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

2

SPRING, BRAKE LOCK ARM

43416-KTB-000

$2.32

3

CABLE, PARKING BRAKE

43450-KTB-000

Unavailable

4

CLAMP, PARKING CABLE

43455-KTB-000

$12.72

5

CLAMP B, PARKING CABLE

43456-KTB-000

$4.96

6

GUIDE ASSY., BRAKE CABLE

43460-GCK-000

Unavailable

7

INNER, CABLE GUIDE

45466-329-000

$2.80

8

LEVER, HAND BRAKE

47105-KPB-010

Unavailable

9

ARM, HAND BRAKE SWITCH

47125-KPB-000

Unavailable

10

ROD, PUSH

47140-KPB-000

Unavailable

11

GRIP, HAND BRAKE

47150-KPB-000

Unavailable

12

SPRING, PARKING LEVER

47160-KPB-000

Unavailable

13

GUIDE, PARKING BRAKE CABLE

50161-KTB-770

$18.84

14

STAY, PARKING BRAKE CABLE GUIDE

50162-KTB-000

$4.10

15

RUBBER, STAND STOPPER

50505-GA7-730

$2.03

16

SPRING

50513-GBL-000

$3.03

17

COVER, PARKING LEVER *NH105* (MAT BLACK)

64305-KTB-000ZA

Unavailable

18

COVER, BRAKE LOCK

64315-KPB-000

Unavailable

19

BOLT, FLANGE (6X12)

90118-958-003

$3.01

20

SCREW, SPECIAL (5MM)

90131-KPB-000

Unavailable

21

NUT, U (6MM)

90301-473-003

$3.79

22

SCREW, PAN (4X10)

93500-04010-0A

$0.83

23

SCREW, TAPPING (4X12)

93903-34380

$1.93

24

NUT, FLANGE (6MM)

94050-06000

$0.59

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

26

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
