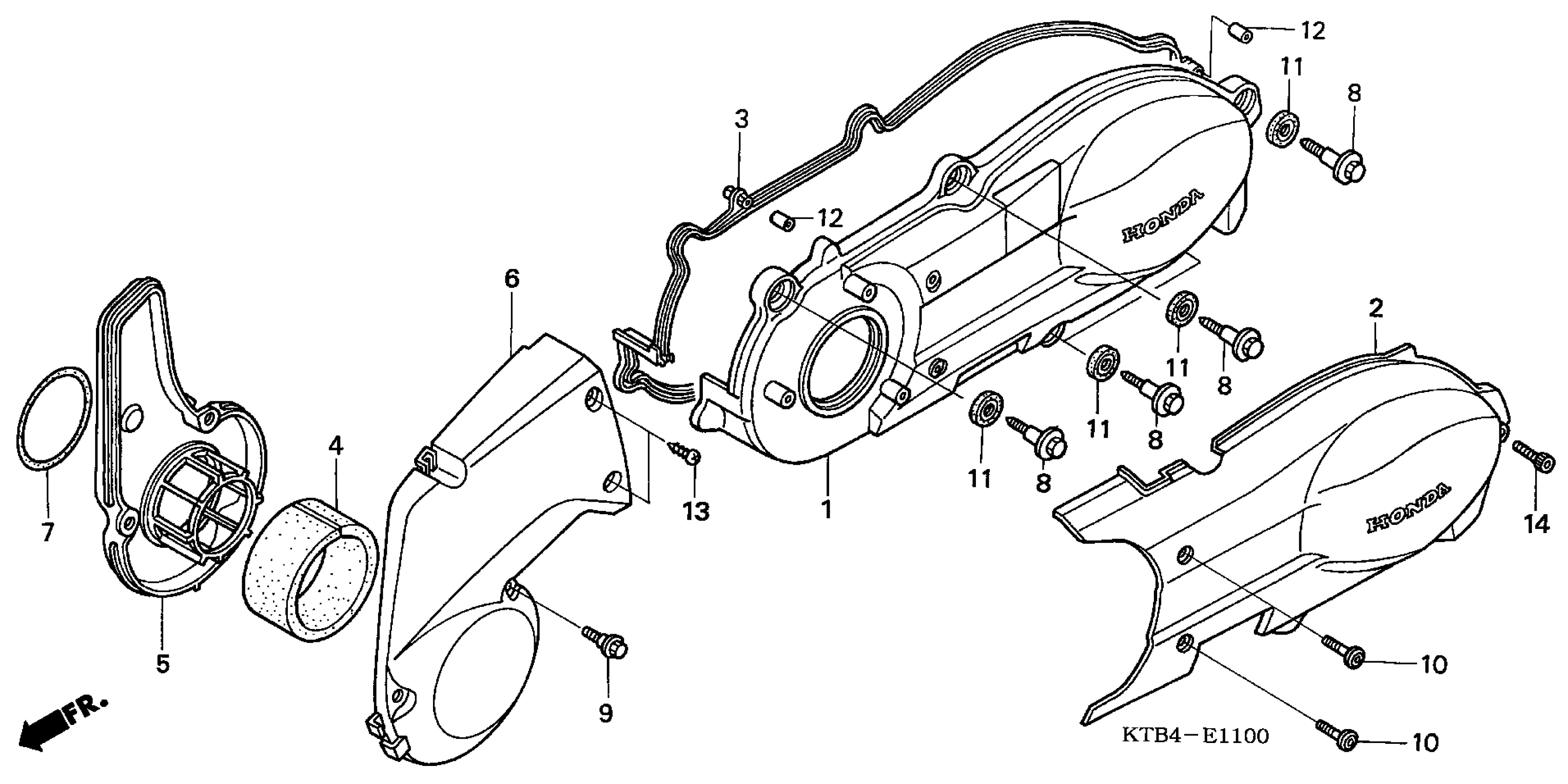

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 LEFT CRANKCASE COVER Diagram

COVER, L.

11340-KPB-000

$364.21

COVER, L. SIDE

11360-KPB-010

$151.61

GASKET, L. COVER

11395-KFG-J00

Unavailable

ELEMENT, BELT COVER DUCT

19412-KFG-000

$3.38

DUCT, BELT COVER

19413-KFG-000

Unavailable

CAP, DUCT COVER

19414-KTB-000

$31.15

SEAL, BELT COVER DUCT

19415-KAB-000

Unavailable

BOLT, L. CRANKCASE COVER

90003-KFG-000

$2.92

BOLT, SPECIAL (5MM)

90112-GR2-000

$2.49

BOLT, SPECIAL (6X25)

90115-MAS-E00

$3.65

RUBBER, MOUNTING

90543-KFG-000

$3.57

PIN, DOWEL (8X16) This part replaces 90702-HC4-000.

94301-08160

$1.98

PIN, DOWEL (8X16)

94301-08160

$1.98

SCREW, TAPPING (5X25)

93903-25580

$1.49

BOLT, SOCKET (6X25)

96600-06025-00

$1.89
