Description

Price

1

PUMP ASSY., FUEL | Use up to Frame SN 6K100391 This part replaces 16710-KTB-003.

16710-KTB-013

Unavailable

1

PUMP ASSY., FUEL | Use from Frame SN 6K100392

16710-KTB-013

Unavailable

2

RUBBER, FUEL PUMP MOUNTING

16711-KS4-000

Unavailable

3

FILTER, FUEL

16900-371-004

$30.23

4

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

5

TANK, FUEL

17510-KTB-770

Unavailable

6

TRIM, FUEL TANK

17516-KFG-000

$3.97

7

CAP COMP.,FUEL FILL This part replaces 17620-KTB-771.

17620-KTB-772

Unavailable

8

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

$7.79

9

TUBE A, FUEL

17681-KFG-000

Unavailable

10

TUBE B, FUEL

17682-KFG-000

Unavailable

11

TUBE C, FUEL

17683-KTB-000

Unavailable

12

FUEL UNIT SET

37080-KTB-000

Unavailable

13

GASKET, BASE

37801-GA7-700

$5.17

14

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

15

NUT, FLANGE (6MM)

94050-06000

$1.49

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

CLIP, TUBE (B10)

95002-02100

$1.90

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

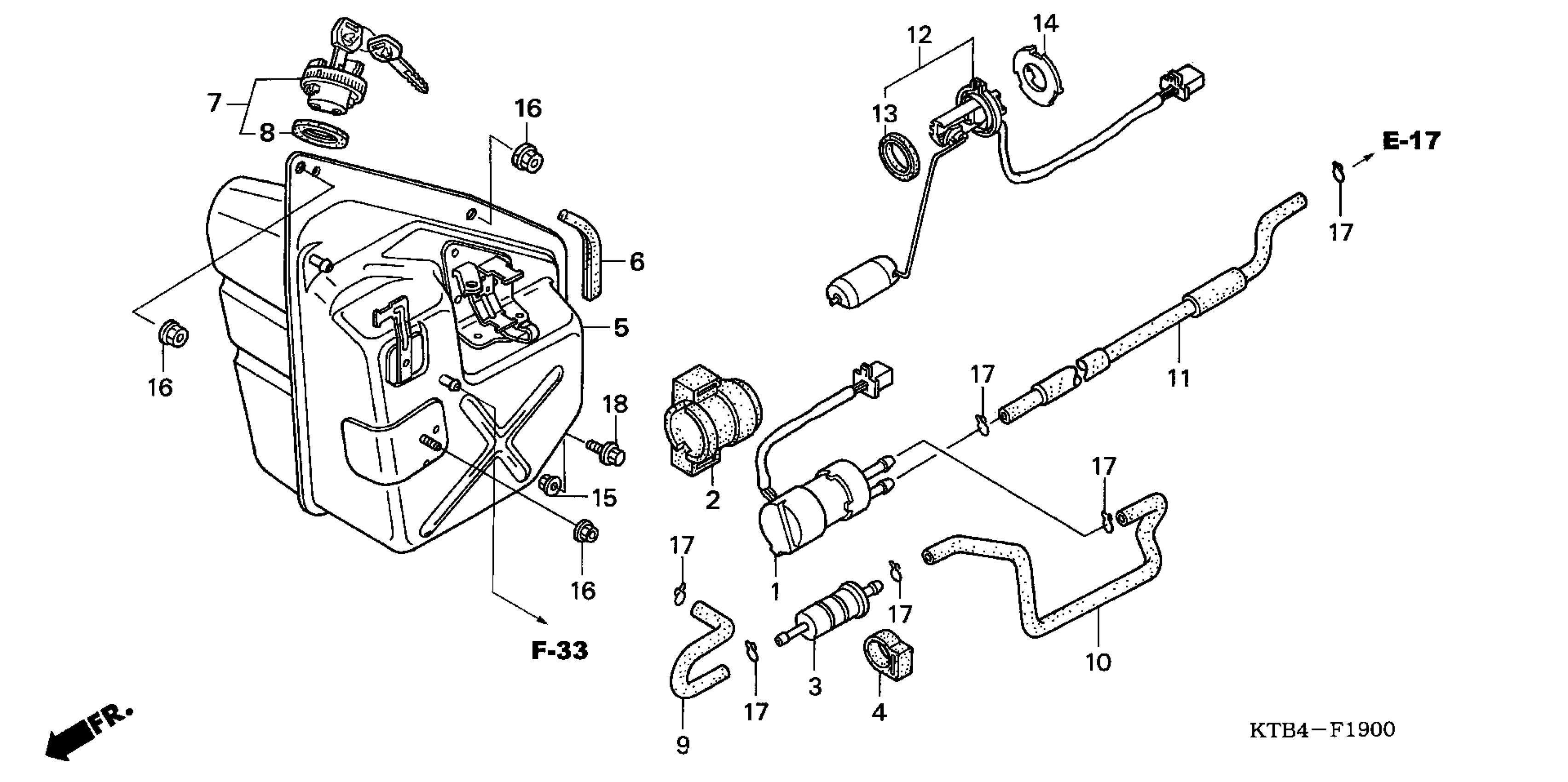

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 FUEL TANK Diagram

PUMP ASSY., FUEL | Use up to Frame SN 6K100391 This part replaces 16710-KTB-003.

PUMP ASSY., FUEL | Use from Frame SN 6K100392

RUBBER, FUEL PUMP MOUNTING

FILTER, FUEL

CUSHION, FUEL STRAINER

TANK, FUEL

TRIM, FUEL TANK

CAP COMP.,FUEL FILL This part replaces 17620-KTB-771.

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

TUBE A, FUEL

TUBE B, FUEL

TUBE C, FUEL

FUEL UNIT SET

GASKET, BASE

RETAINER, FUEL UNIT

NUT, FLANGE (6MM)

NUT, FLANGE (8MM)

CLIP, TUBE (B10)

BOLT, FLANGE (6X12)
