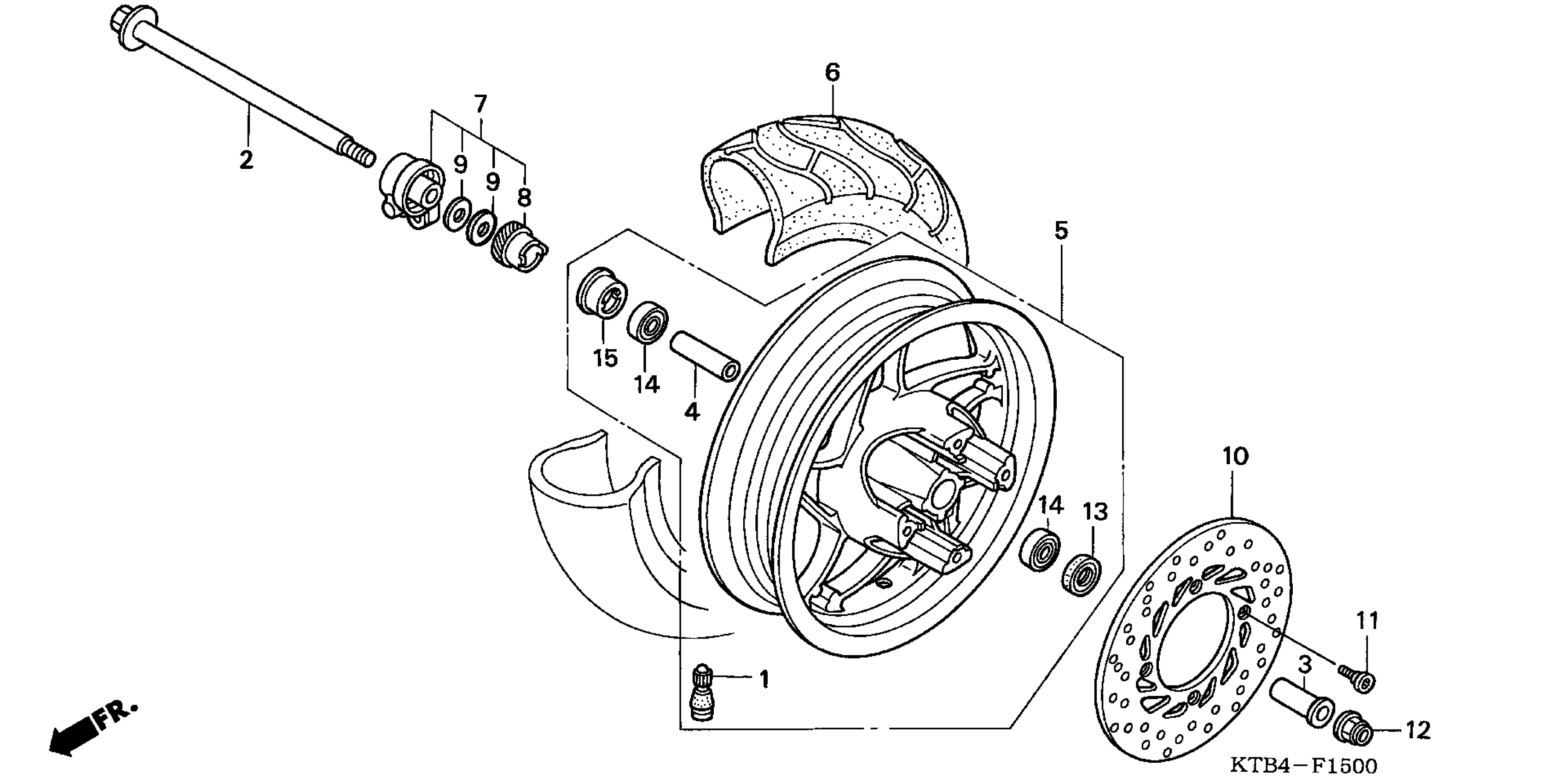

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM (IRC)

42753-GM9-743

$7.79

2

AXLE, FR. WHEEL

44301-KFG-000

$18.67

3

COLLAR A, FR. WHEEL SIDE

44312-KFG-000

Unavailable

4

COLLAR, FR. AXLE DISTANCE

44620-GBC-000

Unavailable

5

WHEEL SUB-ASSY., FR.

44650-KTB-000

$302.68

6

TIRE, FR. (110/90-12) (64L) (IRC) This part replaces 44711-KTB-005.

44711-KTB-015

Unavailable

6

TIRE, FR. (110/90-12) (64L) (IRC)

44711-KTB-015

Unavailable

7

BOX ASSY., SPEEDOMETER GEAR

44800-KFG-J41

Unavailable

8

GEAR, SPEEDOMETER

44806-KFG-000

Unavailable

9

WASHER, SPEEDOMETER GEAR

44809-170-003

Unavailable

10

DISK, L. FR. BRAKE

45351-KFG-003

Unavailable

11

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

11

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

12

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

13

DUST SEAL (20X32X5) (NOK) This part replaces 90754-GC8-003.

90754-GC8-005

$4.70

13

DUST SEAL (20X32X5) (NOK)

90754-GC8-005

$4.70

14

BEARING, RADIAL BALL (6201U)

91051-KFG-005

$10.30

15

SEAL, SPEEDOMETER GEAR BOX (NOK) This part replaces 91258-KM1-003.

91258-KM1-004

$10.57

15

SEAL, SPEEDOMETER GEAR BOX (NOK)

91258-KM1-004

$10.57
