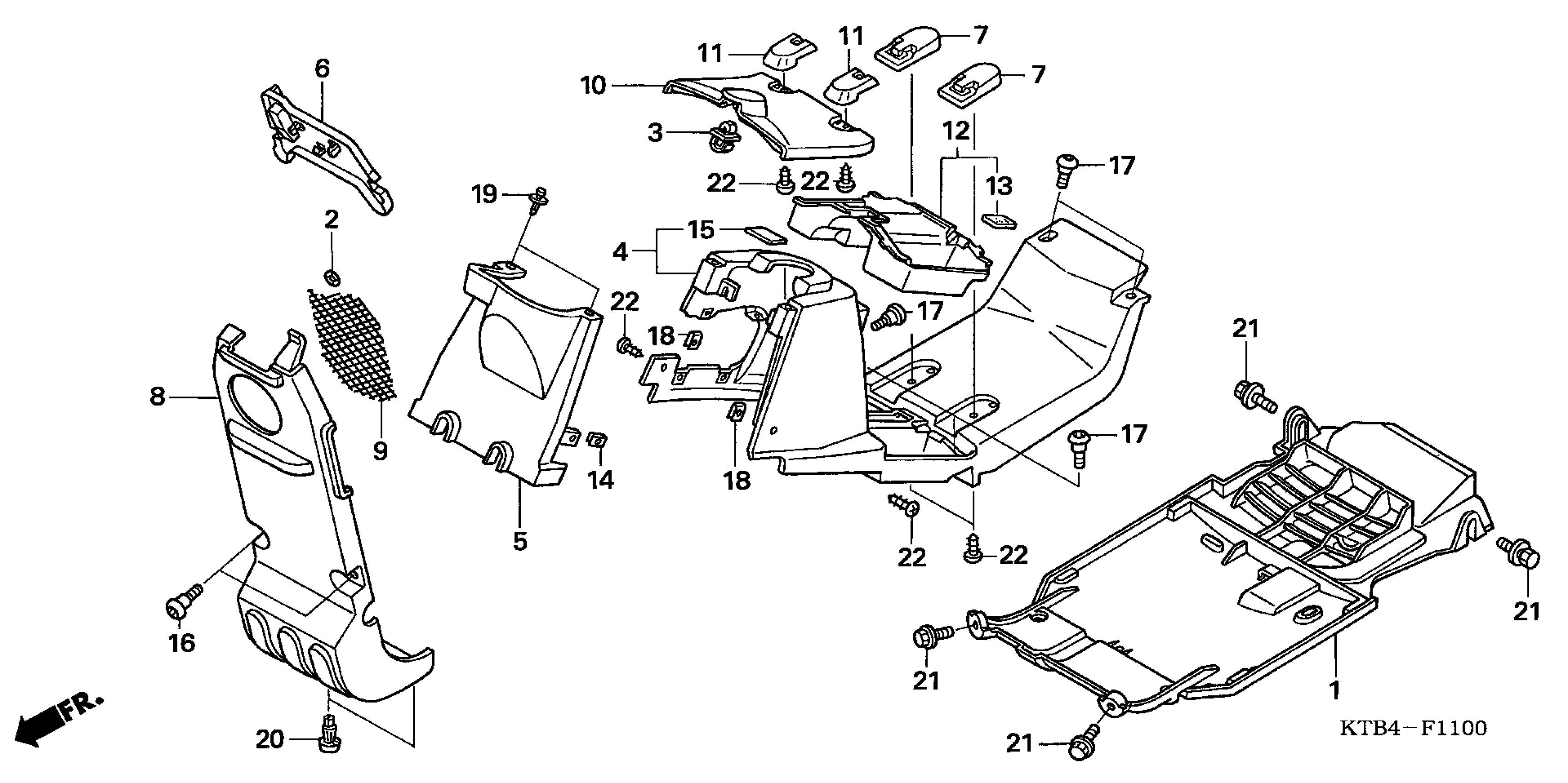

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 FRONT COVER + CENTER COVER Diagram

COVER (LOWER)

50621-KTB-010

Unavailable

NUT, SPEED (4MM)

64206-MJ0-000

$1.38

LATCH & STRIKER

64229-MCS-G00

$2.90

COVER SET, CENTER *NH303M* (WL) (MAT AXIS GRAY METALLIC)

64300-KTB-000ZB

Unavailable

COVER, FR. *NH303M* (MAT AXIS GRAY METALLIC)

64301-KTB-000ZC

$108.46

PLATE, METER BACK

64308-KTB-000

$2.52

HINGE, CENTER COVER

64313-KTB-000

Unavailable

COVER, FR. (LOWER)

64351-KTB-010

Unavailable

GRILLE, AIR IN.

64352-KTB-770

Unavailable

LID, FUEL *NH303M* (MAT AXIS GRAY METALLIC)

64451-KTB-000ZC

Unavailable

HINGE, FUEL LID

64453-KTB-000

Unavailable

TRAY

64460-KTB-000

$14.17

MAT, FUEL TRAY

64462-KTB-300

Unavailable

NUT, CENTER PANEL

66871-611-000

$5.28

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

SCREW, PAN (6X10)

90105-MM4-000

$2.01

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.54

NUT, SPRING (4MM)

90302-SA4-003

$4.91

CLIP, MOLDING (LOWER)

90654-MCA-000

$2.26

CLIP, TRIM

90683-GAZ-003

$3.54

BOLT-WASHER (6X12)

93404-06012-00

$1.48

SCREW, TAPPING (4X12)

93903-34380

$1.93
