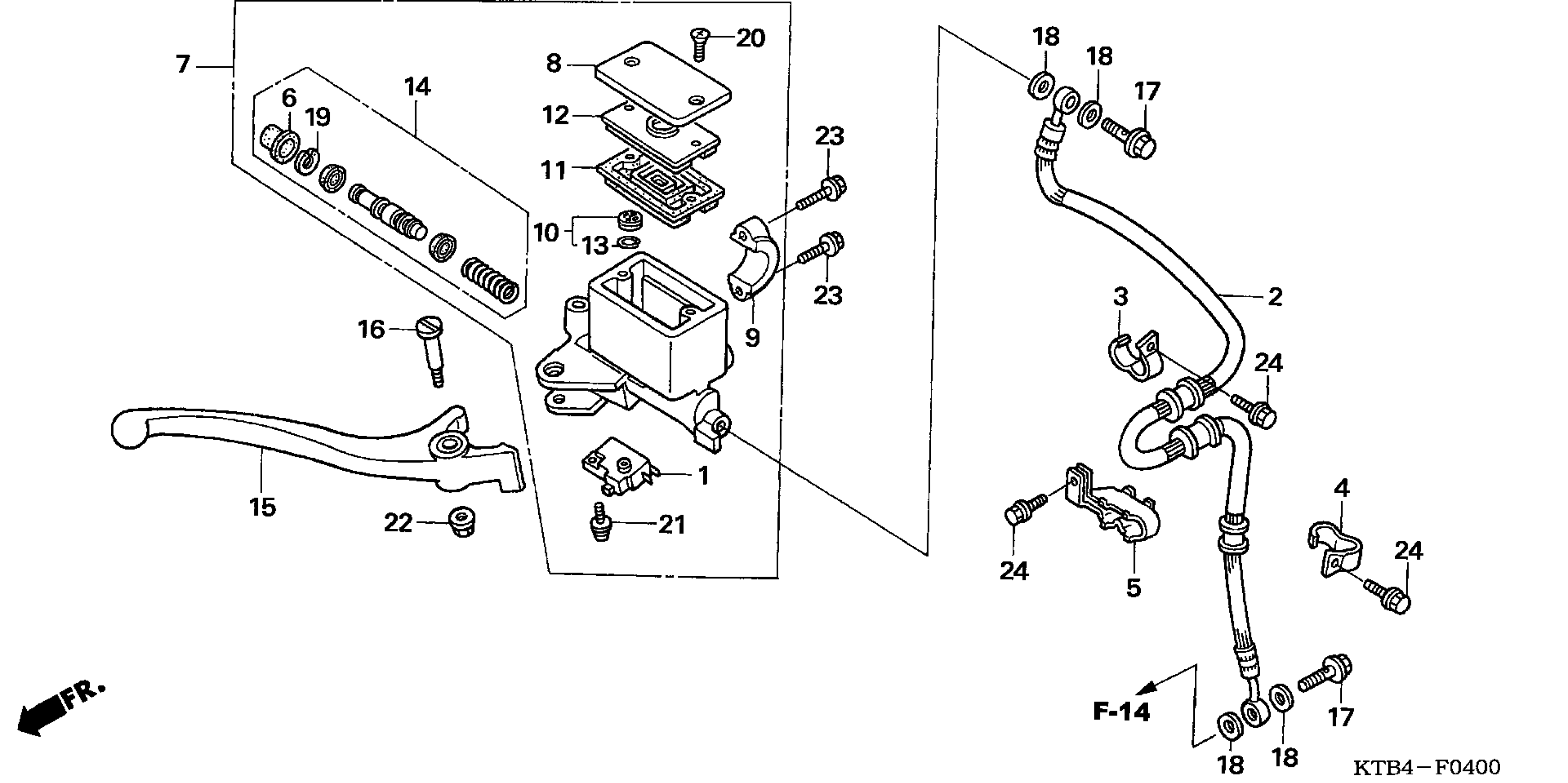

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, FR. BRAKE (RH)

45125-KTB-004

Unavailable

3

CLIP A, BRAKE HOSE

45127-KTB-000

$4.02

4

CLIP B, BRAKE HOSE

45128-KFG-640

Unavailable

5

CLAMP A, BRAKE HOSE

45135-KPB-000

$5.98

6

BOOT

45504-410-003

$12.16

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-KTB-771

Unavailable

8

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

SEPARATOR

45518-KY1-701

$6.93

11

DIAPHRAGM

45520-MG7-006

$10.61

12

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

13

CLIP

45523-KY1-701

$1.87

14

MASTER CYLINDER SET

45530-471-831

$40.86

15

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$18.76

16

BOLT, HANDLE LEVER

90114-KT7-006

$8.92

17

BOLT, OIL (10X22)

90145-MS9-612

$7.54

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

24

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
