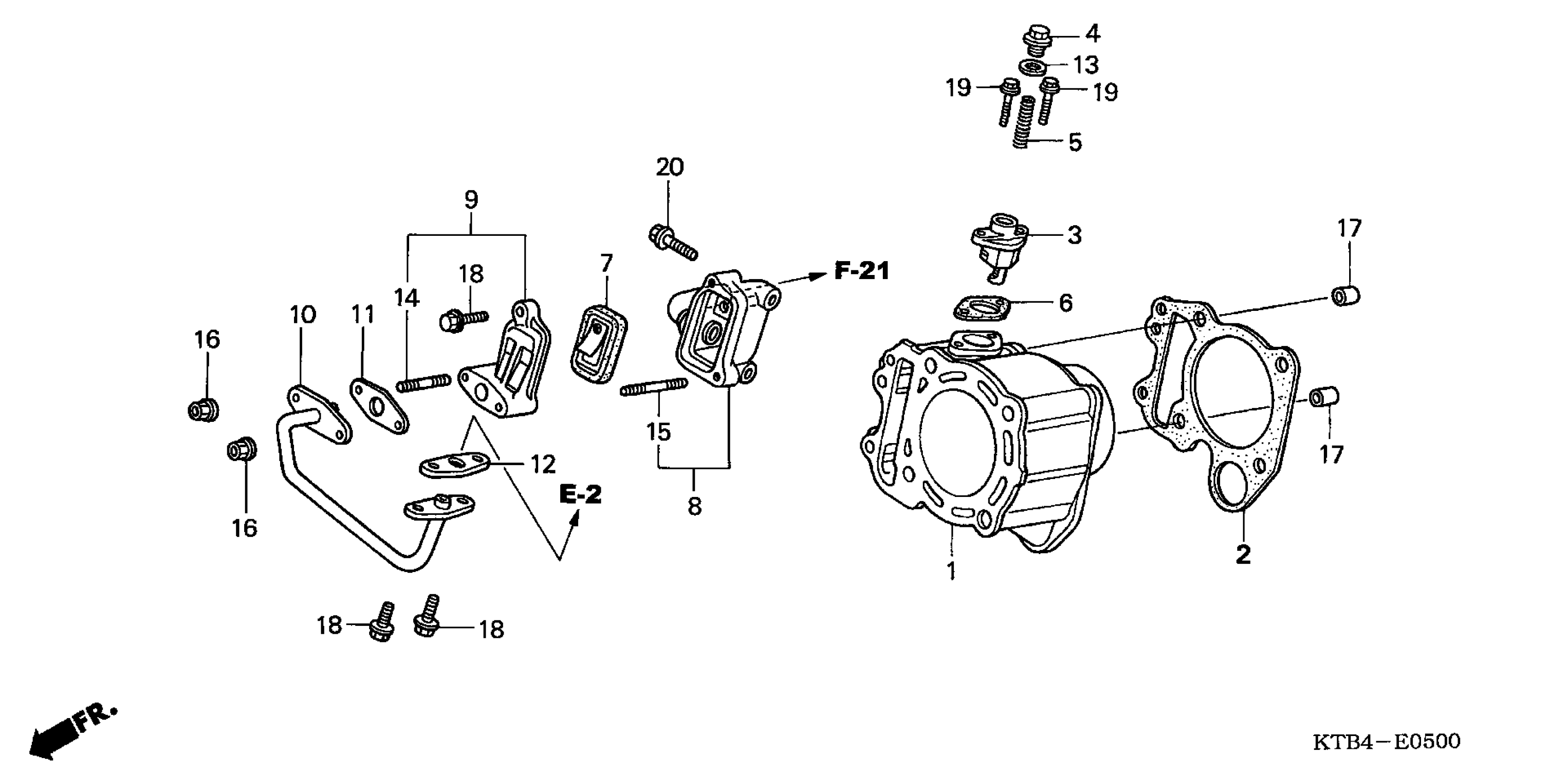

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 CYLINDER + REED VALVE Diagram

CYLINDER

12100-KFG-J00

Unavailable

GASKET, CYLINDER This part replaces 12191-KAB-010.

12191-KAB-020

Unavailable

BODY, ADJUSTER

14551-KAB-003

Unavailable

PLUG, ADJUSTER

14552-KAB-003

$14.36

SPRING, CAM CHAIN ADJUSTER

14553-KAB-003

Unavailable

GASKET, CAM CHAIN ADJUSTER

14555-KAB-771

$8.23

VALVE, REED This part replaces 18601-MJ1-790.

18601-MJ1-791

$22.10

VALVE, REED

18601-MJ1-791

$22.10

CASE, REED VALVE

18610-KFG-J00

$50.20

COVER, REED VALVE

18612-KFG-J00

Unavailable

PIPE, AIR FEED

18640-KFG-J00

Unavailable

GASKET, AIR FEED PIPE

18645-GY6-940

Unavailable

GASKET, AIR FEED PIPE

18646-KFG-J01

$3.11

WASHER, SEALING (11X19X2)

90421-KAB-003

$2.95

BOLT, STUD (6X16)

92900-06016-0B

$1.49

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$2.45

BOLT 2, STUD (6X32)

92900-06032-0E

$2.45

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
