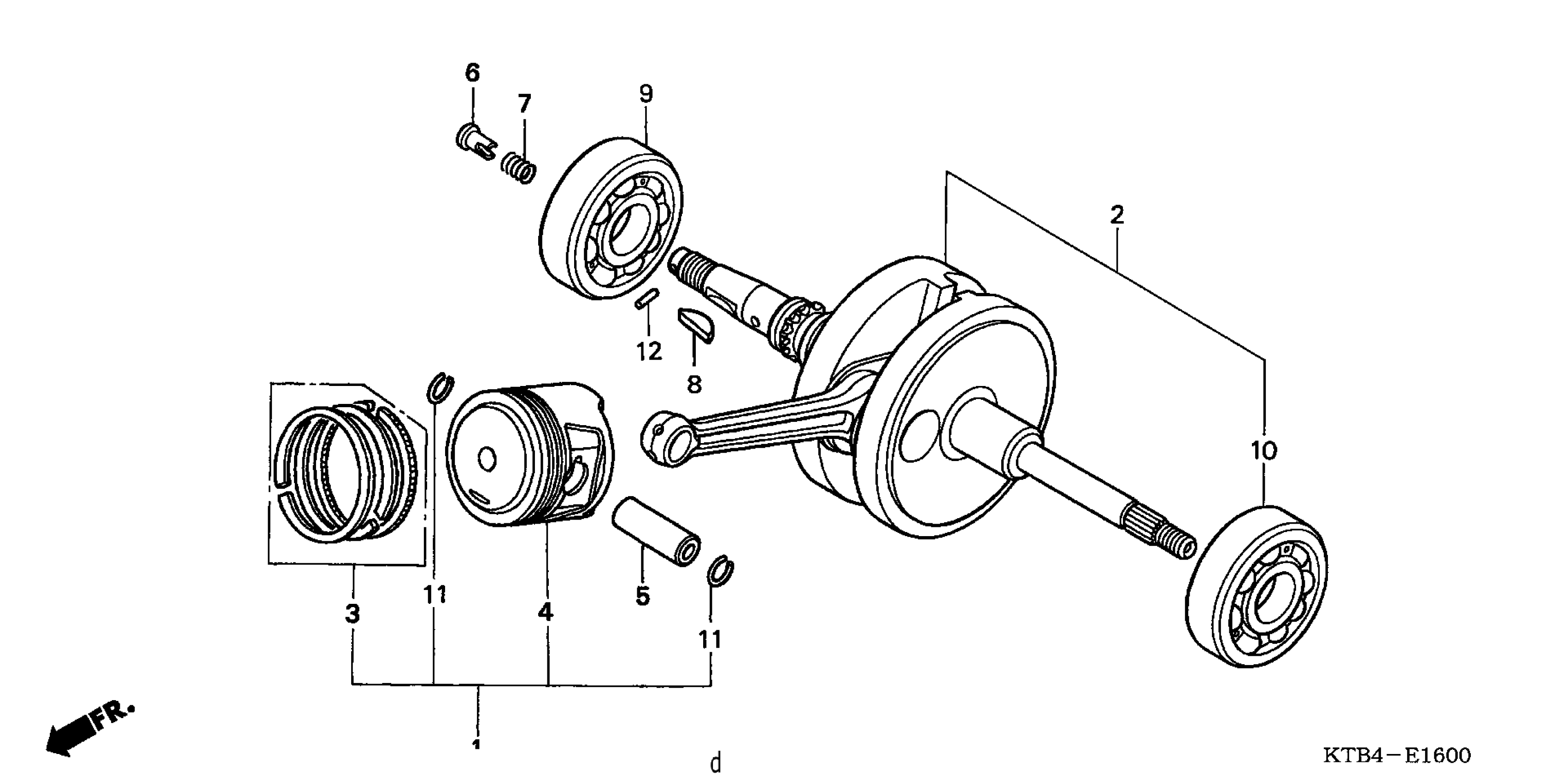

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 CRANKSHAFT + PISTON Diagram

PISTON KIT (STD)

06131-KFG-000

Unavailable

CRANKSHAFT This part replaces 13000-KFG-J02.

13000-KFG-J03

Unavailable

RING SET, PISTON (STD)

13010-KFG-000

Unavailable

PISTON (STD)

13101-KFG-000

Unavailable

PIN, PISTON

13111-KFG-000

Unavailable

THROUGH, OIL

15441-149-000

$10.12

SPRING, OIL THROUGH

15447-149-000

$2.92

KEY, WOODRUFF (4MM)

90741-KS4-020

$2.79

BEARING, RADIAL BALL (35X72X17)

91001-KFG-J01

Unavailable

BEARING, RADIAL BALL (28X72X18)

91001-KFG-013

$40.44

CLIP, PISTON PIN (17MM)

94601-17000

$1.56

ROLLER (2X13.8)

96220-20138

$1.49
