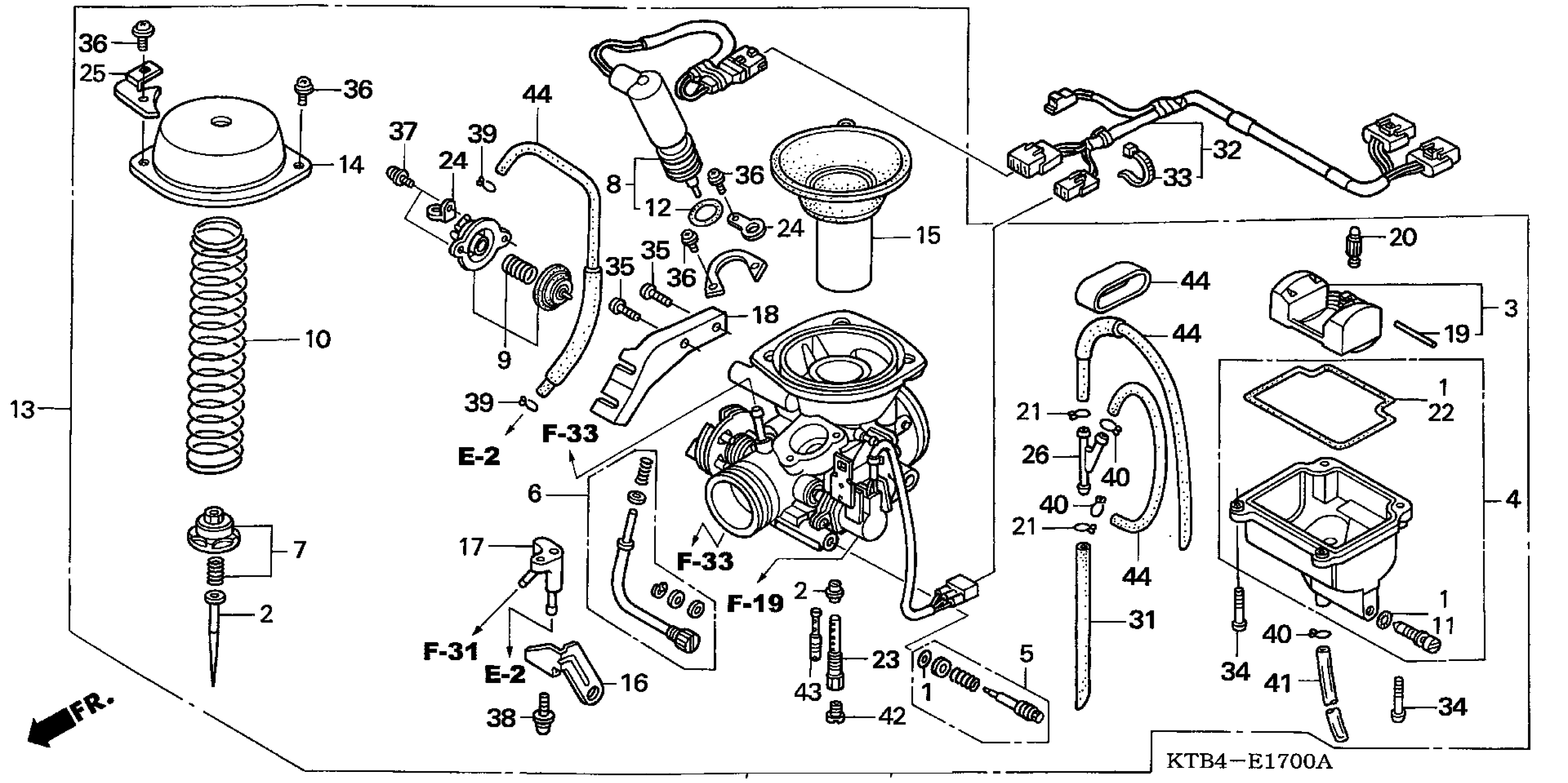

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KFG-000

$25.47

2

NEEDLE SET, JET

16012-KTB-721

Unavailable

3

FLOAT SET This part replaces 16013-HN0-003.

16013-KFR-701

Unavailable

4

CHAMBER SET, FLOAT

16015-KFG-000

$120.31

5

SCREW SET

16016-KFG-J01

$19.34

6

SCREW SET

16028-KFG-000

Unavailable

7

PLATE SET, VALVE

16037-KFB-751

$4.43

8

BYSTARTER SET, AUTO

16046-KTB-003

Unavailable

9

VALVE SET, AIR CUT

16048-KFG-000

Unavailable

10

SPRING, COMPRESSION COIL

16050-KFG-J01

Unavailable

11

O-RING (1.3X4.3)

16076-ND5-004

$2.56

12

O-RING, BYSTARTER

16077-KG8-901

$2.84

13

CARBURETOR ASSY. (VE3BN A)

16100-KTB-773

Unavailable

14

TOP

16107-KM1-003

$43.80

15

PISTON, VACUUM

16111-KFG-000

Unavailable

16

STAY, PLATE

16119-KFG-J01

Unavailable

17

HEATER

16136-KFG-J01

Unavailable

18

STAY, WIRE

16149-KFG-000

$17.38

19

PIN, ARM This part replaces 16152-HN5-671.

16152-HN8-003

$4.08

20

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$32.50

20

VALVE, FLOAT

16155-413-751

$32.50

21

CLIP, TUBE

16163-KM4-004

$2.92

22

GASKET, FLOAT CHAMBER

16163-MW3-A90

$29.00

23

HOLDER, NEEDLE JET

16165-KAB-003

Unavailable

24

BINDER

16179-HA0-003

$12.85

25

HOLDER, CONNECTOR

16179-KFG-000

$6.66

26

JOINT

16180-ML6-671

$15.97

31

TUBE

16197-KTB-003

$6.05

32

SUB-WIRE, ENGINE

32103-KTB-000

$24.51

33

BAND

32902-892-003

$3.65

34

SCREW, PAN (4X14)

93500-04014-0H

$1.49

34

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

35

SCREW, PAN (5X10)

93500-05010-0H

$1.49

36

SCREW-WASHER (4X8)

93892-04008-08

$1.49

36

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

37

SCREW-WASHER (4X10)

93892-04010-08

$1.49

37

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

38

SCREW-WASHER (5X16)

93892-05016-08

$1.49

38

SCREW-WASHER (5X16) This part replaces 93892-05016-18.

93892-05016-08

$1.49

39

CLIP, TUBE (B7)

95002-02079

$1.49

40

CLIP, TUBE (B8)

95002-02089

$1.49

41

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X300)

95003-09001-60M

$3.45

42

JET, MAIN (#98)

99101-KTB-0980

$12.08

43

JET (#40) This part replaces 99103-HM5-0400.

99103-MAZ-0400

$11.06

43

JET (#40)

99103-MAZ-0400

$11.06

44

TUBE

16194-KTB-771

Unavailable
