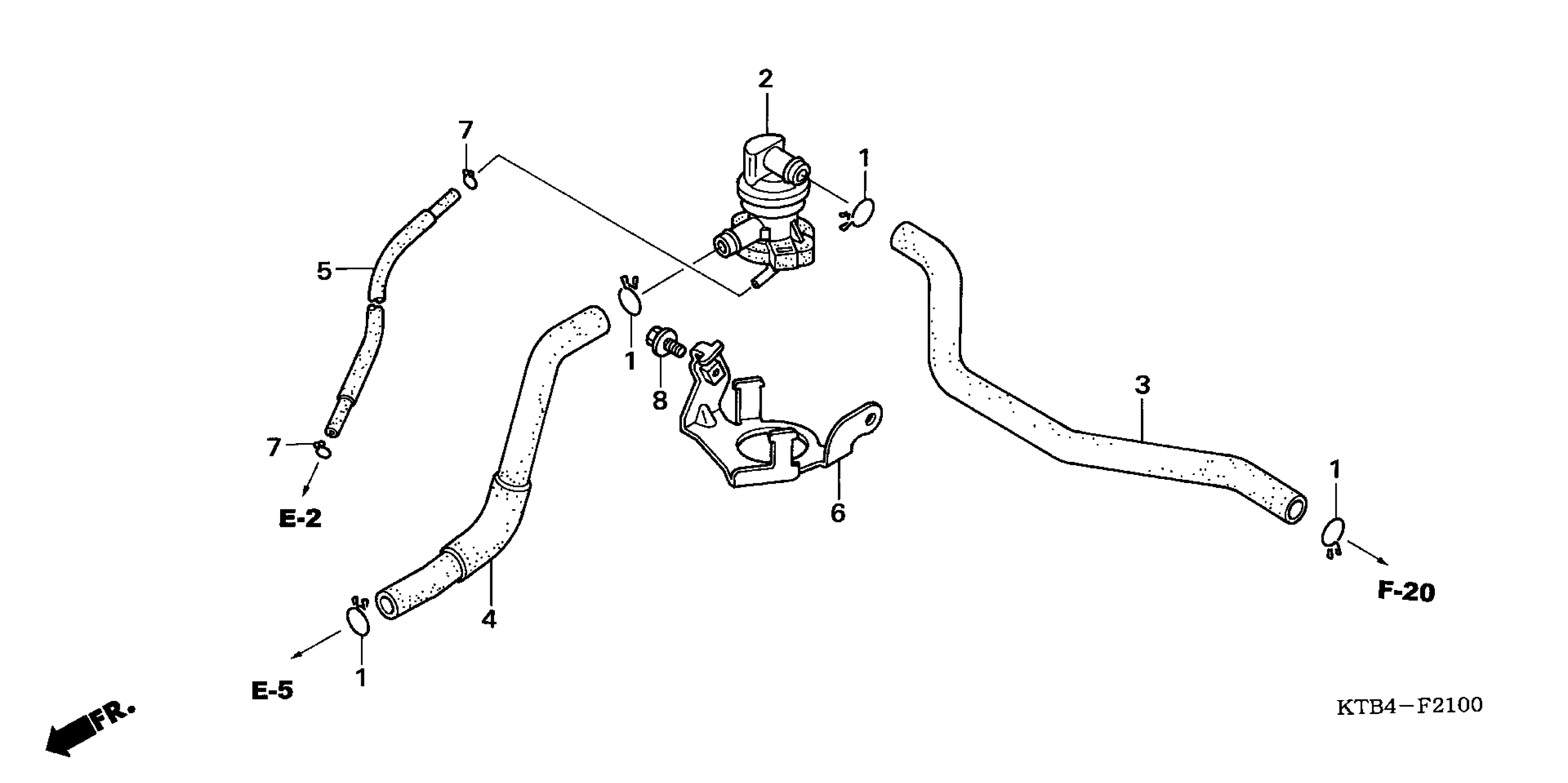

Honda PS250AC (06) BIG RUCKUS, JPN, VIN# JH2MF091-6K100001 AIR INJECTION CONTROL VALVE Diagram

#

Description

Price

1

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

2

VALVE ASSY. This part replaces 18650-KTB-003.

18650-KTB-013

Unavailable

3

TUBE A, AIR IN.

18651-KTB-000

$11.81

4

TUBE B, AIR IN.

18652-KTB-000

$18.58

5

TUBE (3.5X270)

18653-KTB-000

$3.16

6

STAY, AIR INJECTION CONTROL VALVE

18660-KTB-000

$9.75

7

CLIP, TUBE (B7)

95002-02079

$1.09

8

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
