Description

Price

1

LOCK SET

35010-KTB-770

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK

35100-KTB-771

Unavailable

3

BASE, CONTACT

35101-KTB-003

$85.59

4

STAY, SHUTTER KEY

35119-KTB-770

$13.59

5

KEY, BLANK (TYPE1) | (Optional).

35121-MAS-G01

$12.74

6

HANDLEBAR

53100-KTB-000

Unavailable

7

WEIGHT A, HANDLE

53103-KTB-000

Unavailable

8

POST, HANDLE

53110-KTB-000

Unavailable

9

HOLDER, HANDLEBAR (UPPER)

53131-371-000

$32.20

10

COVER, MAIN SWITCH

53281-KTB-770

$21.72

11

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

12

SCREW, OVAL (6X60)

90191-KT7-750

$4.74

13

NUT, U (10MM)

90304-GE8-003

$3.67

14

COLLAR A, HANDLE SETTING

90501-GEZ-000

$2.98

15

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

16

CAP, SOCKET BOLT

91456-371-770

$3.47

17

SCREW, TAPPING (4X10)

93903-24280

$1.49

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

19

BOLT, FLANGE (10X45)

96400-10045-00

$2.25

20

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$2.07

20

BOLT, SOCKET (8X32)

96600-08032-10

$2.07

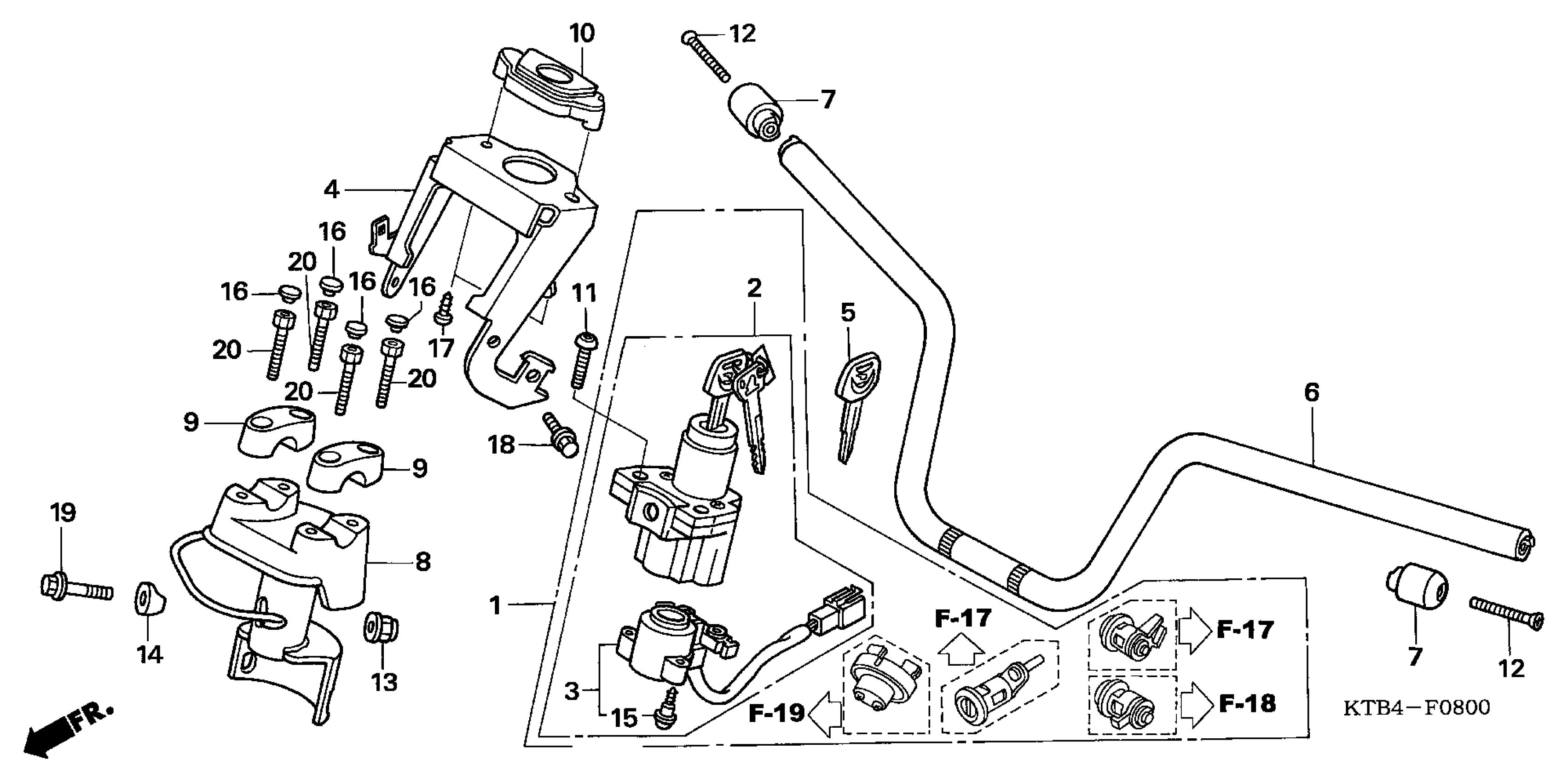

Honda PS250AC (05) BIG RUCKUS, JPN, VIN# JH2MF091-5k099999 HANDLEBAR Diagram

LOCK SET

SWITCH ASSY., COMBINATION & LOCK

BASE, CONTACT

STAY, SHUTTER KEY

KEY, BLANK (TYPE1) | (Optional).

HANDLEBAR

WEIGHT A, HANDLE

POST, HANDLE

HOLDER, HANDLEBAR (UPPER)

COVER, MAIN SWITCH

BOLT, ONE-WAY (8MM)

SCREW, OVAL (6X60)

NUT, U (10MM)

COLLAR A, HANDLE SETTING

SCREW, TAPPING (3X16)

CAP, SOCKET BOLT

SCREW, TAPPING (4X10)

BOLT, FLANGE (6X12)

BOLT, FLANGE (10X45)

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

BOLT, SOCKET (8X32)
