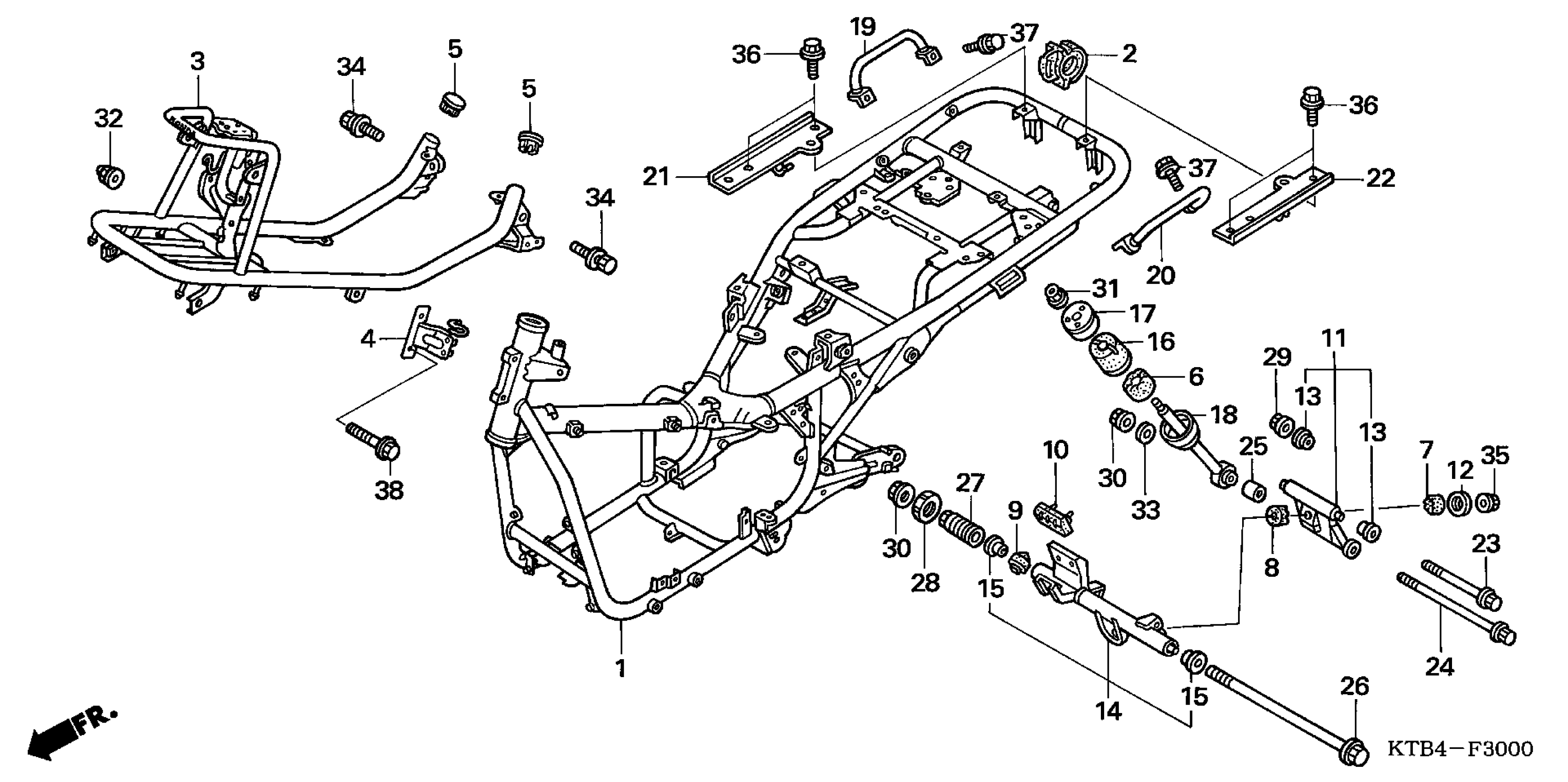

Honda PS250AC (05) BIG RUCKUS, JPN, VIN# JH2MF091-5k099999 FRAME Diagram

#

Description
Price

1

FRAME SET *Y180* (WL) (PARROT YELLOW)

50010-KTB-772ZA

Unavailable

2

CAP, FRAME END

50107-KTB-000

Unavailable

3

PIPE SET (UPPER) *Y180* (WL) (PARROT YELLOW)

50200-KTB-771ZA

Unavailable

4

STAY, PCV

50263-KTB-000

$13.41

5

CAP, PIPE (UPPER)

50264-KTB-000

$4.25

6

RUBBER A, ENGINE HANGER STOPPER

50352-GA7-000

Unavailable

7

RUBBER A, ENGINE HANGER STOPPER

50352-GE0-000

Unavailable

8

RUBBER A, ENGINE HANGER STOPPER

50352-KJ9-000

Unavailable

9

RUBBER, STOPPER

50352-KM1-000

$3.35

10

RUBBER, STOPPER

50352-KS4-000

Unavailable

11

BRACKET SUB-ASSY. B, ENGINE HANGER

50355-KTB-000

$77.88

12

CAP, STOPPER RUBBER

50356-KM1-000

$5.09

13

BEARING B, ENGINE HANGER

50357-KM1-310

$7.06

14

BRACKET SUB-ASSY. A, ENGINE HANGER

50365-KTB-000

$87.03

15

BEARING A, ENGINE HANGER

50367-KS4-310

Unavailable

16

RUBBER B, STOPPER

50373-KAB-000

Unavailable

17

STOPPER, TENSION ROD

50374-KAB-000

Unavailable

18

ROD, TENSION

50380-KFG-000

$46.22

19

GRIP, R. RR. *Y180* (PARROT YELLOW)

77320-KTB-000ZE

Unavailable

20

GRIP, L. RR. *Y180* (PARROT YELLOW)

77330-KTB-000ZE

Unavailable

21

STAY, R. DECK SUPPORT

81120-KTB-770

$8.03

22

STAY, L. DECK SUPPORT

81130-KTB-000

$7.65

23

BOLT, FLANGE (10X167)

90105-KAB-000

$12.41

24

BOLT, FLANGE (12X290)

90106-KFG-000

$9.91

25

COLLAR, ENGINE HANGER BOLT

90107-KAB-770

$5.07

26

BOLT, FLANGE (12X430)

90108-KTB-000

$15.86

27

NUT, FRAME PIVOT COLLAR

90121-KAB-000

$37.16

28

NUT C, STEERING STEM

90304-GB4-680

$6.75

29

NUT, U (10MM)

90304-GE8-003

$3.42

30

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

31

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

31

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

32

NUT, CAP (8MM)

90443-107-000

$2.62

33

WASHER, TENSION ROD

90501-KAB-000

$4.72

34

BOLT-WASHER (8X16)

93406-08016-00

$1.06

35

NUT-WASHER (8MM)

94070-08080

$1.32

36

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

37

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

38

BOLT, FLANGE (8X40)

95701-08040-00

$1.14
