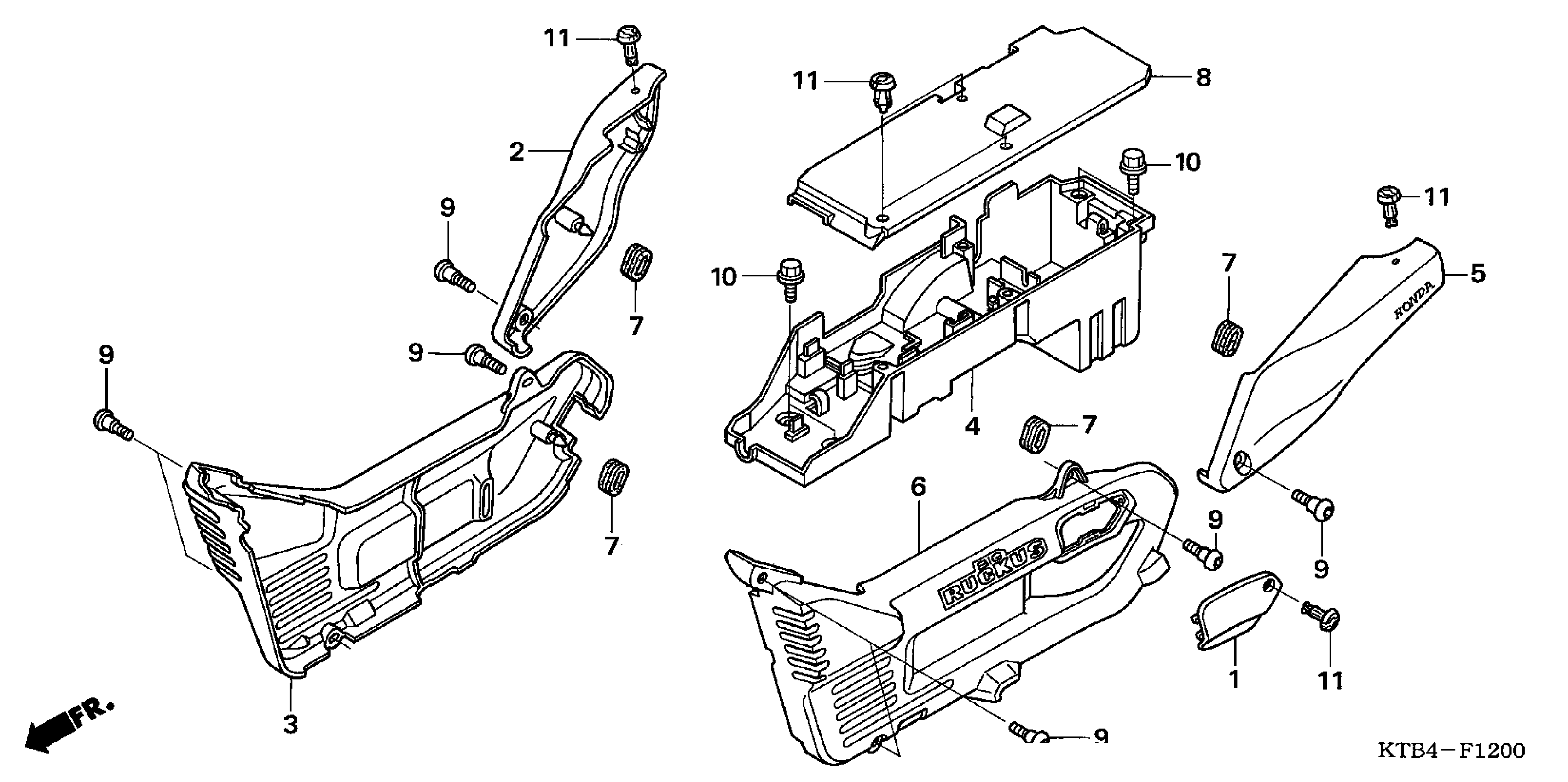

Honda PS250AC (05) BIG RUCKUS, JPN, VIN# JH2MF091-5k099999 BODY COVER Diagram

LID, PLUG MAINTENANCE *NH303M* (MAT AXIS GRAY METALLIC)

80155-KTB-000ZC

Unavailable

COVER SET, R. SIDE *Y180* (WL) (PARROT YELLOW)

83415-KTB-010ZC

Unavailable

COVER SET, R. BODY *NH303M* (WL) (MAT AXIS GRAY METALLIC)

83450-KTB-770ZA

Unavailable

BOX, ELECTRIC

83500-KTB-000

Unavailable

COVER SET, L. SIDE *Y180* (WL) (PARROT YELLOW)

83515-KTB-010ZC

Unavailable

COVER SET, L. BODY *NH303M* (WL) (MAT AXIS GRAY METALLIC)

83550-KTB-770ZA

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

LID, ELECTRIC BOX

83610-KTB-000

Unavailable

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.54

BOLT, FLANGE (6MM)

90111-187-000

$5.21

CLIP, TRIM

90683-GAZ-003

$3.54
