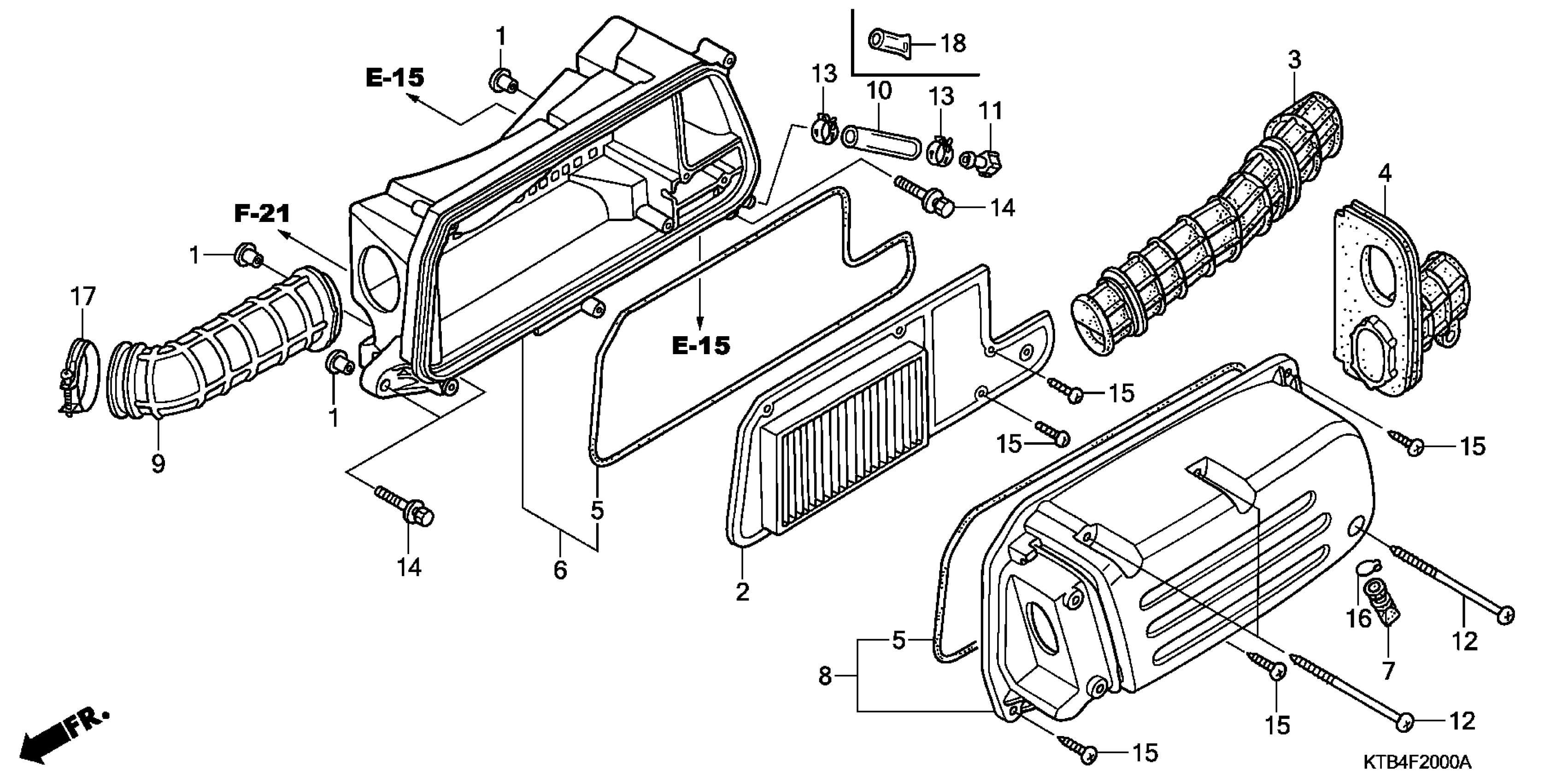

Honda PS250AC (05) BIG RUCKUS, JPN, VIN# JH2MF091-5k099999 AIR CLEANER Diagram

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.92

AIR CLEANER

17210-KFG-010

$31.57

DUCT A, AIR CLEANER

17213-KTB-000

$38.75

DUCT B, AIR CLEANER

17214-KPB-020

Unavailable

SEAL, AIR CLEANER

17218-KFG-000

$6.80

CASE SUB-ASSY., AIR CLEANER

17225-KFG-J02

Unavailable

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.57

COVER SUB-ASSY., AIR CLEANER

17235-KTB-000

Unavailable

TUBE, AIR CLEANER CONNECTING

17254-KFG-000

Unavailable

TUBE, DRAIN

17261-KFG-J00

Unavailable

PLUG, BREATHER TUBE

17370-382-870

$3.74

SCREW, TAPPING (5X65)

90135-KPB-000

$1.49

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.89

BOLT-WASHER (6X30)

93404-06030-00

$1.49

SCREW, TAPPING (5X25)

93903-25580

$1.49

CLIP, TUBE (C12)

95002-80000

$1.49

BAND, AIR CLEANER CONNECTING TUBE (54)

95018-54250

$5.14
