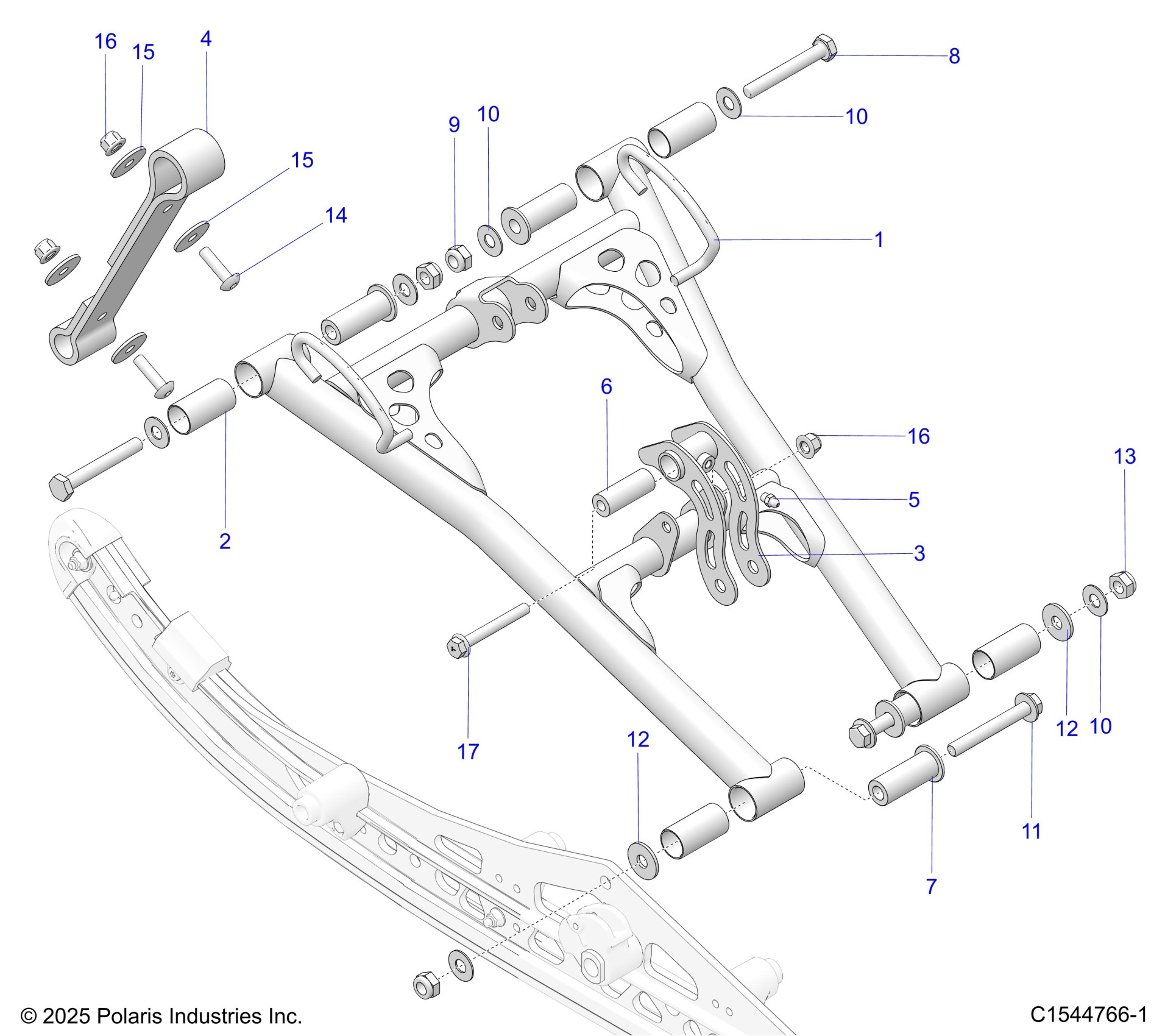

Polaris PROSTAR S4 VOYAGEUR SP 146 (R01) - S26TLF9FSL SUSPENSION, TORQUE ARM, FRONT - S26TLF9FSL (C154766-1) Diagram

ASM-FTA ECOAT [INCLUDES 2]

1543509-329

$309.99

BUSHING-PIVOT

5438875

$11.99

PIVOT, SHOCK, E-COAT

1543515-329

$28.32

STRAP-LIMITER

5414733

$24.27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

BUSHING, RTS PIVOT

5140030

$7.99

SHAFT-PIVOT

5137367

$28.32

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

SCREW-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79
