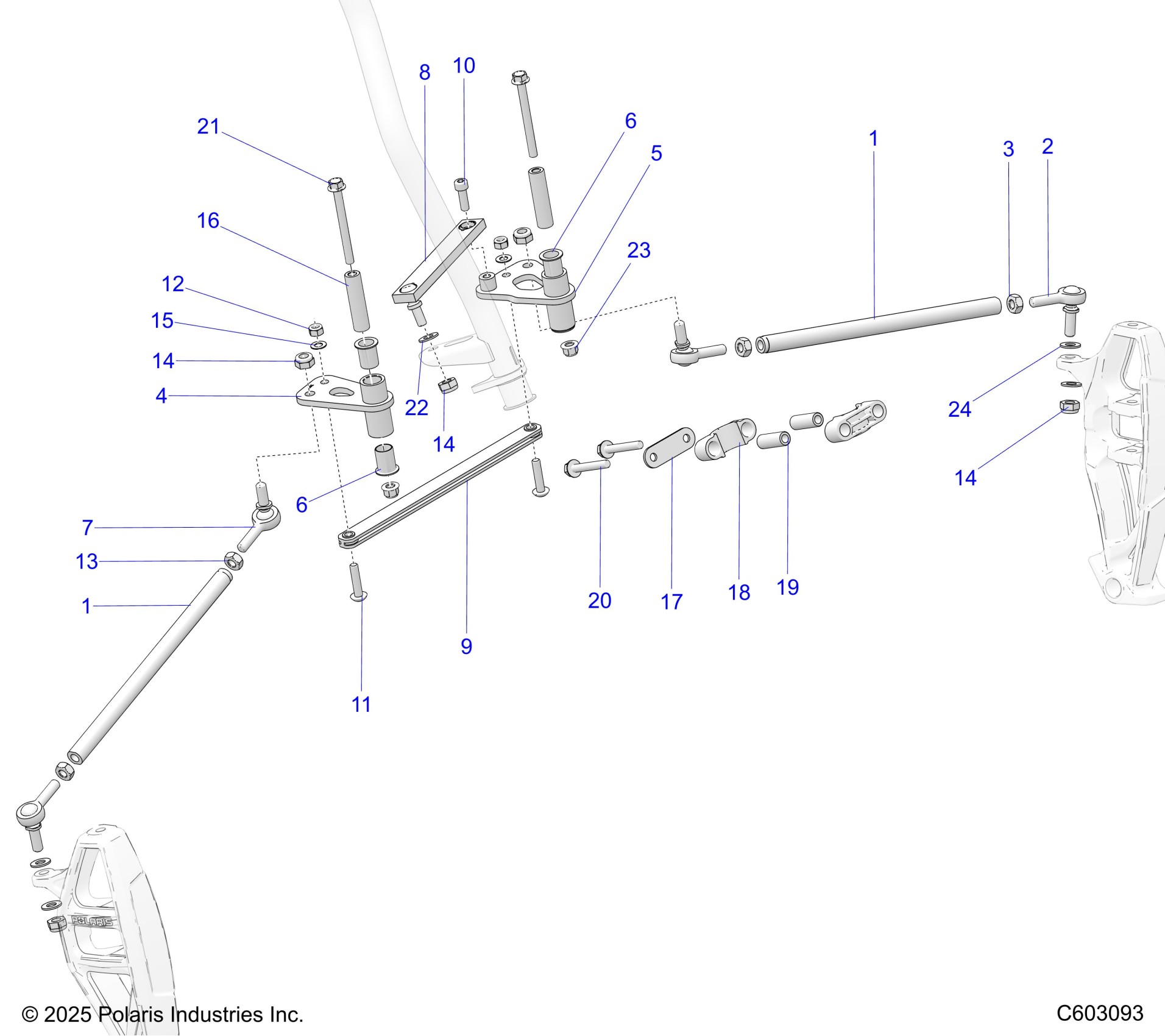

Polaris PROSTAR S4 VOYAGEUR SP 146 (R01) - S26TLF9FSL STEERING, LOWER - S26TLF9FSL (C603093) Diagram

#

Description
Price

1

ROD-TIE [INCLUDES 2 & 3]

5335899

$32.37

1

ROD-TIE [INCLUDES 2 & 3]

5335899

$32.37

2

ROD END-M10X26.5 75DEG RH

7061166

$52.60

3

NUT-M10X1.5 ZOD

7547430

$3.17

4

ASM-IDLER [INCLUDES QTY 2 OF 6]

1824547

$135.54

5

ASM-PITMAN [INCLUDES QTY 2 OF 6]

1824761

$150.06

6

BUSHING-SKI PIVOT

5438460

$15.99

6

BUSHING-SKI PIVOT

5438460

$15.99

7

ROD END-M10X23 75DEG LH

7061165

$52.60

8

ASM-DRAGLINK FIXED

7061186

$97.13

9

ASM-RACK LINK

7061190

$71.99

10

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$3.99

11

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

12

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

13

NUT-M10X1.5 LH ZOD

7547431

$3.19

14

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

14

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

14

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

15

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

16

SHAFT-PIVOT IDLER

5138365

$24.27

17

STRAP-STEERING

5258308

$3.22

18

BUSHING-STEERING POST LOWER

5458495

$4.79

19

BUSHING, STEERING POST

5137796

$3.99

20

SCR-HXFL-M8X1.25X55 8.8 ZODP30

7519242

$4.79

21

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

22

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

WSHR-FL .406X.812X.065-Y

7555806

$1.49
