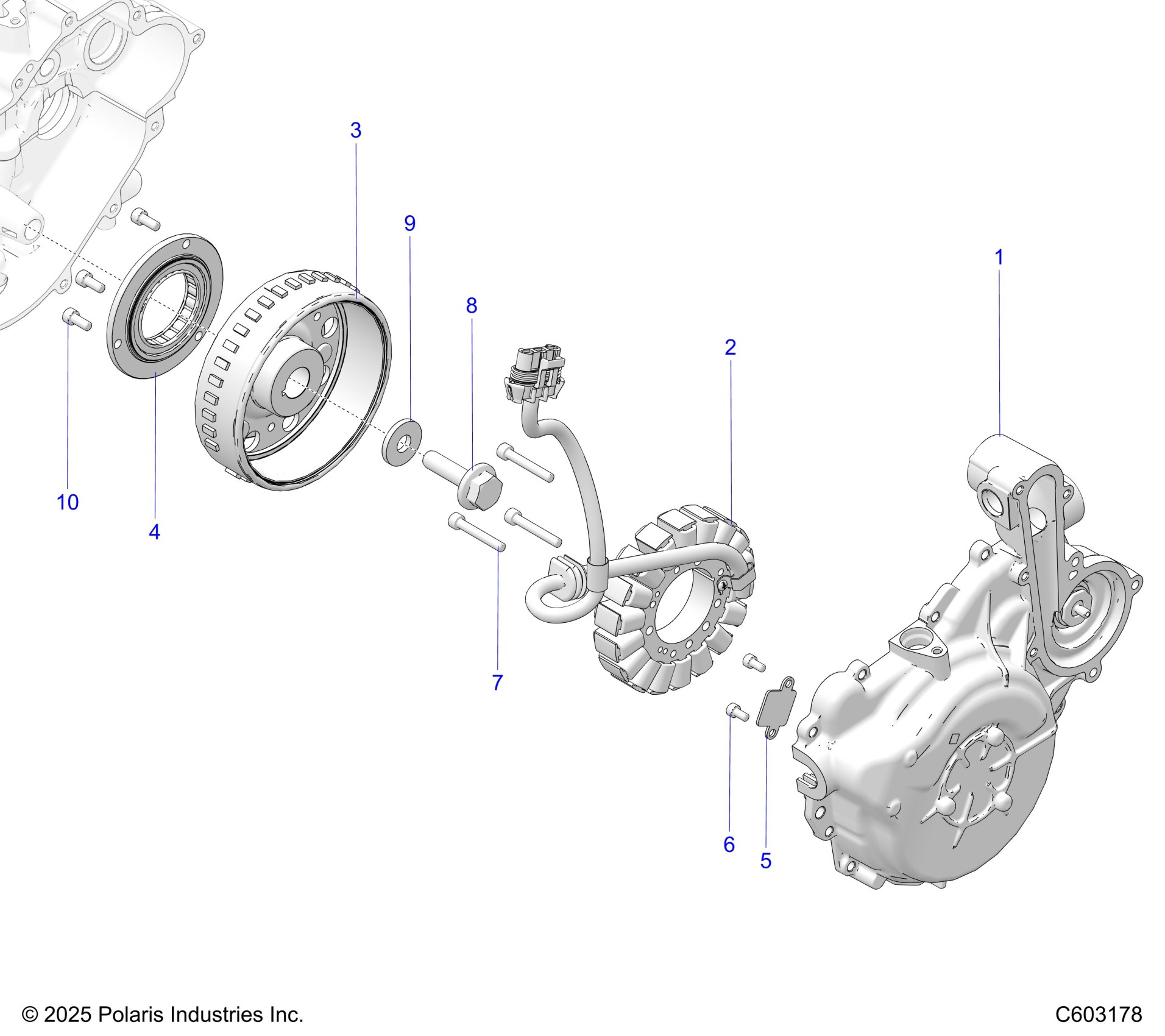

Polaris PROSTAR S4 VOYAGEUR SP 146 (R01) - S26TLF9FSL ENGINE, STATOR AND FLYWHEEL - S26TLF9FSL (C603178) Diagram

ASM-COVER,STATOR [SEE ENGINE, COOLING SYSTEM/WATER PUMP]

-------

Unavailable

STATOR-560W SNOW

4019953

$488.95

FLYWHEEL-SNOW 4S 36-2

4019111

$379.99

ASM-SPRAG CLUTCH,HUB,START

1205940

$114.99

BRACKET, RETAINER, WIRE

5255473

$7.19

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.19

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.99

WSHR-32X12X4,HARD

7556885

$5.59

SCREW-M6X1.0X14.0,HX/SOC/CP-Y/D

7517431

$5.59
