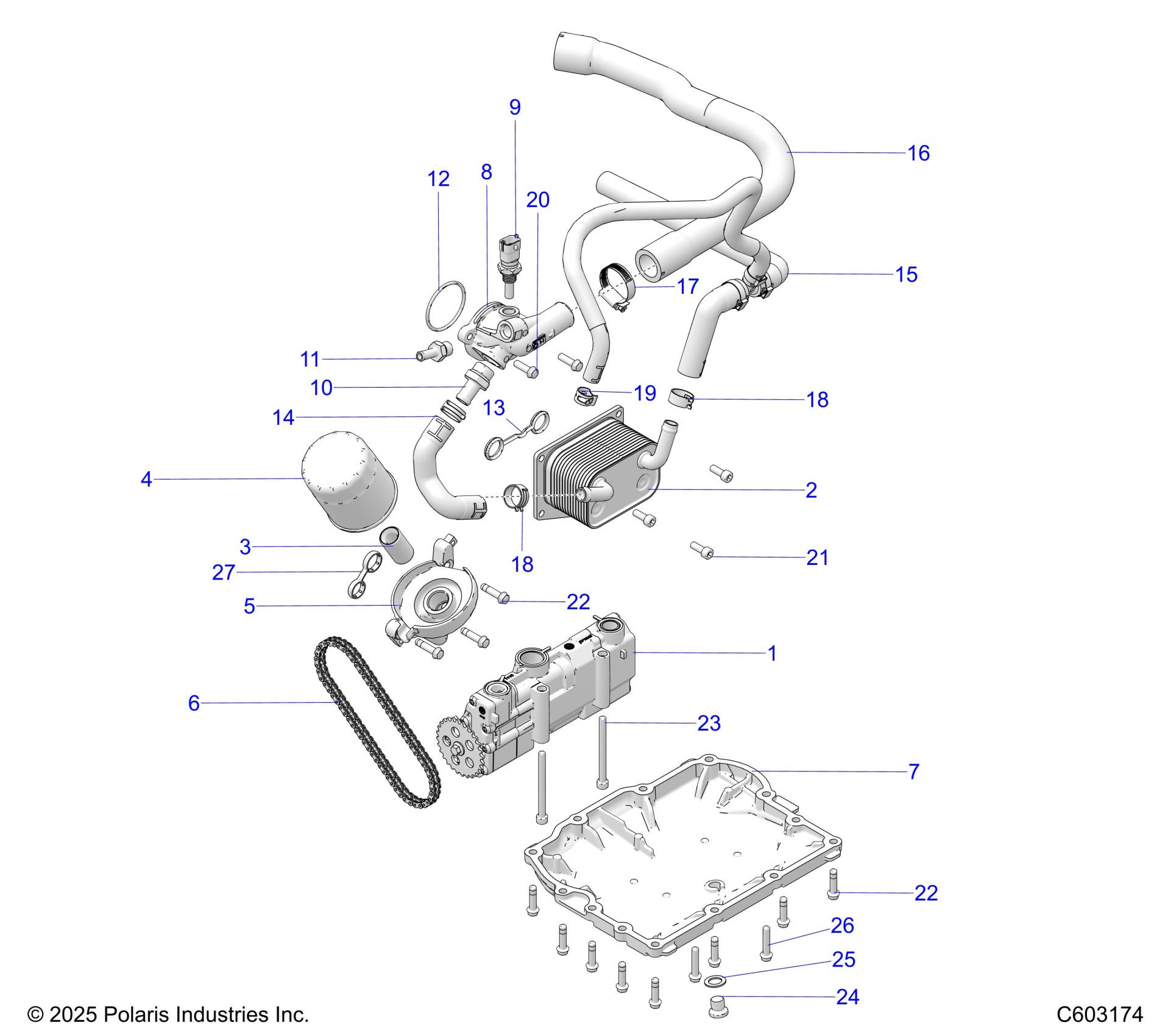

Polaris PROSTAR S4 VOYAGEUR SP 146 (R01) - S26TLF9FSL ENGINE, OIL PUMP/FILTER/COOLER - S26TLF9FSL (C603174) Diagram

#

Description
Price

1

ASM-OIL PUMP,DRY SUMP

1205921

$244.99

2

COOLER-OIL,SNOW

1244652

$239.99

3

ADAPTOR-FILTER,STRAIGHT

2521530

$31.99

4

FILTER-OIL (2.93)

2522606

$14.99

5

ADAPTER-OIL FILTER, MACH.

3024232

$31.99

6

CHAIN-OIL PUMP DRIVE

3222320

$19.99

7

COVER-SUMP,MACH

5142204

$44.51

8

COVER-WATER OUTLET W/FITTINGS [INCLUDES 9-11]

1241349

$91.99

9

SENSOR-THERMISTER

4010644

$87.13

10

FITTING-1/2" BARB 3/4-16 ORFS

7052729

$27.99

11

FITTING-5/16"BARB 1/2-20 ORFS

7052730

$83.59

12

O-RING

5414591

$3.22

13

SEAL-OIL COOLER

3610400

$4.79

14

HOSE-OIL COOLER OUT

5417920

$24.27

15

HOSE-ASM,ETB-OIL COOLER

5417882

$94.99

16

HOSE-BOTTLE/ENGINE

5418559

$36.41

17

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

18

CLAMP-HOSE,SPRING .81

7081026

$7.99

18

CLAMP-HOSE,SPRING .81

7081026

$7.99

19

CLAMP, HOSE, 14.0/10

7082198

$2.39

20

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

21

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.99

22

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

22

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

23

SCR-M6X1.0X70MM SOC/CAP-Y/D

7517807

$4.79

24

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

25

WASHER-19X12X1.3,COPPER

5812232

$1.59

26

SCR-HXFLG-M6X1.0X30 8.8 ZY3

7519884

$1.49

27

SEAL-OIL FILTER ADAPTER

3610322

$6.46
