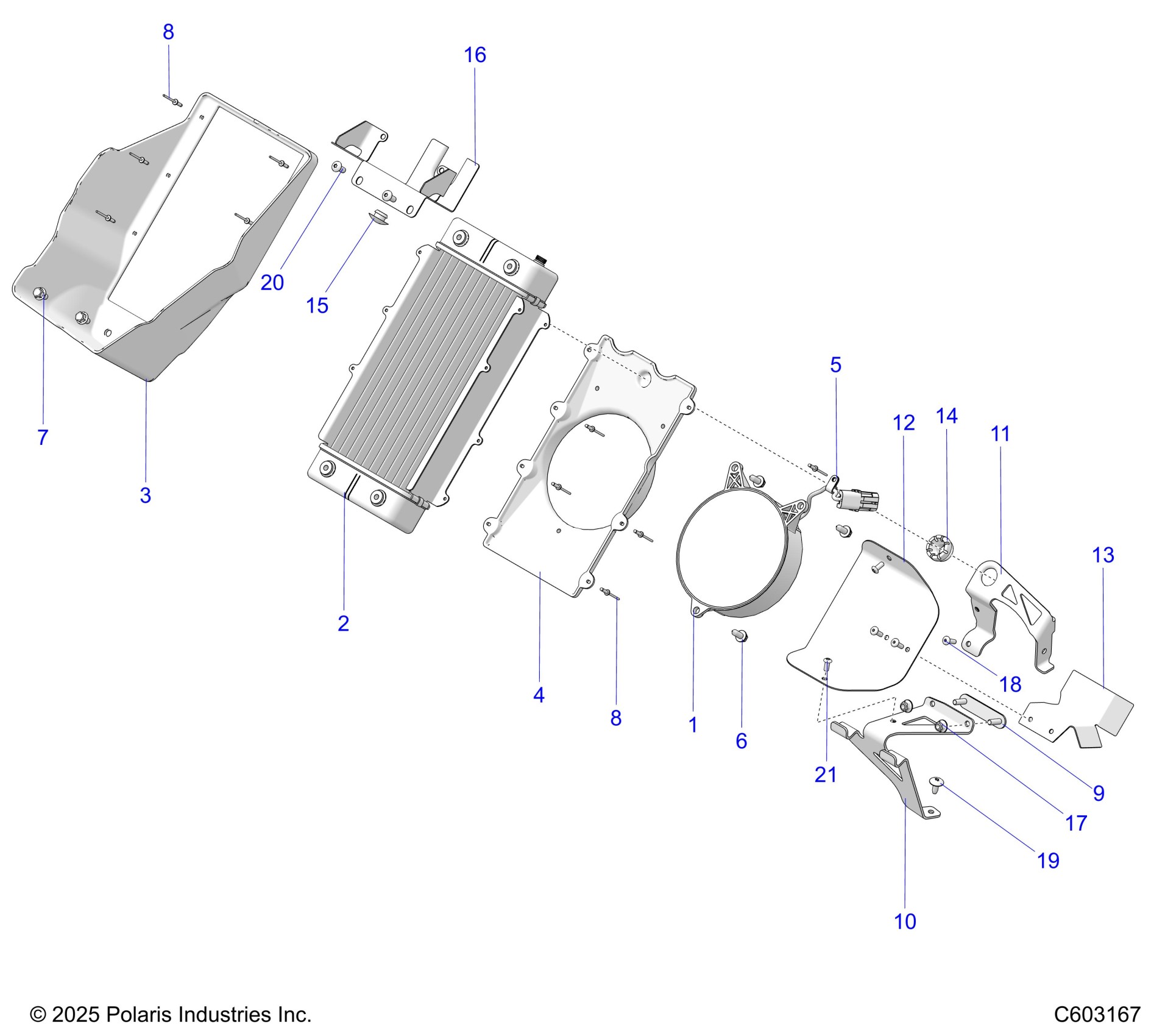

Polaris PROSTAR S4 VOYAGEUR SP 146 (R01) - S26TLF9FSL ENGINE, COOLING, RADIATOR - S26TLF9FSL (C603167) Diagram

#

Description
Price

1

ASM-CAC FAN

1240621

$209.99

2

ASM-RADIATOR CORE

1244838

$329.19

3

SHROUD-RADIATOR UPPER

5459727

$48.56

4

SHROUD-RADIATOR LOWER

5465845

$40.46

5

CLAMP-NYLON, CABLE, 1/4"

7080539

$4.79

6

SCR-#14X3/4 LG,HI/LO/TAPER-M

7512095

$4.79

7

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$3.99

8

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

8

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

9

ASM-STUD PLATE

1025583

$8.79

10

ASM-BRKT RADIATOR LOWER

1026262

$44.51

11

ASM-BRKT RADIATOR UPPER

1028456

$64.99

12

SHIELD-RADIATOR

5270009

$20.22

13

SHIELD-FRAME TUBE LH

5270552

$20.22

14

GROMMET-LATCH 75A SIL

5418397

$2.39

15

GROMMET, SEAT, BASE

5413441

$3.99

16

BRACKET-LOAD CELL

5268314

$64.99

17

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

19

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$1.49

20

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

21

SCR-TXBH-M5x0.8x12 10.9ZPC P30

7520967

$3.99
