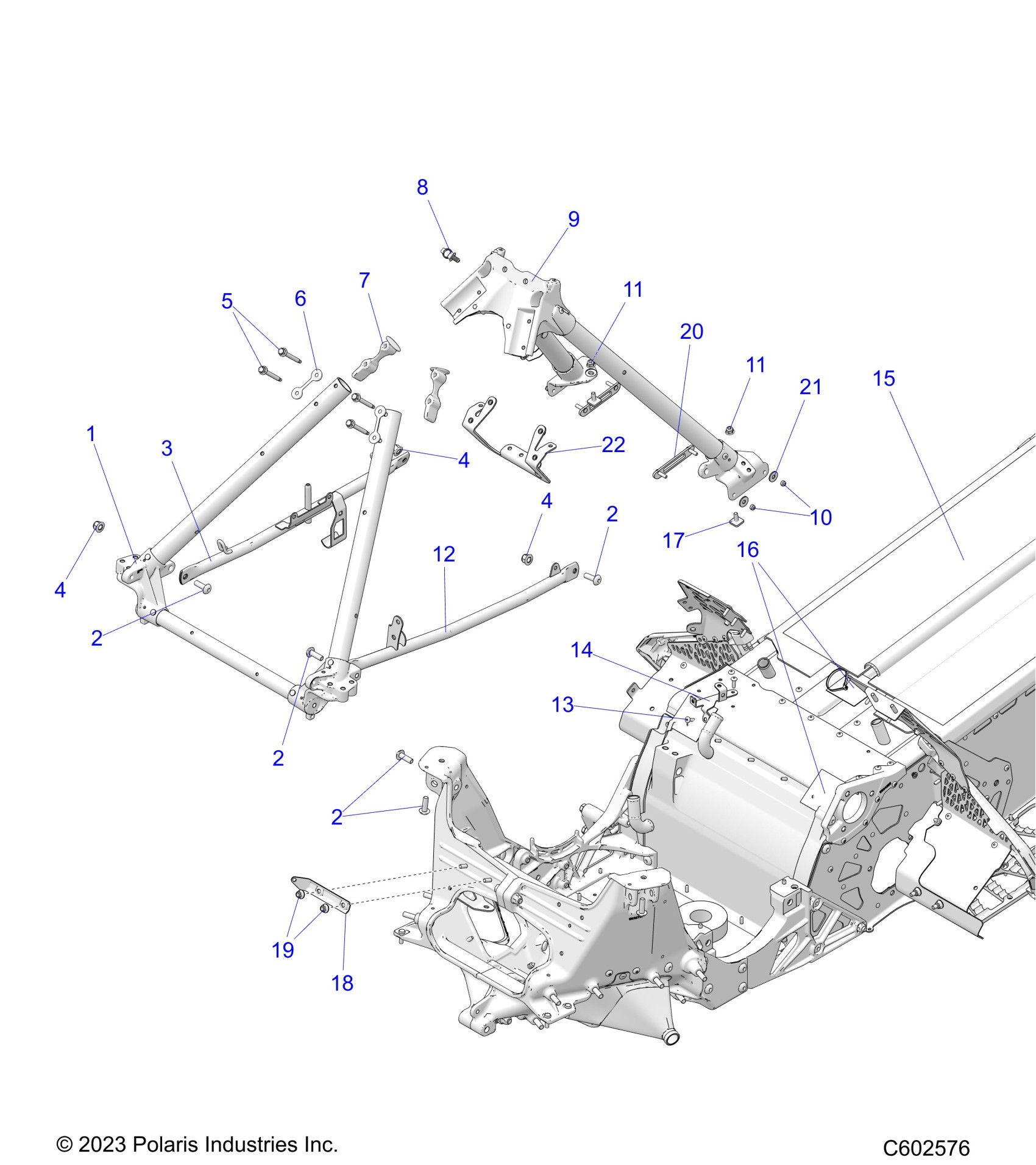

Polaris PROSTAR S4 VOYAGEUR SP 146 (R01) - S26TLF9FSL CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S26TLF9FSL (C602576) Diagram

#

Description
Price

1

ASM-FRAME TUBLR FRNT W/WNCH MT

1022777

$314.99

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

3

WELD-TUBE BRACE RH NRW BLK

1024667-067

$284.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

5

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

6

SHIM-TUBE, CAST

5633083

$6.99

7

SPACER, TUBE CAST

5633122

$9.59

8

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

9

ASM-TUBE FRAME REAR

1024584

$764.99

10

NUT-M5X.8,HX NYL-Y

7546601

$1.49

11

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

11

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

12

WELD-TUBE BRACE LH BLK

1025314-067

$64.99

13

RIVET-3/16-.090-.290

7661637

$1.49

14

ASM-BRKT SOLENOID

1026980

$32.37

15

ASM-CHASSIS 146 S4 BLK [INCL. BULKHEAD]

1027512-067

$2,634.99

16

PAD, 2.5"X2.5"

5814187

$4.03

17

SCR-SPCL M6X1.0X16 8.8 ZC

7520514

$3.99

18

BRACKET-PIPE ECOAT

5269123-329

$52.60

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

20

ASM-STUD PLATE 5MM

1023672

$12.79

21

WSHR-FL,5.5X1.0,(10)

7556071

$4.79

22

ASM-BRKT HANDLEBAR CONNECTOR

1028173

$52.60
