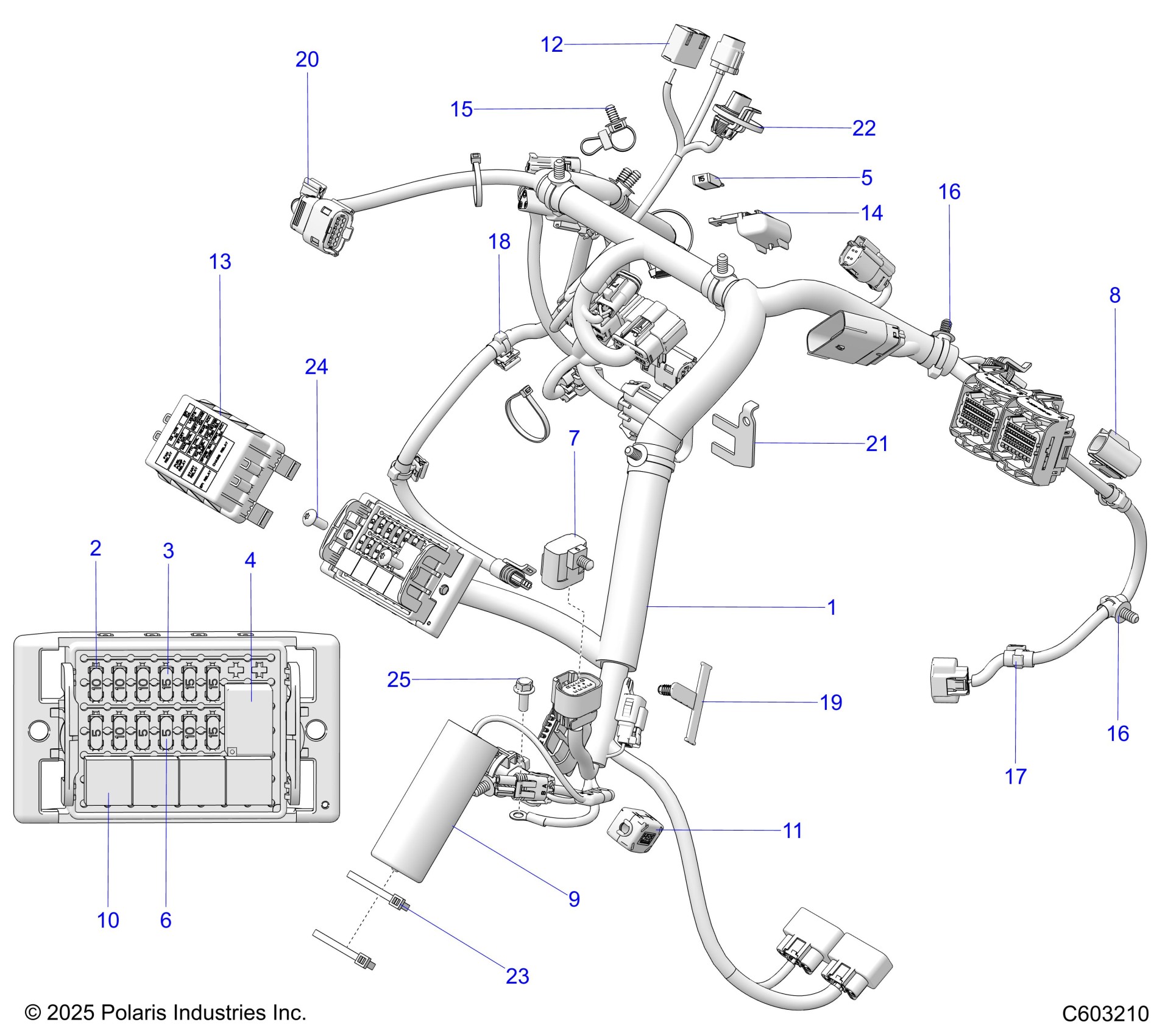

Polaris PROSTAR S4 TITAN ADVENTURE/ADVENTURE ULTIMATE (R01) - S26AJE9FSL/AJN9FSL/FSM ELECTRICAL, HARNESS, MAIN - S26AJE9FSL/AJN9FSL/FSM (C603210) Diagram

HARNESS-MAIN 4S WD MTRX [INCLUDES 2-20]

2418034

$756.79

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-15AMP,MINI BLADE

4010859

$7.19

RELAY, SPDT, SERIERS 301, SEALED

4011284

$31.99

BREAKER, CIRCUIT, 15 AMP.

4011406

$63.99

FUSE-5A,MINI BLADE

4011652

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

COVER-FUSEHOLDER

4012260

$9.70

CAPACITOR, 66,000 MICRO F

4015987

$82.29

RELAY, SPST, 12V, 20A, SEALED, HFA

4016186

Unavailable

CLAMP-FERRITE CORE

4019868

$64.99

CONNECTOR-SW, OTTO K1, 2 WIRE

4080468

$10.51

COVER-FUSEBOX

4081661

$107.99

COVER-CIRCUIT BREAKER

5459646

$3.99

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

CLIP-XMAS, 31MM OFFSET, TAPE-ON

7082412

$3.19

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

BRKT-CONNECTOR STATOR

5272583

$6.46

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19
