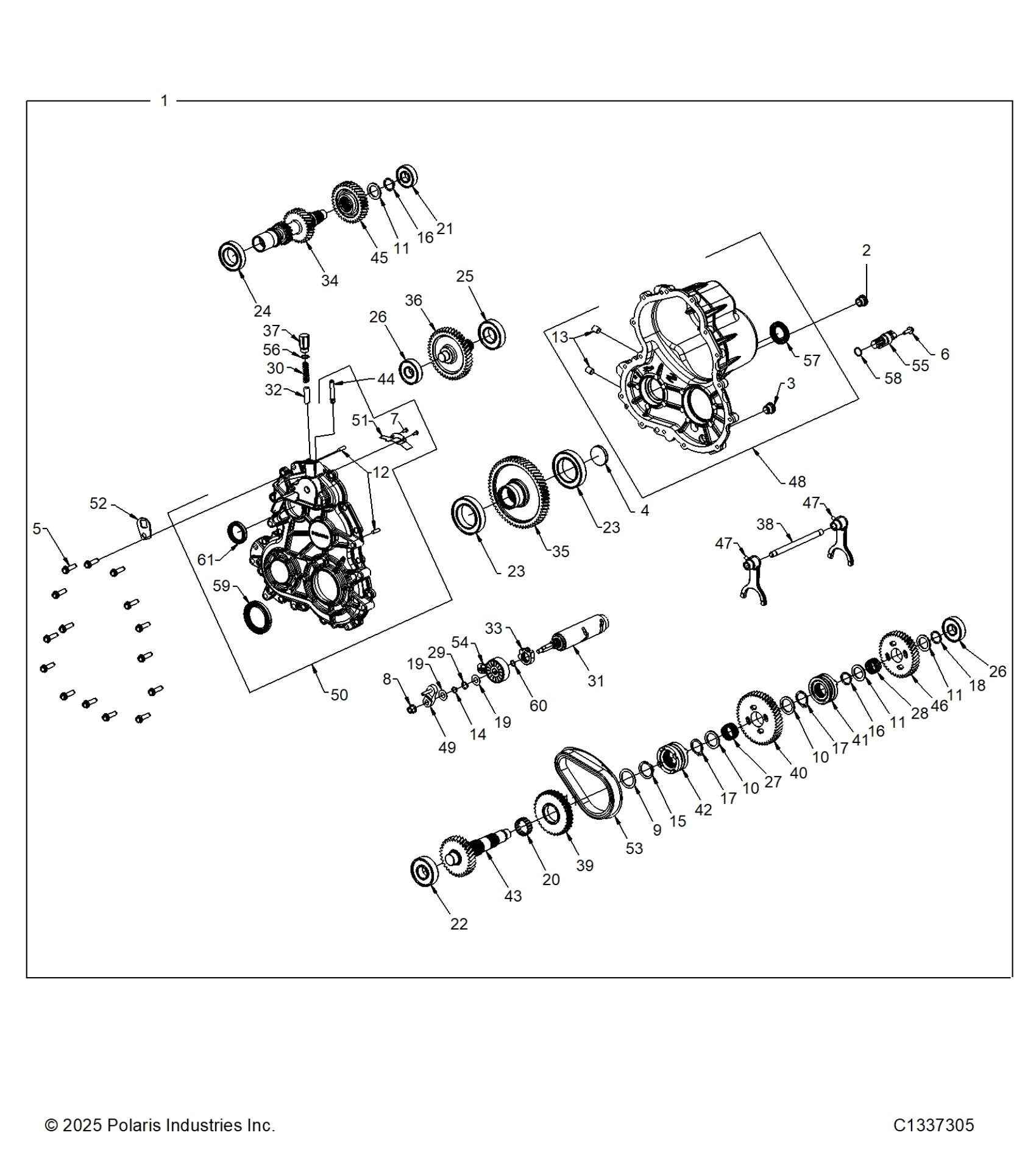

Polaris PROSTAR S4 TITAN ADVENTURE/ADVENTURE ULTIMATE (R01) - S26AJE9FSL/AJN9FSL/FSM DRIVE TRAIN, GEARCASE - S26AJE9FSL/AJN9FSL/FSM (C1337305) Diagram

#

Description
Price

1

ASM-GEARCASE 2.175 HLNR

1337305

$1,812.79

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

PLUG, EXPANSION , 1.662 X .276

3236086

$36.41

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

7

SOCKET-TRX PH M4X0.7X10(105523

3236301

$4.99

8

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

9

WASHER-32.3X42X1.5(115288)

3235211

$10.39

10

WASHER, 28.3 X 38 X 2.75

3236057

$19.99

10

WASHER, 28.3 X 38 X 2.75

3236057

$19.99

11

WASHER, 24.3 X 35 X 2.75

3236058

$27.99

11

WASHER, 24.3 X 35 X 2.75

3236058

$27.99

11

WASHER, 24.3 X 35 X 2.75

3236058

$27.99

12

PIN, DOWEL 6 X 20

3234330

$7.19

13

PIN-DOWEL M10X14

7662309

$39.99

14

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

15

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

16

RING-RETAIN EXT24X1.75(130373)

3236060

$12.79

16

RING-RETAIN EXT24X1.75(130373)

3236060

$12.79

17

RING-RETAIN,EXT,28X2.4(130372)

3236059

$23.99

17

RING-RETAIN,EXT,28X2.4(130372)

3236059

$23.99

18

RING-RETAINING SPIRAL

3236150

$52.60

19

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

19

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

20

BEARING, NEEDLE

3233014

$43.99

21

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

22

BEARING

3233020

$47.99

23

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

23

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

24

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

25

BEARING-BALL 6206 C3 30X62X16

3233790

$27.99

26

BEARING BALL,6304STD 20X52X15

3234651

$15.99

26

BEARING BALL,6304STD 20X52X15

3234651

$15.99

27

BEARING-NEEDLE 28 x33 x17

3236061

$52.37

28

BEARING-NEEDLE 24X30X17

3236062

$38.08

29

WASHER-SPRING,210393

3235327

$9.59

30

SPRING-COMPRESSION (210560)

3236063

$24.99

31

DRUM-SHIFT, MACH

3236064

$266.25

32

BULLET DETENT

3234695

$31.99

33

STAR-DETENT

3236065

$40.46

34

SHAFT-INPUT

3236066

$304.99

35

GEAR-OUTPUT 59T

3236067

$274.99

36

GEAR-BRAKE 43T

3236068

$274.99

37

PLUG, DETENT

3234715

$35.99

38

RAIL-SHIFT SHAFT(353622)

3235542

$27.99

39

SPROCKET-REVERSE, 33T

3236071

$159.99

40

GEAR-LOW 47T

3236072

$194.99

41

ENGAGEMENT DOG, 4 FACE

3236075

$104.99

42

ENGAGEMENT DOG, 4 FACE

3236076

$119.99

43

SHAFT-MID, 31T

3236073

$145.70

44

TUBE-ROLLOVER VENT (356005)

3239330

$44.99

45

GEAR, 35T

3239508

$159.99

45

GEAR, HIGH 40T

3239509

$169.99

47

SUBASSY-SHIFT FORK

3236077

$76.89

47

SUBASSY-SHIFT FORK

3236077

$76.89

48

SUBASSY-RH CASE

3236078

$529.99

49

SUBASSY-BELLCRANK

3236080

$89.99

50

SUBASSEMBLY-LH COVER

3239329

$639.99

51

DEFLECTOR-OIL (431116)

3239331

$44.99

52

BRACKET, BRAKE ISOLATOR

3239354

$29.99

53

CHAIN-SILENT, 13W 44P

1332767

$131.99

54

SWITCH-ROTARY

3236084

$121.41

55

SENSOR-SPEED (520332)

3239663

$131.99

56

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

57

SEAL, TRIPLE LIP 1.180X1.850X0.315 VITON

3235848

$31.99

58

O-RING, -016 VITON

3236279

$7.19

59

SEAL, TRIPLE LIP 40 X 70 X 7

3233878

$32.37

60

O-RING, -012 VITON

3233836

$6.87

61

SEAL-35x47x8

3234307

$15.99
