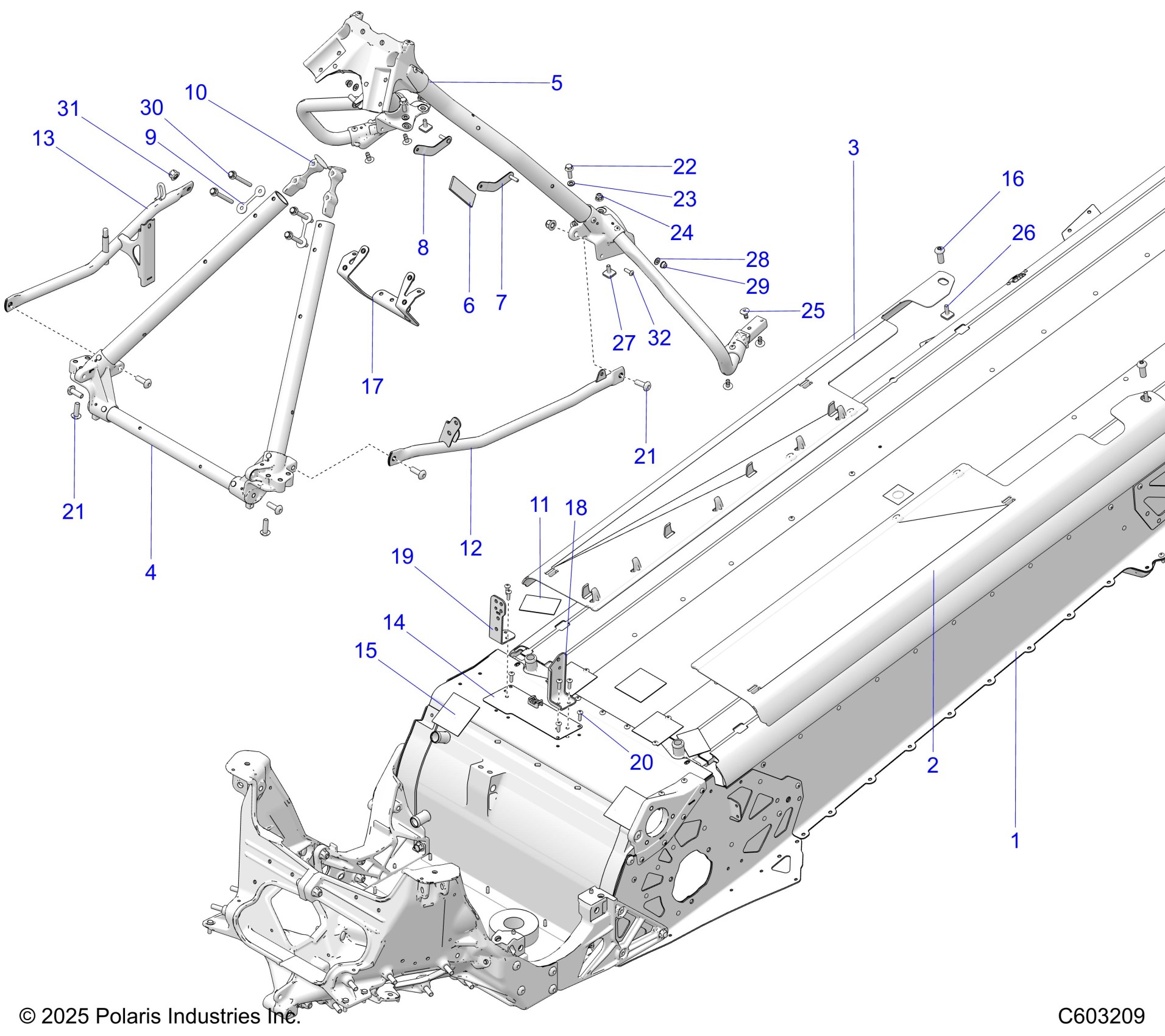

Polaris PROSTAR S4 TITAN ADVENTURE/ADVENTURE ULTIMATE (R01) - S26AJE9FSL/AJN9FSL/FSM CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S26AJE9FSL/AJN9FSL/FSM (C603209) Diagram

ASM-TUNNEL 155 WIDE BLK

1027755-067

$2,289.99

ASM-CHASSIS 155 WIDE 4S BLK [INCLUDES BULKHEAD]

1027759-067

$1,812.79

COVER-TUNNEL LH

5459752

$104.99

COVER-TUNNEL RH

5459753

$104.99

ASM-FRAME TUBLR FRNT W/WNCH MT

1022777

$314.99

ASM-TUBE FRAME REAR

1028046

$389.99

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$28.32

ASM-STUD PLATE M5 LH

1023172

$24.99

ASM-STUD PLATE M5 RH

1023173

$24.99

SHIM-TUBE CAST 31.76 DIA

5633083

$6.99

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

PAD-40X63.5

5814353

$9.70

WELD-TUBE BRACE LH BLK

1024927-067

$114.99

WELD-TUBE BRACE RH BLK

1024361-067

$114.99

BRKT-ROUTING BASE 4S

5274326

$8.79

PAD, 2.5"X2.5"

5814187

$4.03

NUT-BARREL 6MM

7528196

$4.39

ASM-BRKT HANDLEBAR CONNECTOR

1028173

$52.60

BRKT-CHASSIS COOLING

5264163

$11.32

BRKT-ELECTRICAL

5274078

$34.99

RIVET-3/16-.090-.290

7661637

Unavailable

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

WSHR-6.4X12.0X1.6 Z

7556088

$4.79

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

SCR-TXTH-M6X1.0X15 8.8 P80 ZOD

7520147

$3.99

SCREW-SPL M6X1.0X20 8.8 ZOD

7520464

$3.99

SCR-SPCL M6X1.0X16 8.8 ZC

7520514

$3.99

WASHER-FLAT 12.5X5.3X.8 ZOD

7556988

Unavailable

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

RIVET-3/16-.214-.420

7661130

$1.49
