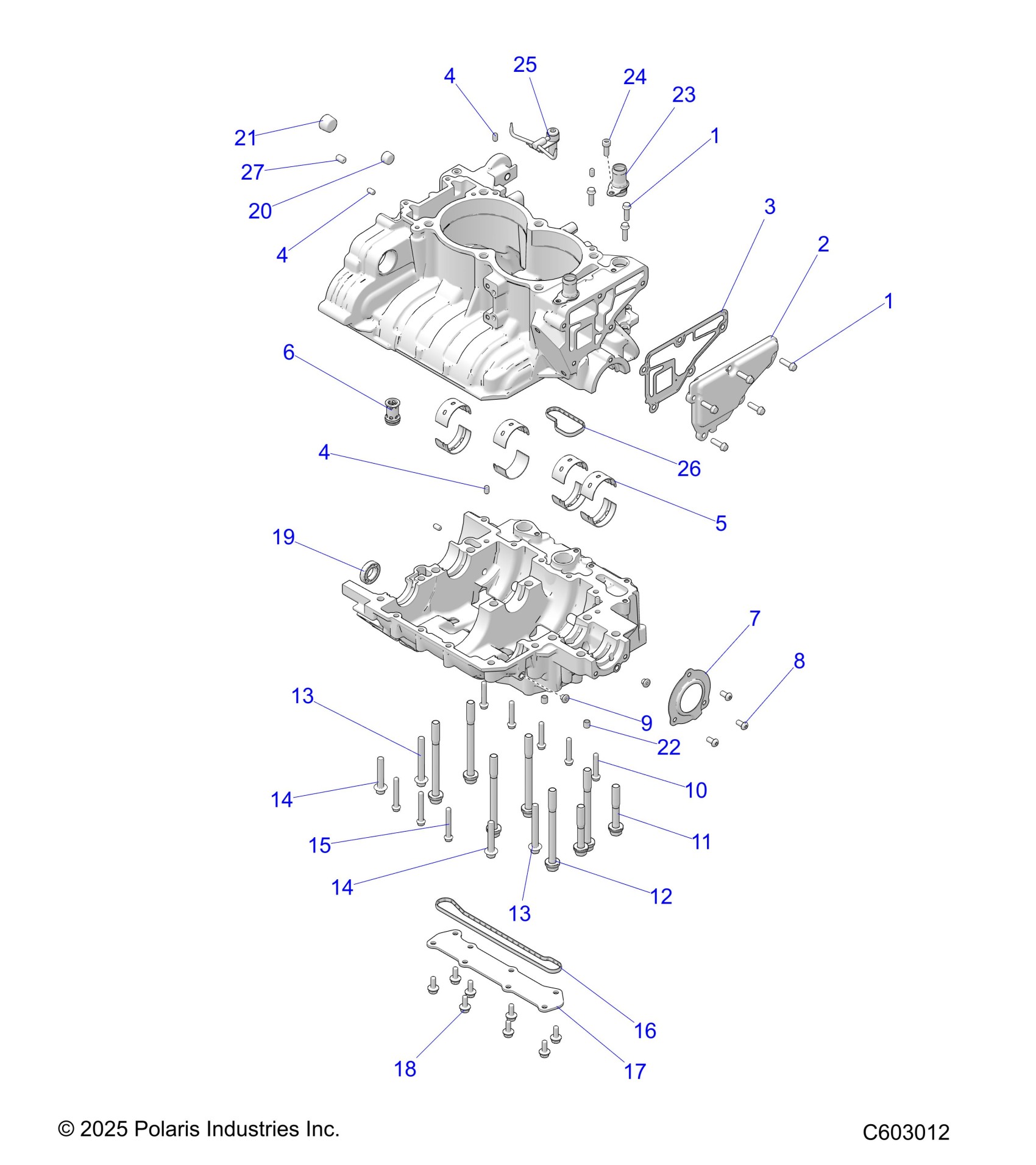

Polaris PROSTAR S4 INDY XC 137 ALL OPTIONS (R01) - S26TDP9FS ENGINE, CRANKCASE - S26TDP9FS (C603012) Diagram

#

Description
Price

-

K-CRANKCASE, PROSTAR S4 [INCL. 4,11,12,16-22]

2209319

$1,104.59

1

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

1

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

2

COVER-BREATHER,MACH

5144101

$31.99

3

GASKET-BREATHER,COVER

5417789

$43.99

4

PIN-DOWEL,M6X10

5143560

$9.59

4

PIN-DOWEL,M6X10

5143560

$9.59

4

PIN-DOWEL,M6X10

5143560

$9.59

5

bearing [SEE ENGINE, BALANCE SHAFT, CRANKSHAFT/PISTON PAGE]

-------

Unavailable

6

ASM-CHECK VALVE

7055628

$83.99

7

GUARD-SEAL,CRANKSHAFT

5266751

$39.99

8

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

9

PLUG-HEX SCKT,W/O-RING,M7X1

7052644

$7.27

10

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

11

SCR-HXFL-M10X1.25X65 10.9

7528116

$5.59

12

SCR-HXFL,M10X1.25X113MM 10.9

7527904

$23.99

13

SCR-HXFL-M8X1.25X65 10.9ACU

7520998

$5.59

13

SCR-HXFL-M8X1.25X65 10.9ACU

7520998

$5.59

14

SCR-HXFL-M8X1.25X45 10.9ACU

7520999

$7.19

14

SCR-HXFL-M8X1.25X45 10.9ACU

7520999

$7.19

15

SCR-HXFL-M8X1.25X45 10.9ACU

7519209

$3.99

16

SEAL-OIL GALLERY

5418090

$23.99

17

PLATE-OIL GALLERY

5272548

$47.99

18

Screw

7518112

$7.19

19

BEARING-BALL, 6903-C3

3515017

$11.99

20

PLUG-3/8 NPT,HX/SOC W/SEALANT

7052413

$3.99

21

PLUG-1/2-14 NPT

7051520

$8.79

22

DOWEL-HOLLOW M8X8

7662247

$27.78

23

FITTING-BREATHER

7052739

$27.99

24

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.99

25

JET, PISTON

3022856

$48.40

26

SEAL-OIL CHECK VALVE

5416739

$3.99

27

PLUG-ORIFICE,M8,1.0MM

7055656

$1.59
