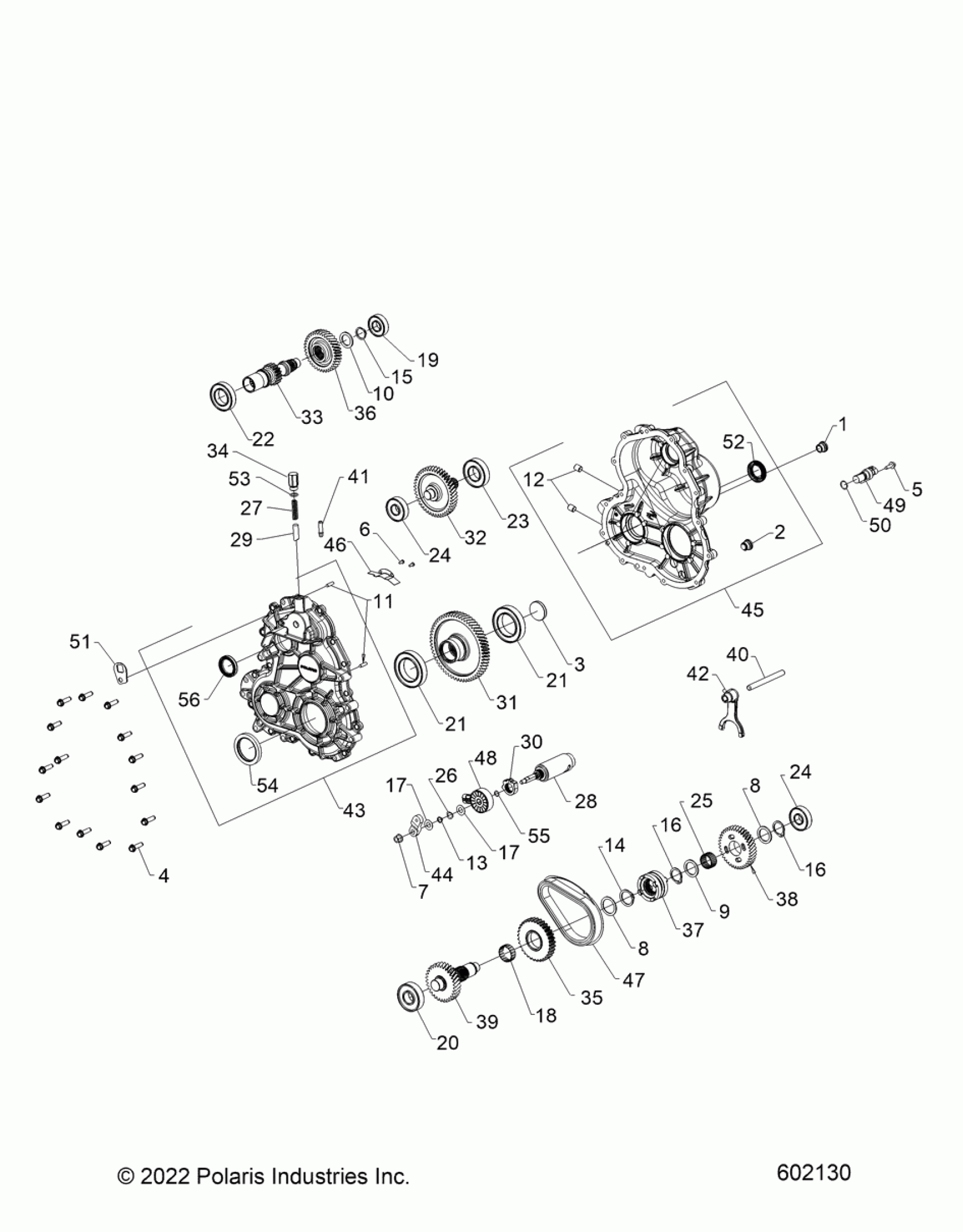

Polaris PROSTAR S4 INDY XC 137 ALL OPTIONS (R01) - S24TDP9FS DRIVE TRAIN, GEARCASE INTERNALS - S24TDP9FS (602130) Diagram

#

Description
Price

-

ASM-GEARCASE 2.175 HNR INCLUDES ALL

1337147

$2,574.99

1

PLUG, M18 X 1.5

3234755

$27.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

PLUG, EXPANSION , 1.662 X .276

3236086

$36.41

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

6

SOCKET-TRX PH M4X0.7X10(105523

3236301

$4.99

7

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

8

WASHER-32.3X42X1.5(115288)

3235211

$10.39

8

WASHER-32.3X42X1.5(115288)

3235211

$10.39

9

WASHER, 28.3 X 38 X 2.75

3236057

$19.99

10

WASHER, 24.3 X 35 X 2.75

3236058

$27.99

11

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

12

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

13

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

14

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

15

RING-RETAIN EXT24X1.75(130373)

3236060

$12.79

16

RING-RETAIN,EXT,28X2.4(130372)

3236059

$23.99

16

RING-RETAIN,EXT,28X2.4(130372)

3236059

$23.99

17

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

17

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

18

BEARING, NEEDLE

3233014

$43.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING

3233020

$47.99

21

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

21

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

22

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

23

BEARING-BALL 6206 C3 30X62X16

3233790

$27.99

24

BEARING BALL,6304STD 20X52X15

3234651

$15.99

24

BEARING BALL,6304STD 20X52X15

3234651

$15.99

25

BEARING-NEEDLE 28 x33 x17

3236061

$52.37

26

WASHER-SPRING,210393

3235327

$9.59

27

SPRING-COMPRESSION (210560)

3236063

$24.99

28

DRUM- SHIFT MACH

3236218

$144.99

29

BULLET DETENT

3234695

$31.99

30

STAR-DETENT

3236065

$40.46

31

GEAR-OUTPUT 59T

3236067

$274.99

32

GEAR-BRAKE 43T

3236068

$274.99

33

SHAFT-INPUT 17T

3236219

$339.99

34

PLUG, DETENT

3234715

$35.99

35

SPROCKET-REVERSE, 33T

3236071

$159.99

36

GEAR, 35T

3239508

$159.99

37

ENGAGEMENT DOG, 4 FACE

3236076

$119.99

38

GEAR-HIGH 40T (356247)

3239510

$189.99

39

SHAFT-MID 31T

3236221

$259.99

40

RAIL-SHIFT SHAFT

3236217

$28.32

41

TUBE-ROLLOVER VENT (356005)

3239330

$44.99

42

SUBASSY-SHIFT FORK

3236077

$76.89

43

SUBASSEMBLY-LH COVER

3239329

$639.99

44

BELLCRANK

3239363

$89.99

45

SUBASSEMBLY-RH CASE

3236222

$649.99

46

DEFLECTOR-OIL (431116)

3239331

$44.99

47

CHAIN-SILENT, 13W 44P

1332767

$131.99

48

SWITCH-ROTARY

3236084

$121.41

49

SENSOR, SPEED

3236697

$169.43

50

O-RING, -016 VITON

3236279

$7.19

51

BRACKET, BRAKE ISOLATOR

3239354

$29.99

52

SEAL, TRIPLE LIP 1.180X1.850X0.315 VITON

3235848

$31.99

53

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

54

SEAL, TRIPLE LIP 40 X 70 X 7

3233878

$32.37

55

O-RING, -012 VITON

3233836

$6.87

56

SEAL-35x47x8

3234307

$15.99
