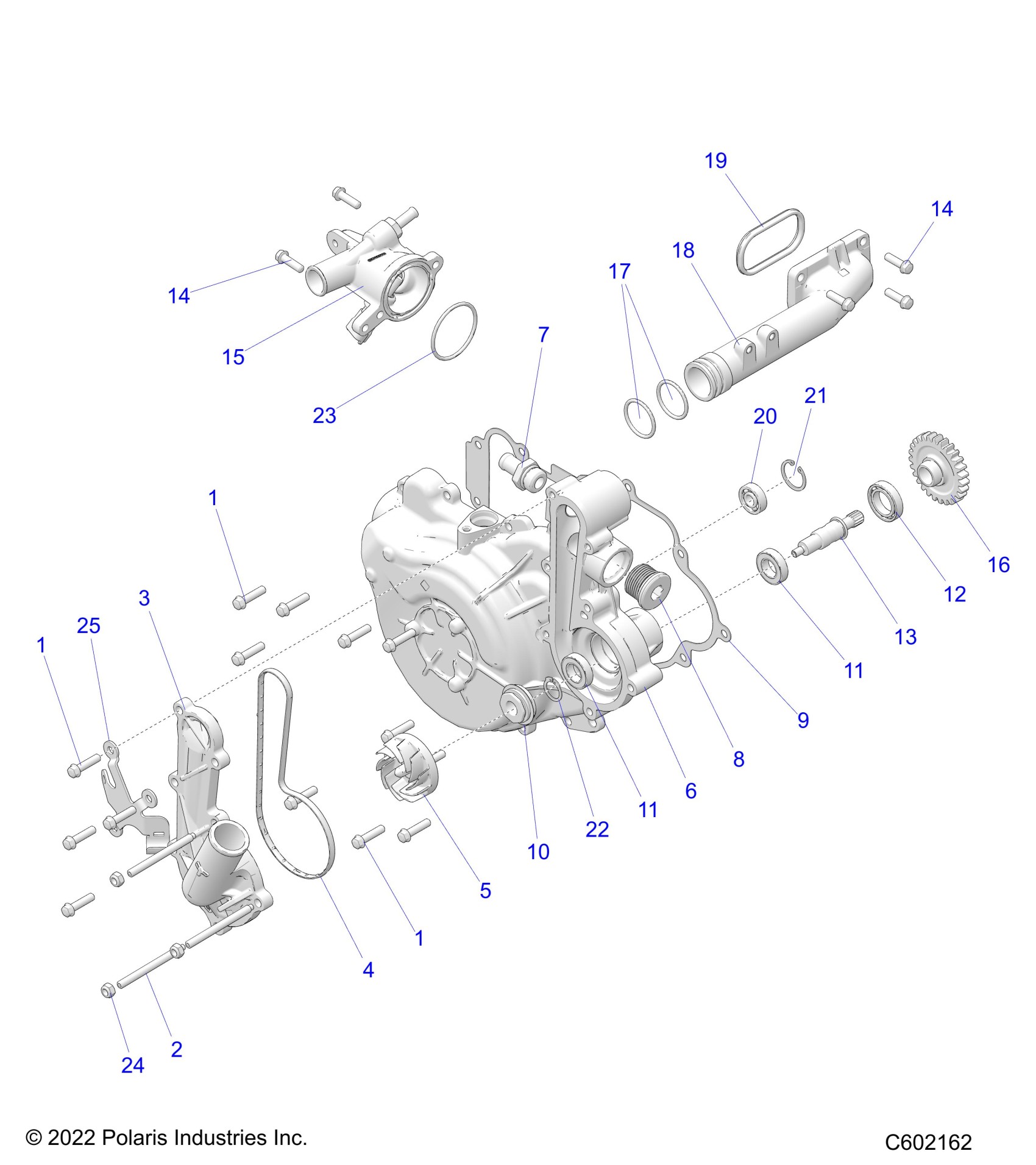

Polaris PROSTAR S4 INDY XC 129 ALL OPTIONS (R03) - S23TKP9FS ENGINE, COOLING SYSTEM/WATER PUMP - S23TKP9FS (C602162) Diagram

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

STUD-M6X1.0X70 8.8 ZTC

7527921

$12.79

COVER-WATERPUMP,MACH

5142189

$27.99

SEAL-WATERPUMP COVER

5416742

$7.19

IMPELLER-80MM

5144423

$15.99

K-IGNITION COVER, 999 SNOW INCL. 9-13,20-22

2209321

$344.99

FITTING-1/2" BARB 3/4-16 ORFS

7052729

$27.99

PLUG-M27X2 STOR,INTERNAL HEX

7052732

$20.22

GASKET-COVER,MAG

5814755

$28.32

SEAL-WATERPUMP SHAFT,WATER

3610173

Unavailable

BEARING [NON-SVC PART] MUST ORDER 2209321 K_IGNITION COVER

-------

Unavailable

BEARING [NON-SVC PART] MUST ORDER 2209321 K_IGNITION COVER

-------

Unavailable

BEARING-BALL,20X32X7

3515018

$19.99

SHAFT-WATERPUMP

5142205

$27.99

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

COVER-WATER OUTLET W/FITTINGS FOR SENSOR-THEMISTOR, SEE PAGE, ELECTRICAL, SWITCHES, SENSORS, COMPONENTS 2

1241349

$91.99

FITTING-1/2" BARB 3/4-16 ORFS

7052729

$27.99

FITTING-5/16"BARB 1/2-20 ORFS

7052730

$83.59

GEAR-WATER PUMP

6231122

$35.99

O-RING,28.24X2.62X33.48

5416762

$3.19

HOUSING-WATER IN,MACH

5142191

$31.99

GASKET-WATER,INLET

5813736

$24.27

BEARING-BALL,9X24X7

3514717

$8.79

RING-SNAP,DIN472,24X1.2MM

7710654

$23.99

RING-RTNG,EXT,14.7X1,0600096

7710499

$7.19

O-RING

5414591

$3.22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

BRKT-STARTER CABLE

5272280

$23.99
