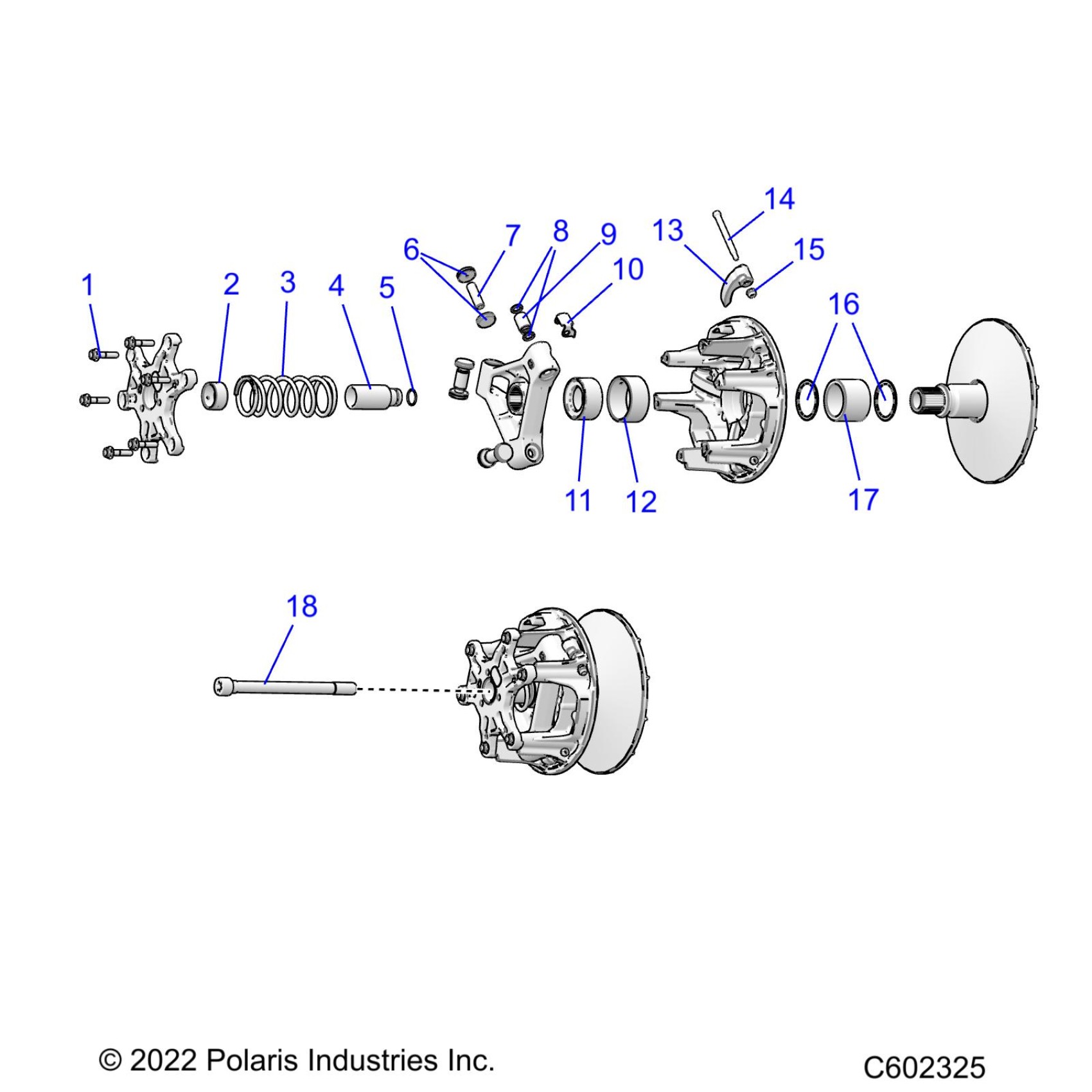

Polaris PROSTAR S4 INDY XC 129 ALL OPTIONS (R03) - S23TKP9FS DRIVE TRAIN, CLUTCH, PRIMARY - S23TKP9FS (C601758) Diagram

#

Description
Price

-

ASM-DRIVE CLUTCH BSC P22 [INCL. 1-3,4-12,14-18]

1327374

$704.99

1

SCR-M6X1.0X30,HXFL

7519036

$11.19

2

BUSHING-1.13X1.28X0.63,MU

3515173

$6.39

3

SPRING-CLUTCH,58-120

7044504

$27.99

4

POST-CLUTCH,OUTER,O-RING,RADI

5144854

$28.32

5

O-RING 1.0X17.5MM,90A

5418306

$2.38

6

BUTTON-CLUTCH,22MM,SCP

5457274

$8.08

7

PIN-SPIDER

5143585

$4.03

8

WASHER-CLUTCH,SPIDER ROLLER

5453844

$1.59

9

ASM-SPIDER ROLLER,P90X

1323717

$32.37

10

BRKT-WEAR CLIP WEIGHT

5272362

$5.65

11

SPACER-CLUTCH P22

5142986

$11.99

12

BUSHING-50X55X25,MU

3515174

$12.79

13

ASM-WEIGHT SHIFT (15-76)

1327216

$79.99

13

BUSHING-WEIGHT,1/4X7/8,DU

5453843

$6.39

14

BOLT-SHIFT WEIGHT,BUSHED

7520585

$5.59

15

NUT-10-24-FLEX LOC-Z

7541906

$3.19

16

WSHR-CLUTCH,40.5X49X0.8,SP-21

7557071

$16.99

17

BEARING-NEEDLE,40X50X35

3515043

$31.99

18

SCR-SH-M14X1.5X180 10.9 SPC ND

7528304

$34.99
