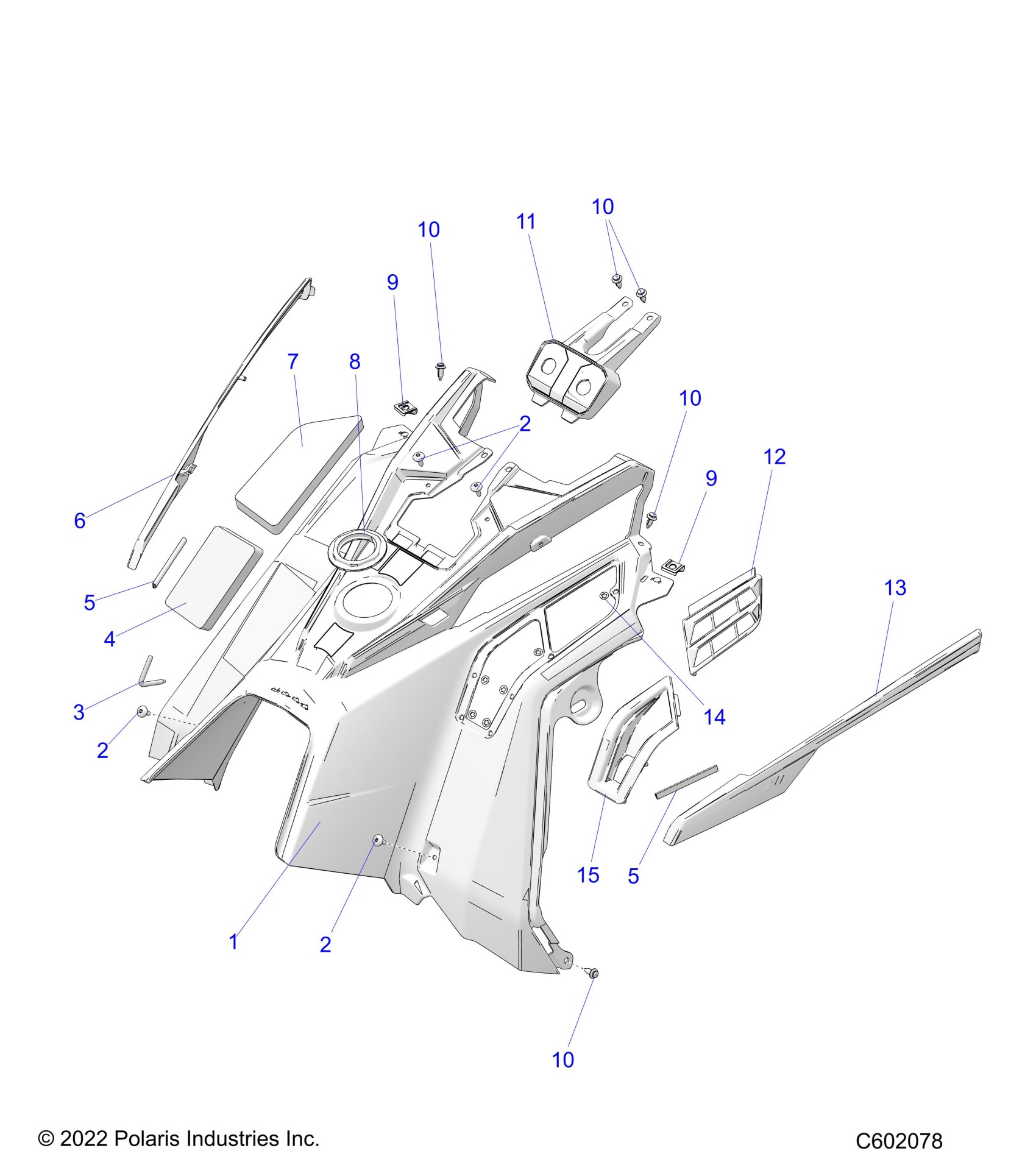

Polaris PROSTAR S4 INDY XC 129 ALL OPTIONS (R03) - S23TKP9FS BODY, CONSOLE - S23TKP9FS (C602078) Diagram

#

Description
Price

1

ASM-CONSOLE [INCL. 4,7,12,14,15, AND WARN. DECALS]

2638143

$251.73

2

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

2

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

2

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

3

TOOL-BELT REMOVAL

2883577

$9.59

4

FOAM-CONSOLE LOWER LH

5815023

$4.84

5

SEAL-BULB, .375, 350CM [BULK SVC LENGTH]

5521697-350

$40.46

5

SEAL-BULB, .375, 350CM [BULK SVC LENGTH]

5521697-350

$40.46

6

TRIM-CONSOLE LH IN-MLD CRSRBLK COLOR OPTION

5456441-266

$36.41

6

TRIM-CONSOLE LH IN-MLD INDYRED COLOR OPTION

5456441-293

$32.37

6

TRIM-CONSOLE LH IN-MLD WHTLGHT COLOR OPTION

5456441-599

$32.37

6

TRIM-CONSOLE LH IN-MLD GSTGRY COLOR OPTION

5456441-728

$32.37

7

FOAM-CONSOLE UPPER LH

5815022

$7.27

8

Nut, Filler Neck

5435156

$4.79

9

CLIP-1/4 TURN 6MM

7710808

$5.99

9

CLIP-1/4 TURN 6MM

7710808

$5.99

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

11

PANEL-CONSOLE SWITCH TETHER

5458445

$56.65

12

VENT-CONSOLE

5457103

$12.94

13

TRIM-CONSOLE RH IN-MLD CRSRBLK COLOR OPTION

5456442-266

$36.41

13

TRIM-CONSOLE RH IN-MLD INDYRED COLOR OPTION

5456442-293

$32.37

13

TRIM-CONSOLE RH IN-MLD WHTLGHT COLOR OPTION

5456442-599

$32.37

13

TRIM-CONSOLE RH IN-MLD GSTGRY COLOR OPTION

5456442-728

$32.37

14

RETAINER-BOLT,1/4-20

7670154

$1.49

15

POCKET-SHIFT LEVER

5457715

$36.41
