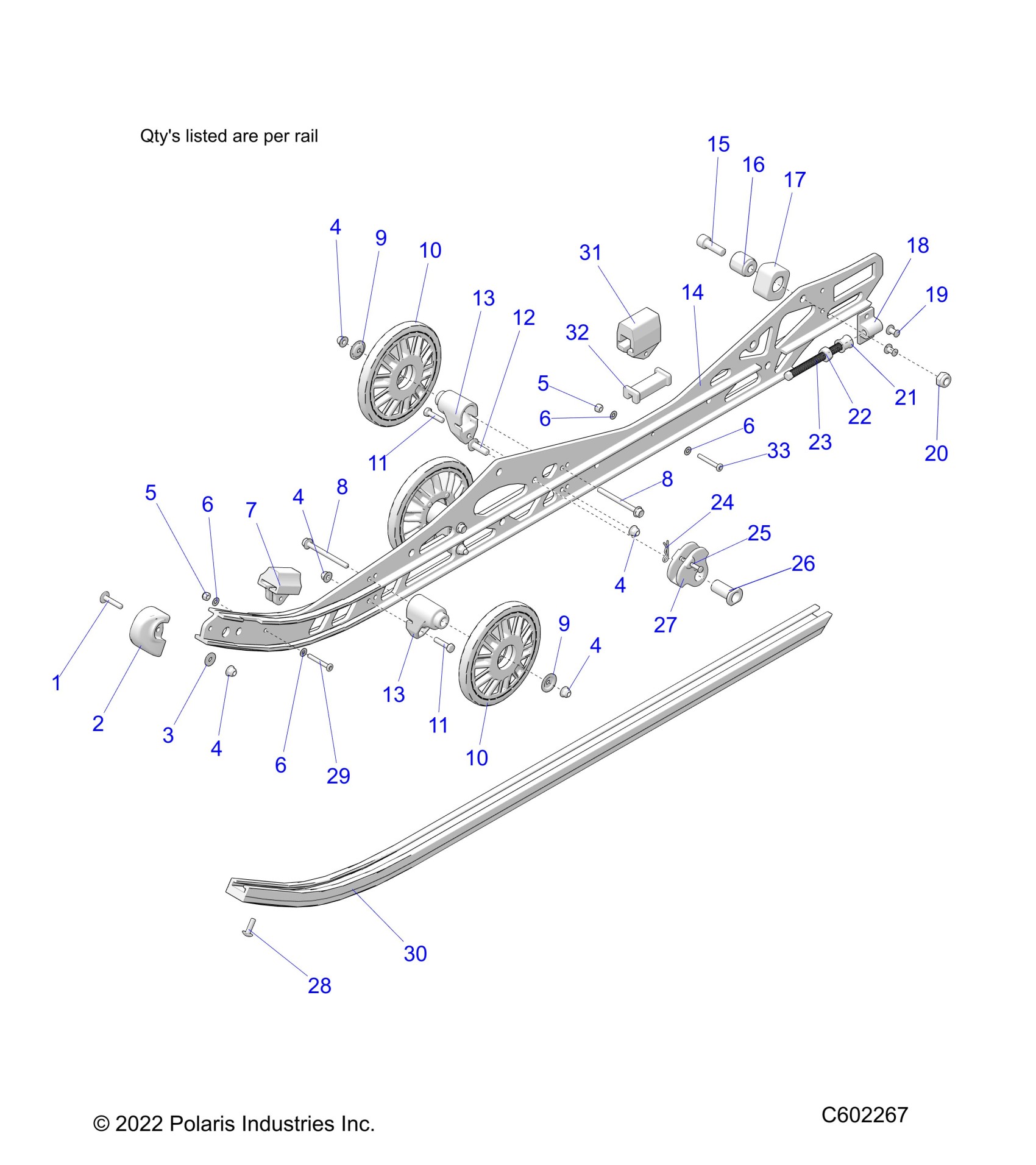

Polaris PROSTAR S4 INDY ADVENTURE X2 ALL OPTIONS (R02) - S23TDH9FS SUSPENSION, RAIL BEAM LH/RH - S23TDH9FS (C602267) Diagram

#

Description
Price

1

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

2

CAP, RAIL TIP

5452441

$16.99

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

NUT-NYLOC 10-24 Y

7541925

$1.49

5

NUT-NYLOC 10-24 Y

7541925

$1.49

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

BUMPER, JOUNCE, FRONT

5522253

$8.89

8

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

8

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3515142

$19.99

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3515142

$19.99

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

13

BLOCK-WHEEL MOUNT

5633278

$29.99

13

BLOCK-WHEEL MOUNT

5633278

$29.99

14

ASM-RAIL 137 PREM SVC LH BLK [COLOR OPTION[INCL.18,19]

1544450-067

$654.99

14

ASM-RAIL 137 PREM SVC RH BLK [COLOR OPTION[INCL.18,19]

1544451-067

$654.99

14

ASM-RAIL 137 PREM SVC LH IRED [COLOR OPTION[INCL.18,19]

1544450-293

$654.99

14

ASM-RAIL 137 PREM SVC RH IRED [COLOR OPTION[INCL.18,19]

1544451-293

$654.99

14

ASM-RAIL 137 PREM SVC LH PBLUE [COLOR OPTION[INCL.18,19]

1544450-751

$654.99

14

ASM-RAIL 137 PREM SVC RH PBLUE [COLOR OPTION[INCL.18,19]

1544451-751

$654.99

14

ASM-RAIL 137 PREM SVC LH NAT [COLOR OPTION[INCL.18,19]

1544450-309

$539.99

14

ASM-RAIL 137 PREM SVC RH NAT [COLOR OPTION[INCL.18,19]

1544451-309

$539.99

14

ASM-RAIL 137 PREM SVC LH ORGB [COLOR OPTION[INCL.18,19]

1544450-647

$654.99

14

ASM-RAIL 137 PREM SVC RH ORGB [COLOR OPTION[INCL.18,19]

1544451-647

$654.99

15

SCR-SH-M10X1.5X30 8.8 ZPB

7519844

$4.79

16

MOUNT-BUMPER METRIC

5136571

$9.70

17

BUMPER, PIVOT ARM

5410925

$12.94

18

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

19

RIVET

7621501

$2.39

20

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

21

SPACER-IDLER ADJ ALUM

5141837

$8.99

22

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

23

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

24

PIN-HITCH, 3/32-Y

7661644

$2.39

25

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

26

SHAFT-SPRING ROLLER

5144612

$10.51

27

GUIDE-SPRING SQUARE

5434334

$28.32

28

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

29

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

30

HI-FAX-146 BLK

5526364-070

$56.65

31

BUMPER-JOUNCE RTA

5418223

$34.99

32

LINER, BUMPER,LOW PROFILE

5451787

$6.99

33

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76
