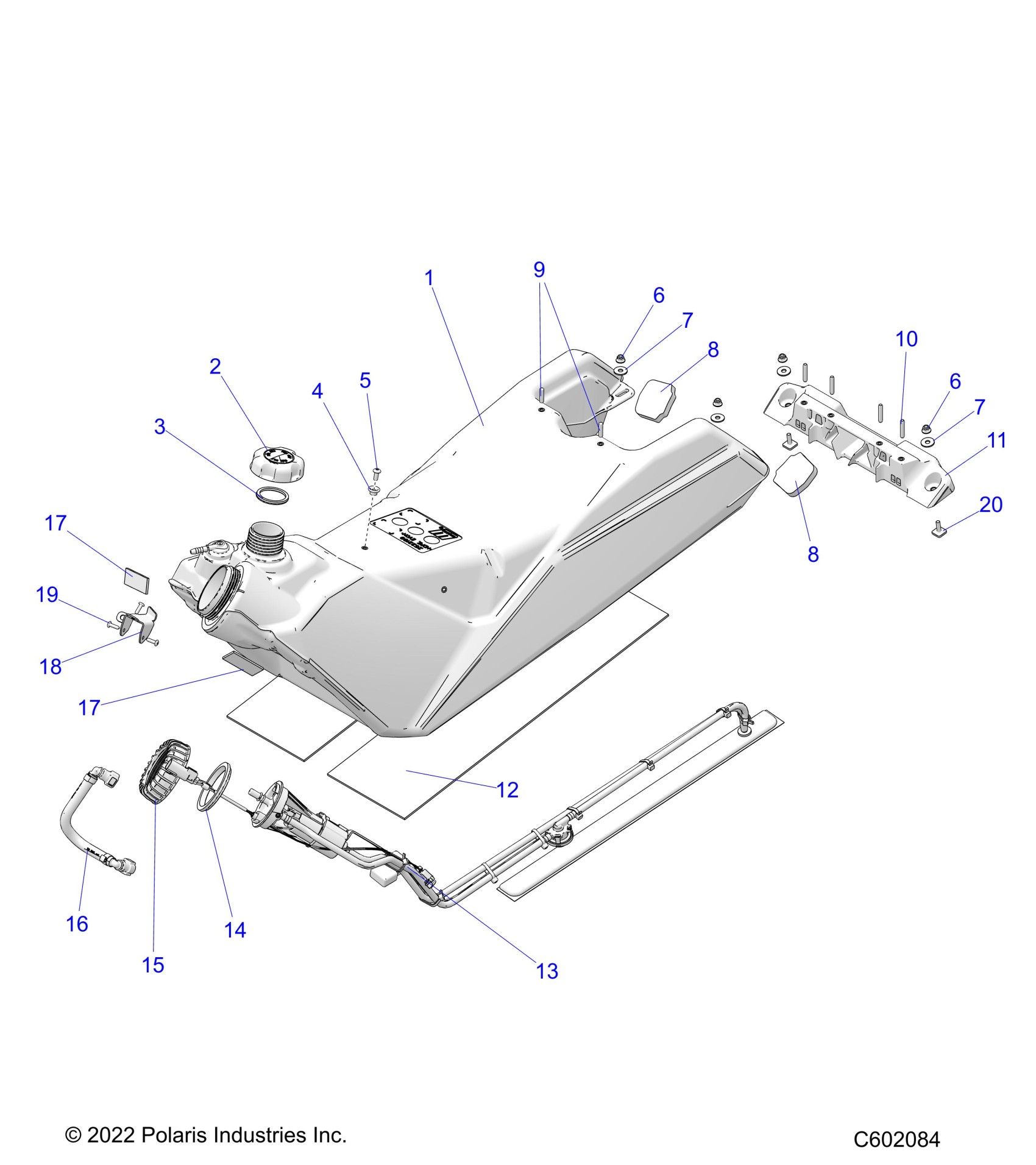

Polaris PROSTAR S4 INDY ADVENTURE X2 ALL OPTIONS (R02) - S23TDH9FS FUEL SYSTEM, FUEL TANK ASM. - S23TDH9FS (C602084) Diagram

#

Description
Price

1

ASM-FUEL TANK MACH

2522558

$529.99

2

CAP-GAS TANK

5450389

$20.22

3

O-Ring

5411174

$1.60

4

MOUNT-SEAT FRONT

5451185

$4.03

5

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

7

Washer

7555935

$2.39

7

Washer

7555935

$2.39

8

FOAM-TANK MOUNT

5815196

$4.84

8

FOAM-TANK MOUNT

5815196

$4.84

9

STUD-M6X1.0X25 8.8 ZOD

7520428

$10.39

10

STUD-M6X1.0X32 8.8 ZF

7527828

$7.19

11

ASM-FUEL TANK SUPPORT INCLUDES STUDS

1026480

$99.99

12

PAD-GAS TANK

5815007

$20.22

13

K-FUEL PUMP 4S

2209205

$739.99

13

K-PICK UP 650/850

2208145

$144.99

14

GASKET-PFA

5415105

$64.99

15

NUT-PFA

5436628

Unavailable

16

ASM-FUEL LINE SUPPLY 4S

2522620

$69.99

17

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$28.32

17

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$28.32

18

BRKT-FUEL TANK

5270560

$24.27

19

RIVET-3/16-.090-.290

7661637

$1.49

20

SCREW-SPL M6X1.0X20 8.8 ZOD

7520464

$3.99
