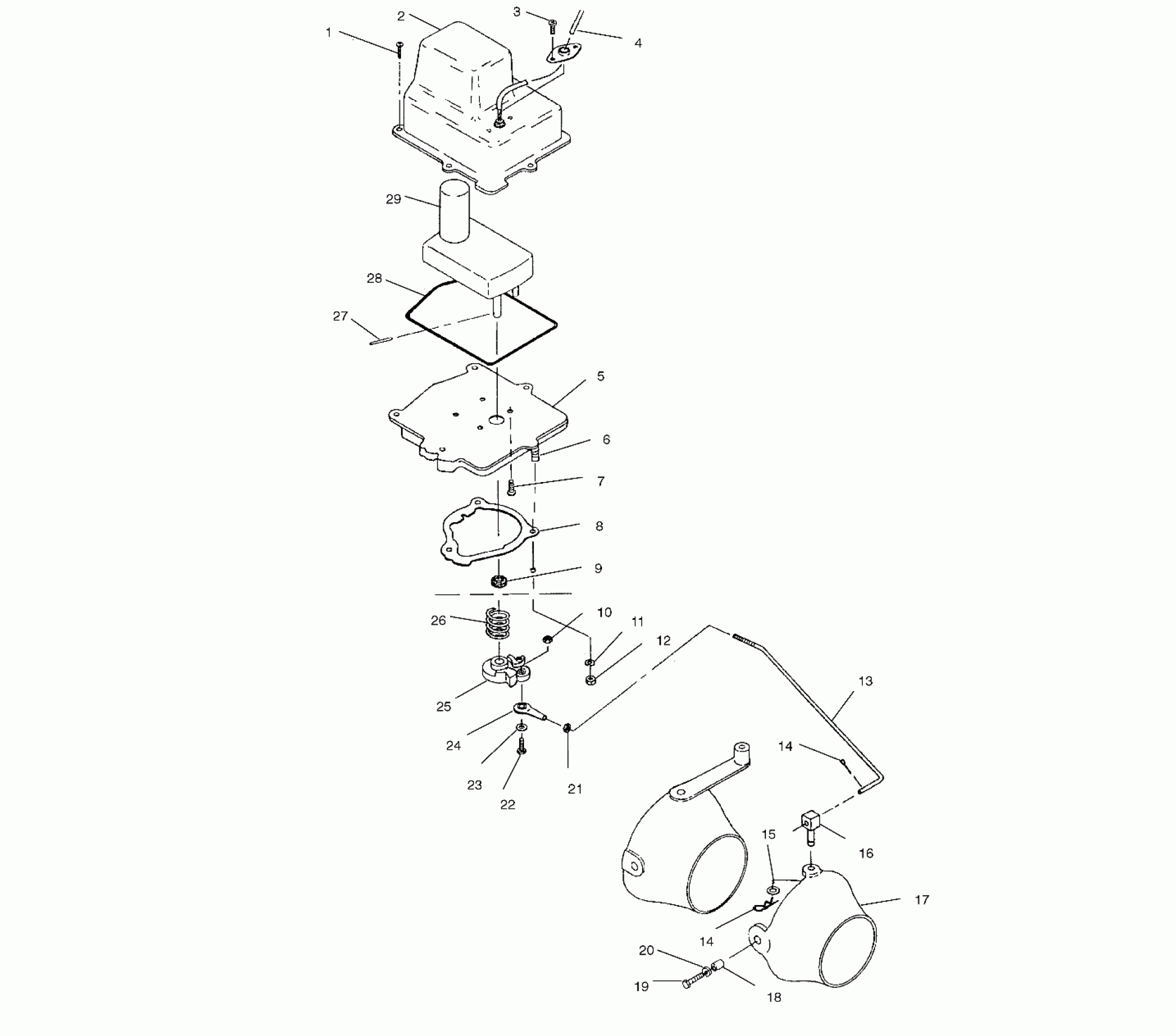

Polaris PRO 785 - W004978D TRIM PACKAGE - W004978I (4955795579B005) Diagram

#

Description

Price

1

SCREW(10)

7512052

Unavailable

2

COVER,TRIM MTR.

5431551

Unavailable

3

SCREW(10)

7511873

Unavailable

4

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

5

BASE,MOTOR

5630798

Unavailable

6

STUD,S.S.(10)

5131050

Unavailable

7

SCREW(10)

7511872

Unavailable

8

GASKET, MOTOR BASE

5810818

Unavailable

9

SEAL, OIL

3610042

Unavailable

10

NUT, HEX, S.S.(10)

7541931

$4.79

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

NUT,NYLOK,S.S.(10)

7542133

Unavailable

13

LINKAGE,THREADED

5224670

Unavailable

14

PIN, COTTER(10)

7661010

$1.49

14

PIN, COTTER(10)

7661010

$1.49

15

WASHER(10)

7555866

Unavailable

16

Swivel, Rod End (See Footnote) (See Propulsion Pg. B4, Ref. 29)

-------

Unavailable

17

NOZZLE,TRIM

5431765

Unavailable

18

Collar

5130938

Unavailable

19

BOLT, S.S.(10)

7515361

Unavailable

20

WASHER,FLAT,S.S.(10)

7555874

$2.39

21

NUT (10)

1860102

Unavailable

22

BOLT, S.S.(10)

7512041

Unavailable

23

WASHER, FLAT, S.S.(10)

7555837

Unavailable

24

ROD END, S.S.

7060154

Unavailable

25

LEVER,TRIM,HD

5432551

Unavailable

26

SPRING,TRIM,HVY.

7041469

Unavailable

27

PIN,DRIVE

7661646

Unavailable

28

O RING,MTR.COVER

5410756

Unavailable

29

GEARMOTOR ASM,6 RPM

4170018

Unavailable
