Description

Price

-

MOTOR ASM,STARTER (Incl. 1,3-15)

3240281

Unavailable

1

Bolt, Through

3240113

Unavailable

2

BOLT, FLANGE

3240062

Unavailable

3

Spring, Brush

3240111

Unavailable

4

BRUSH, COMPL. (Incl. 3-8)

3240115

Unavailable

5

O-RING

3084408

Unavailable

6

WASHER(10)

3240119

Unavailable

7

WASHER, SPRING(10)

3240117

Unavailable

8

NUT(10)

3240116

Unavailable

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

BRACKET ASM,REAR

3240207

Unavailable

11

WASHER, THRUST(10)

3240118

Unavailable

12

Washer, Thrust

3240112

Unavailable

13

ARMATURE ASM.

3240205

Unavailable

14

BRACKET ASM,FRONT Substituted by 3240281 (Incl. 15)

3240282

Unavailable

15

O-Ring

3240114

$5.59

16

WASHER Substituted by 7555908

3240134

Unavailable

16

WASHER Substituted by 7555908

3240134

Unavailable

17

SNAP RING

3240126

Unavailable

18

Stopper

3240125

Unavailable

19

Cover

3240123

Unavailable

20

SPRING

3240124

Unavailable

21

GEAR ASM. Substituted by 3240120

3240122

Unavailable

22

SHAFT COMPL.

3240121

Unavailable

22

GEAR ASM (Incl. 17-21)

3240345

Unavailable

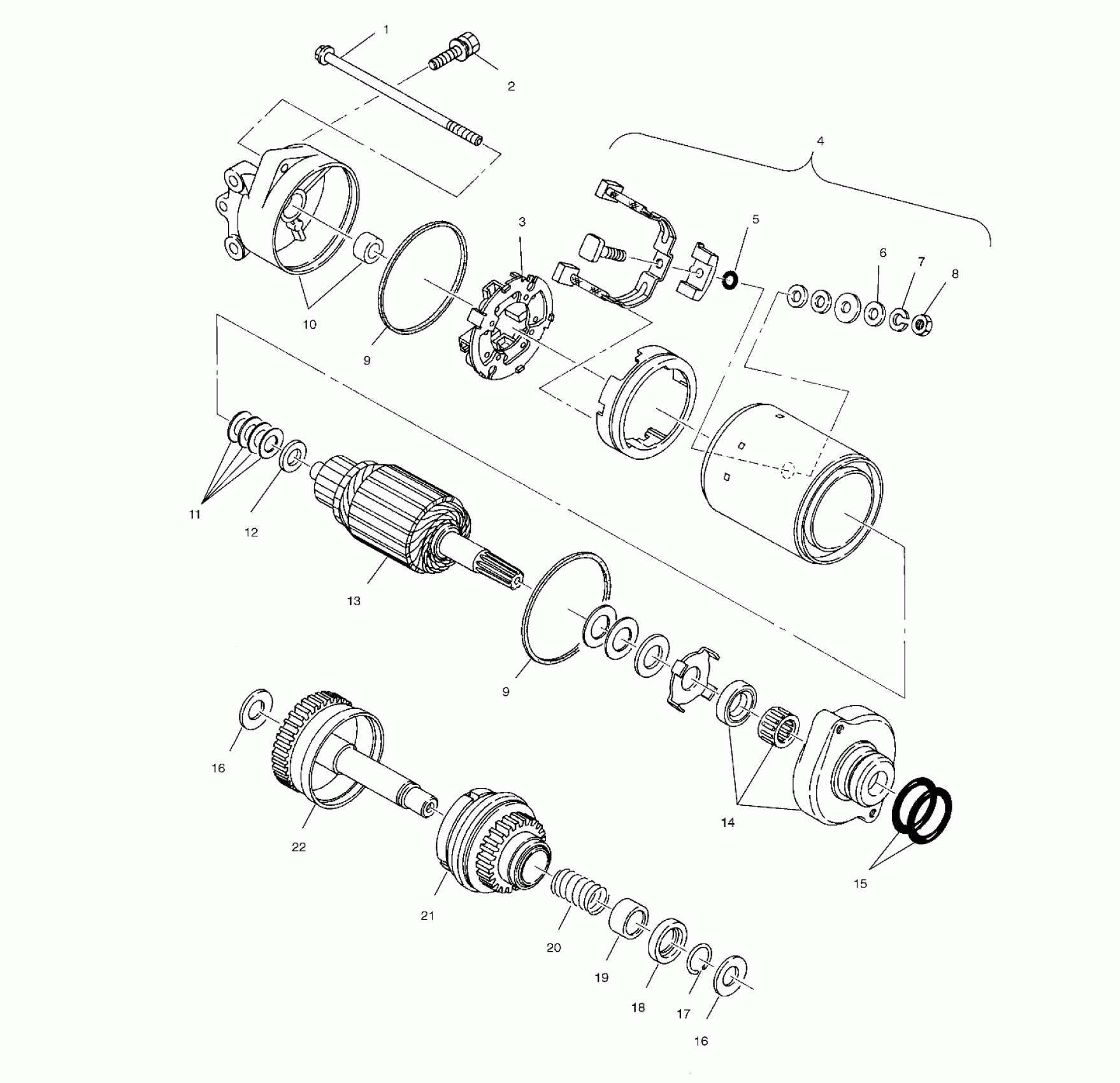

Polaris PRO 785 - W004978D STARTING MOTOR - W004978D (4955795579C009) Diagram

MOTOR ASM,STARTER (Incl. 1,3-15)

Bolt, Through

BOLT, FLANGE

Spring, Brush

BRUSH, COMPL. (Incl. 3-8)

O-RING

WASHER(10)

WASHER, SPRING(10)

NUT(10)

RING, RUBBER

RING, RUBBER

BRACKET ASM,REAR

WASHER, THRUST(10)

Washer, Thrust

ARMATURE ASM.

BRACKET ASM,FRONT Substituted by 3240281 (Incl. 15)

O-Ring

WASHER Substituted by 7555908

WASHER Substituted by 7555908

SNAP RING

Stopper

Cover

SPRING

GEAR ASM. Substituted by 3240120

SHAFT COMPL.

GEAR ASM (Incl. 17-21)
