HULL and BODY - W004978D (4955795579A005)

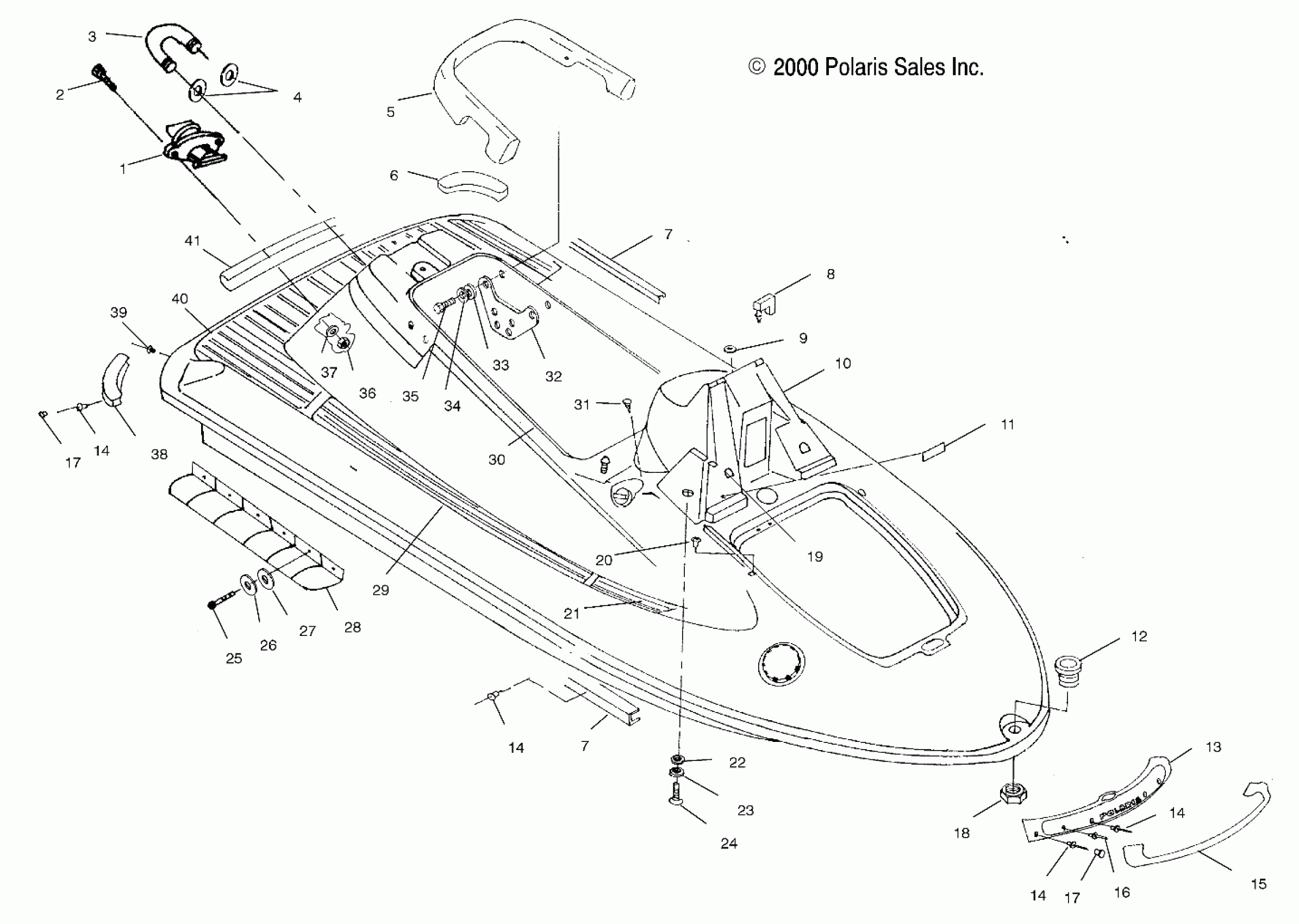

Polaris PRO 785 - W004978D HULL and BODY - W004978D (4955795579A005) Diagram
#
1
PLUG ASM,BILGE
1060125
Unavailable
2
BOLT, SS.(10)
7512045
$4.99
3
U-BOLT ASM.
1060126
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
5
HANDLE,GRAB,BLK.
5431392-070
Unavailable
6
BUMPER,LH,CORNER,BLK
5432582-070
Unavailable
7
RAIL,RUB,RH,SIDE,BLK.
5521474-070
Unavailable
7
RAIL,RUB,LH,SIDE,BLK.
5521473-070
Unavailable
7
RAIL,RUB,RH,SIDE,BLK.
5521474-070
Unavailable
7
RAIL,RUB,LH,SIDE,BLK.
5521473-070
Unavailable
8
BUMPER,CORNER
5431740
Unavailable
9
GROMMET
5410720
$5.75
10
POD,STRG,NOTCHED,BLK.MET.
5433124-177
Unavailable
11
DECAL,RECOM.OIL,PREMIUM
7077480
Unavailable
12
GROMMET,BOW EYE,BLK.
5431950-070
Unavailable
13
BUMPER,FR,SHORT,W/BRA,BLK
5411386-070
Unavailable
14
RIVET,(50)
7621488
$3.99
14
RIVET,(50)
7621488
$3.99
14
RIVET,(50)
7621488
$3.99
14
RIVET,(50)
7621488
$3.99
15
BRA,SPLASH
2690148
Unavailable
16
RIVET(50)
7621462
$1.49
17
PLUG,(10)R.BUMP,BLK
5431994-070
Unavailable
17
PLUG,(10)R.BUMP,BLK
5431994-070
Unavailable
18
NUT,BOW EYE,BLK.
5431951-070
Unavailable
19
Grommet, Vent
5410682
Unavailable
20
BUMPER,DECK
5431741
Unavailable
21
PAD,F.F'WELL,GRV,BLK.
5811477-070
Unavailable
22
WASHER,S.S.(10)
7555891
Unavailable
23
WASHER, LOCK, S.S.(10)
7555838
Unavailable
24
SCREW,DRILOCK
7517439
Unavailable
25
SCREW,(10)
7515198
Unavailable
26
WASHER, FLAT, S.S.(10)
7555839
Unavailable
27
WASHER,(10)
5811440
$2.07
28
SPONSON,LH,BLK.
5432467-070
Unavailable
28
SPONSON,RH,BLK.
5432468-070
Unavailable
29
PAD,CTR.F'WELL,GRV,BLK
5811478-070
Unavailable
30
SEAL, SEAT
5521371
Unavailable
31
CLIP, XMASTREE(10)
7080514
Unavailable
32
BRKT,VALVE ACT.SS,FLAT (See Actuator Pg. C10)
5242318
Unavailable
33
WASHER, LOCK, S.S.(10)
7552610
Unavailable
34
WASHER, FLAT, S.S.(10)
7555831
Unavailable
35
BOLT, S.S.(10)
7515357
Unavailable
36
NUT, HEX, S.S.(10)
7541931
$4.79
37
WASHER, FLAT, S.S.(10)
7555837
Unavailable
38
BUMPER,RH,CORNER,BLK
5432583-070
Unavailable
39
RIVET,(50)
7621492
Unavailable
40
PAD,R.F'WELL,W/O TOW,BLK
5811453-070
Unavailable
41
RAIL,RUB,R.SMOOTH,BLK
5521412-070
Unavailable
