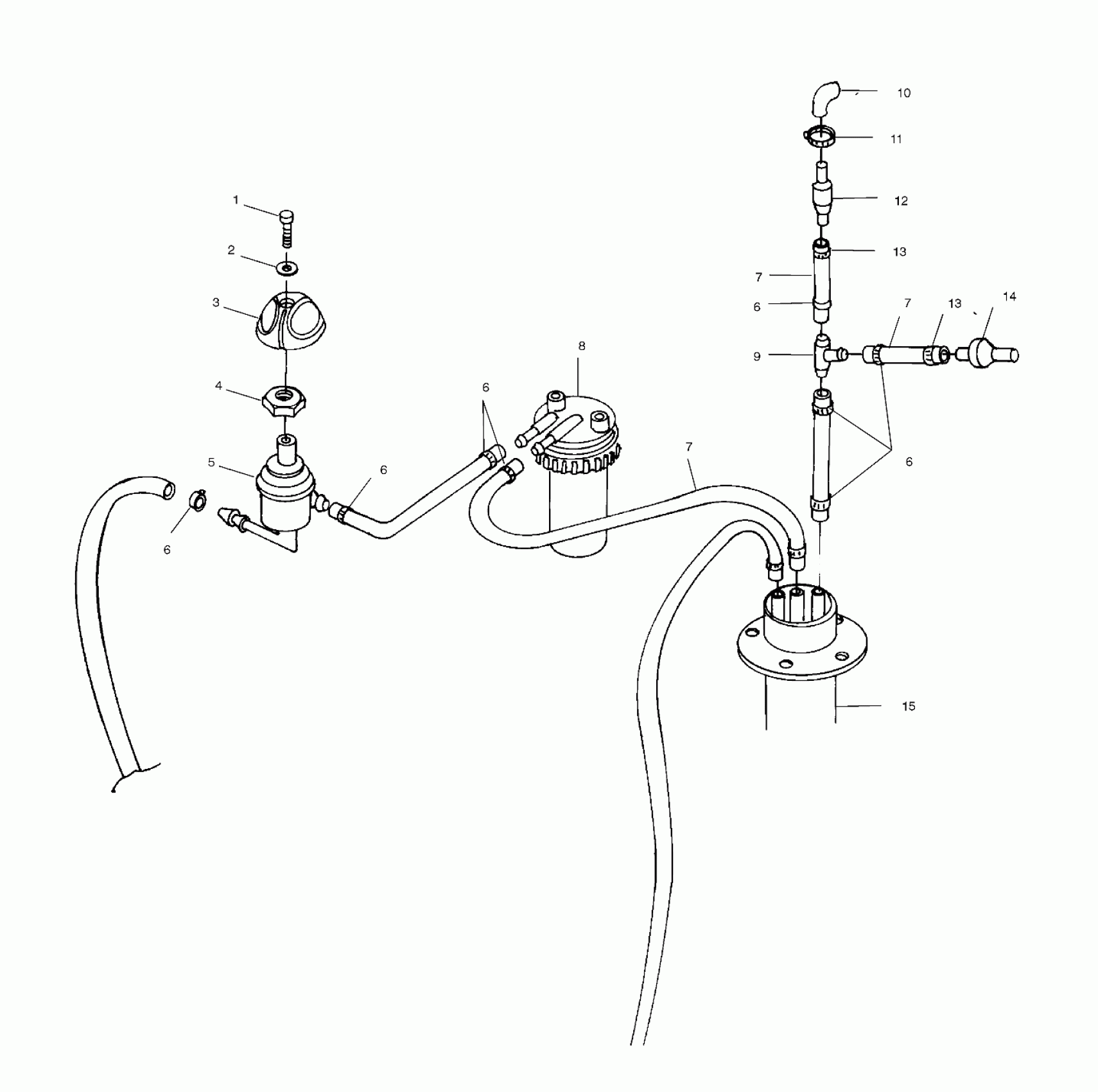

Polaris PRO 785 - W004978D FUEL SYSTEM - W004978D (4955795579A010) Diagram

#

Description
Price

1

SCREW, S.S.(10)

7516302

$3.99

2

WASHER, FLAT, S.S.(10)

7555840

$3.35

3

KNOB,FUELVALVE,BLK.

5432836-070

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

VALVE,ON/OFF,180DEG,PORTS

7052166

Unavailable

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

Separator, Fuel/Water (See Fuel/Water Separator Pg. C11, Ref. 1)

-------

Unavailable

9

FITTING,TEE

7052111

Unavailable

10

Grommet, Vent

5410682

Unavailable

11

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

12

VALVE,CHECK,RELIEF

7051015

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

VALVE,VACUUM CHECK

7052118

Unavailable

15

Asm., Sender/Pick-Up (See Fuel Tank Pg. A9, Ref. 13)

-------

Unavailable
