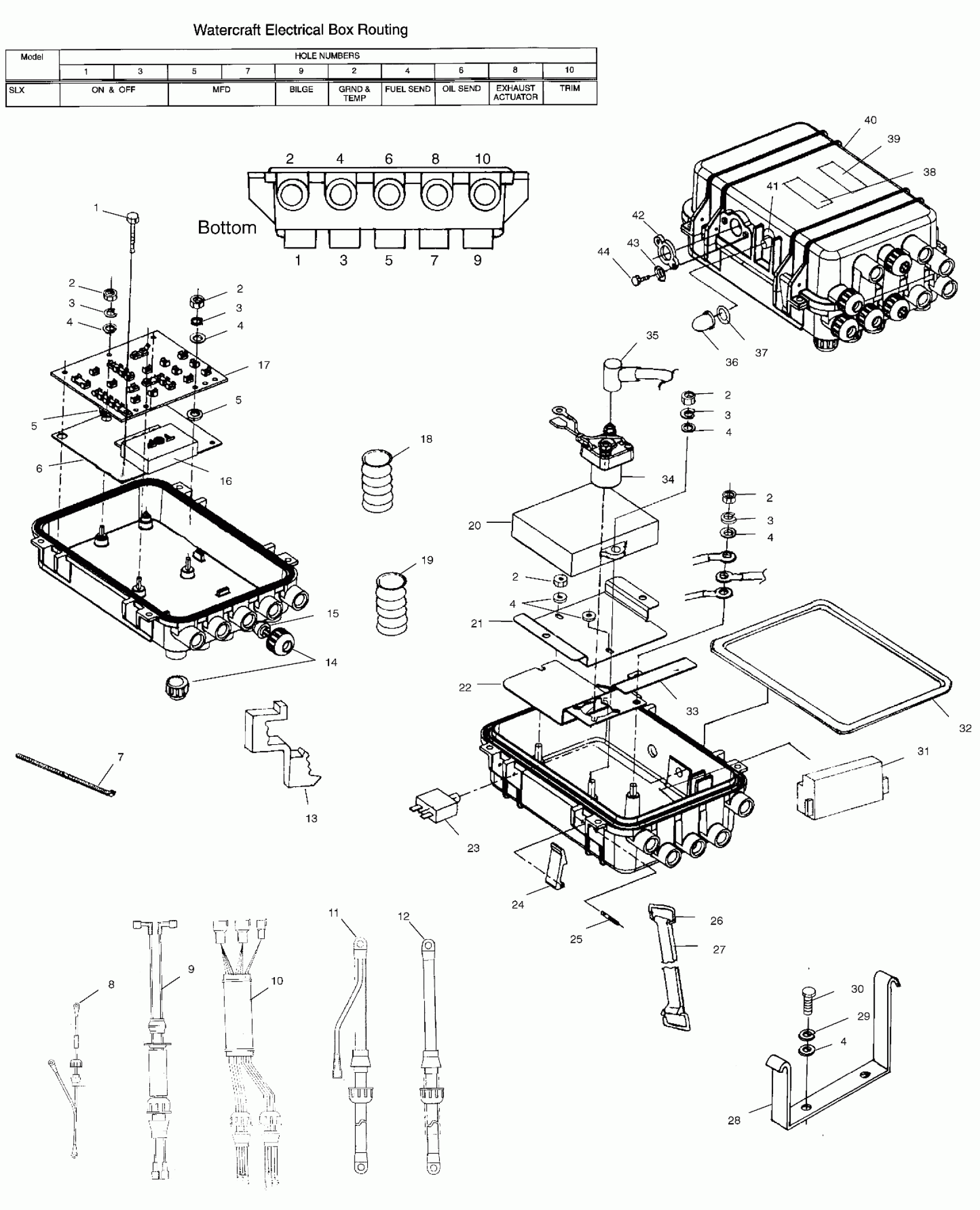

Polaris PRO 785 - W004978D ELECTRICAL BOX - W004978I (4955795579B011) Diagram

#

Description
Price

1

SCREW,S.S.(10)

7512072

$0.40

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

5

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER,RUBBER(10)

7555870

$0.40

6

PLATE,BTM,E-BOX

5211761

$9.05

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

HARNESS,WIRE,GND,EL.BOX

2460621

Unavailable

9

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

10

HARNESS,10 WIRE

2460616

$83.71

11

CABLE,BATT/SOL,RED

4010126

$22.75

12

CABLE,GND,BATT/ENG.

4010125

$23.41

13

T-CLIP(10)

7080471

$3.57

14

CAP,GROMMET,ELEC.BOX

5432502

$2.62

15

GROMMET,1 HOLE,LARGE

5411213

Unavailable

16

REGULATOR-RECT/CUTOFF-LR31-2

4010302

Unavailable

17

TERM.BOARD ASM,MFD

2434014

Unavailable

18

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

19

CONDUIT,FLEX,1.250ID Substituted by 5521287-132

5521287-63

Unavailable

20

CDI System (See Magneto Pg. C8, Ref. 8)

----

Unavailable

21

BRKT,RETAINER,CDI

1060137

$22.75

22

PLATE,TOP,E-BOX

5211760

$8.17

23

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

24

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

25

PIN,LATCH,ELEC.BOX

5333544

$10.46

26

HOOK,'D',SST/SS,(10)

5224472

Unavailable

27

STRAP-BATTERY

5430621

Unavailable

28

CRADLE,ELECT,PWC,AGR

5241845

Unavailable

29

WASHER, LOCK, S.S.(10)

7555838

Unavailable

30

BOLT(10)

7515127

Unavailable

31

Coil, Ignition (See Magneto Pg. C8, Ref. 7)

----

Unavailable

32

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

33

BRKT,COIL/SOL.(780ENG)

5242471

Unavailable

34

Switch, Magneto (See Magneto Pg. C8, Ref. 9)

----

Unavailable

35

INSULATOR-CABLE

5410346

$7.73

36

BOOT,THREADED,RED

7080461

$13.99

37

O-Ring

5411491

$1.03

38

DECAL,WARN.ELEC.OPER.

7073712

Unavailable

39

DECAL,WARN,HI.VOLT.

7073713

Unavailable

40

ELECTRICAL BOX,PLASTIC 780,ASM. (Incl. 24,25,32)

2632138

$98.41

41

DECAL,ELECT.BOX RESET

7073734

Unavailable

42

PLATE,STATOR,1 HOLE

5432574

$6.59

43

WASHER(10)

7555836

$3.99

44

BOLT,SS,(10)

7515113

Unavailable
