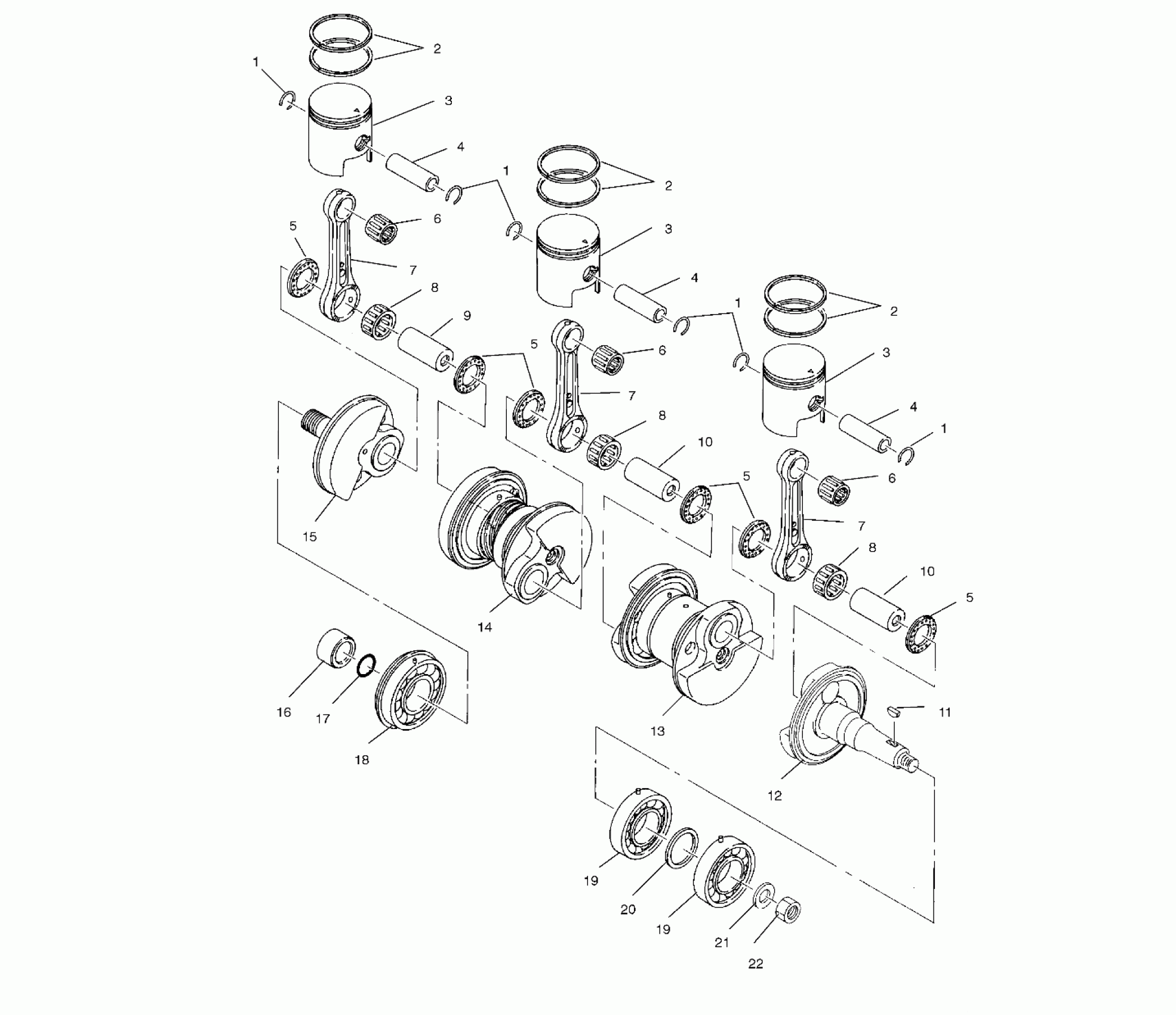

Polaris PRO 785 - W004978D CRANKSHAFT & PISTON - W004978D (4955795579C004) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING,PISTON,STD

3240332

Unavailable

2

RING,PISTON,STD

3240332

Unavailable

2

RING,PISTON,STD

3240332

Unavailable

3

PISTON,STD

3240329

Unavailable

3

PISTON,STD

3240329

Unavailable

3

PISTON,STD

3240329

Unavailable

4

PIN,PISTON

3085596

Unavailable

4

PIN,PISTON

3085596

Unavailable

4

PIN,PISTON

3085596

Unavailable

5

SPACER(CRANKPIN)

3083277

$15.87

5

SPACER(CRANKPIN)

3083277

$15.87

5

SPACER(CRANKPIN)

3083277

$15.87

5

SPACER(CRANKPIN)

3083277

$15.87

6

BEARING,SMALL END

3085595

$16.57

6

BEARING,SMALL END

3085595

$16.57

6

BEARING,SMALL END

3085595

$16.57

7

ROD,CONNECTING

3240326

Unavailable

7

ROD,CONNECTING

3240326

Unavailable

7

ROD,CONNECTING

3240326

Unavailable

8

BEARING,LARGE END

3085628

$31.75

8

BEARING,LARGE END

3085628

$31.75

8

BEARING,LARGE END

3085628

$31.75

9

PIN, CRANK

3240085

Unavailable

10

PIN-CRANK 2

3083254

Unavailable

10

PIN-CRANK 2

3083254

Unavailable

11

KEY,WOODRUFF

3085597

Unavailable

12

CRANKSHAFT ASM (Incl. 5,7-10,12-15,18-20)

3240320

Unavailable

12

CRANKSHAFT 1,MAG SIDE (MAG Side)

3240321

Unavailable

13

CRANKSHAFT,CENTER (Incl. 5,7-10,13,14)

3240322

Unavailable

13

CRANKSHAFT,MAG SIDE (MAG Side)(Incl. 10)

3240323

$458.63

14

CRANKSHAFT,PTO SIDE Substituted by 3240322 (PTO Side)(Incl. 9)

3240324

Unavailable

15

CRANKSHAFT 3,PTO SIDE (PTO Side)

3240325

$103.18

16

RING,WEAR

3240327

$77.78

17

O-RING

3240328

Unavailable

18

BEARING, BALL

3084545

Unavailable

19

BEARING, BALL

3084544

Unavailable

19

BEARING, BALL

3084544

Unavailable

20

SPACER

3240088

$12.99

21

WASHER

3085598

$12.99

22

NUT

3083093

$19.84
